Diaphane

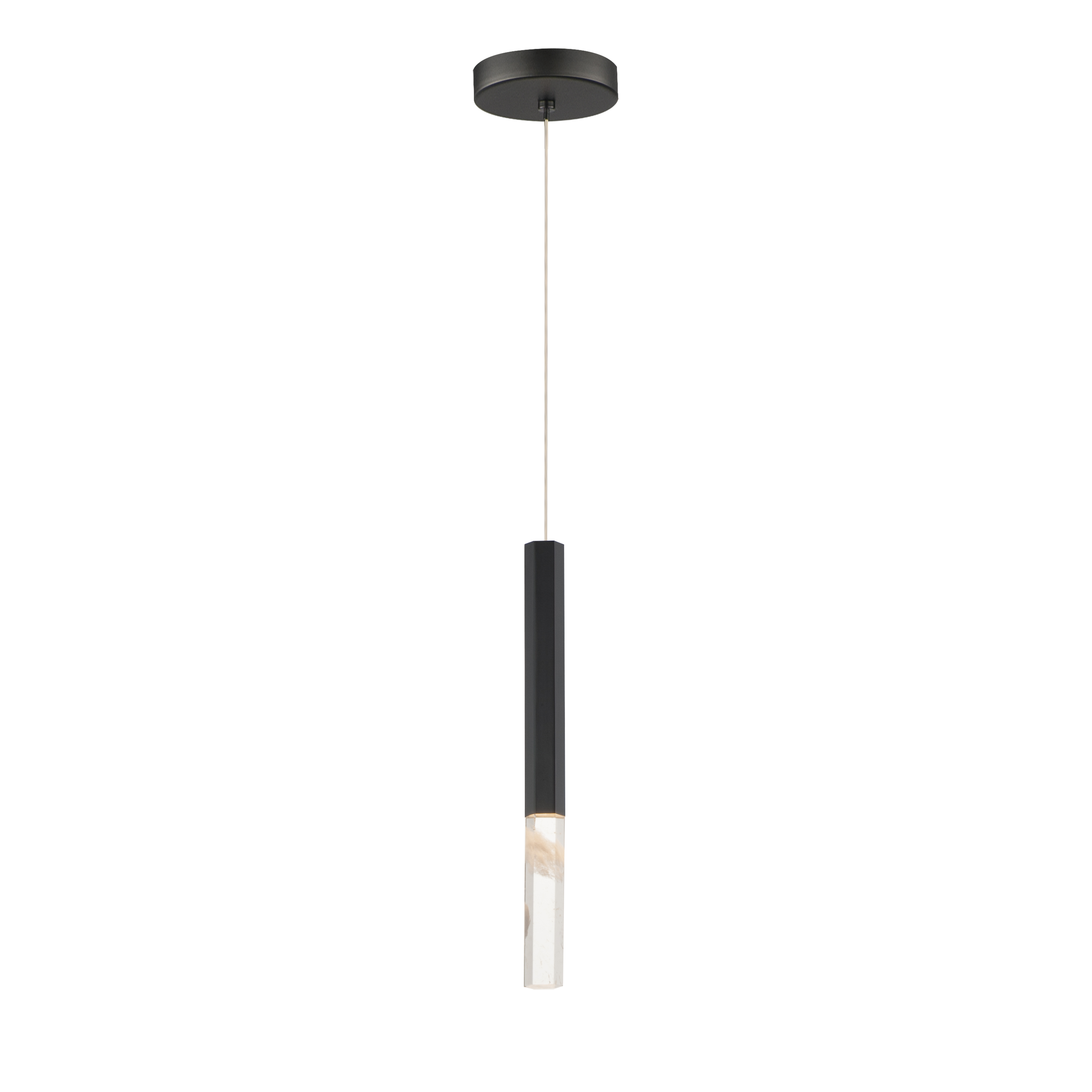

LED 1-Light Pendant
Diaphane
Model: SM151020CYBK
Sizing: L1.5" x W1.5" x H15.75"
Price: $193.00

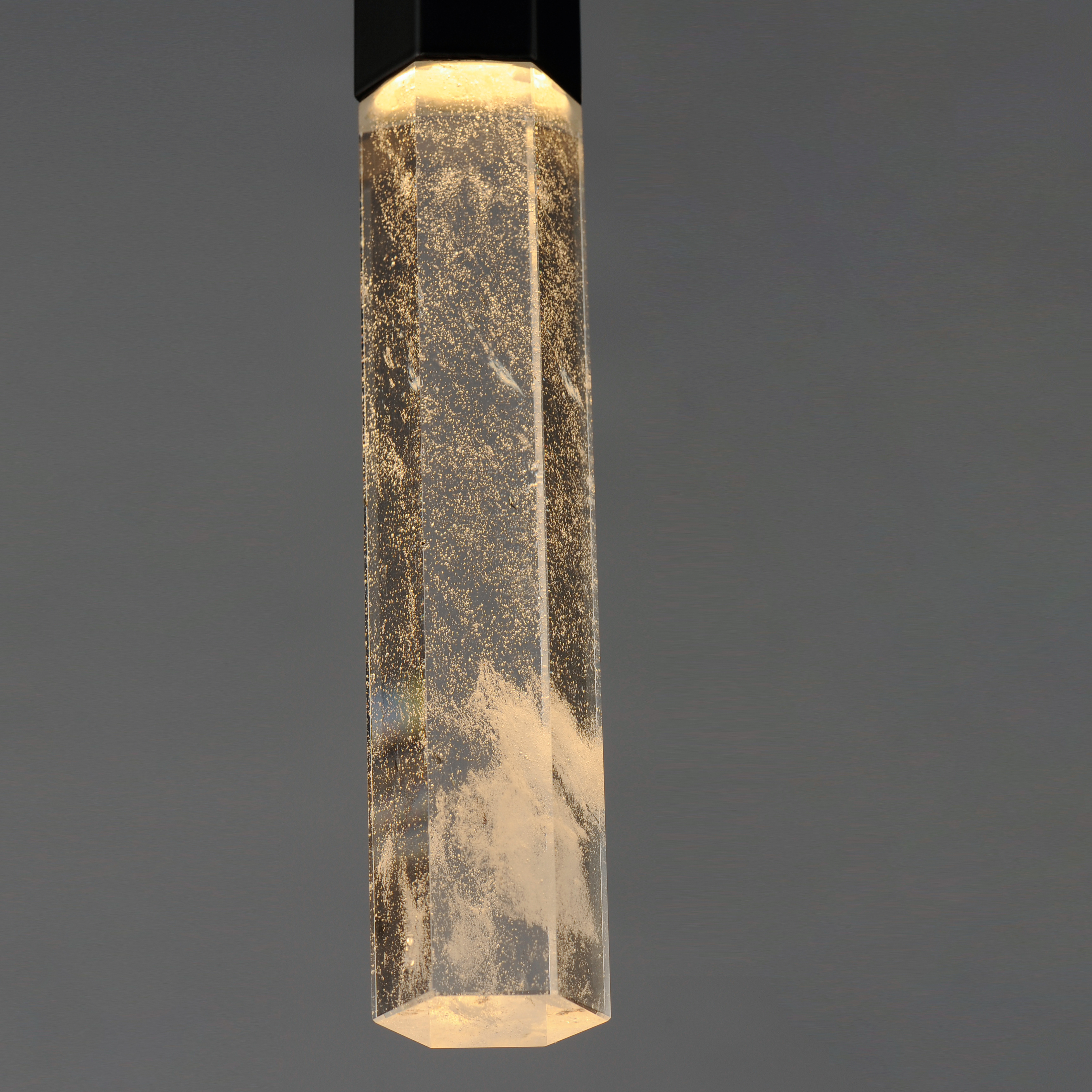

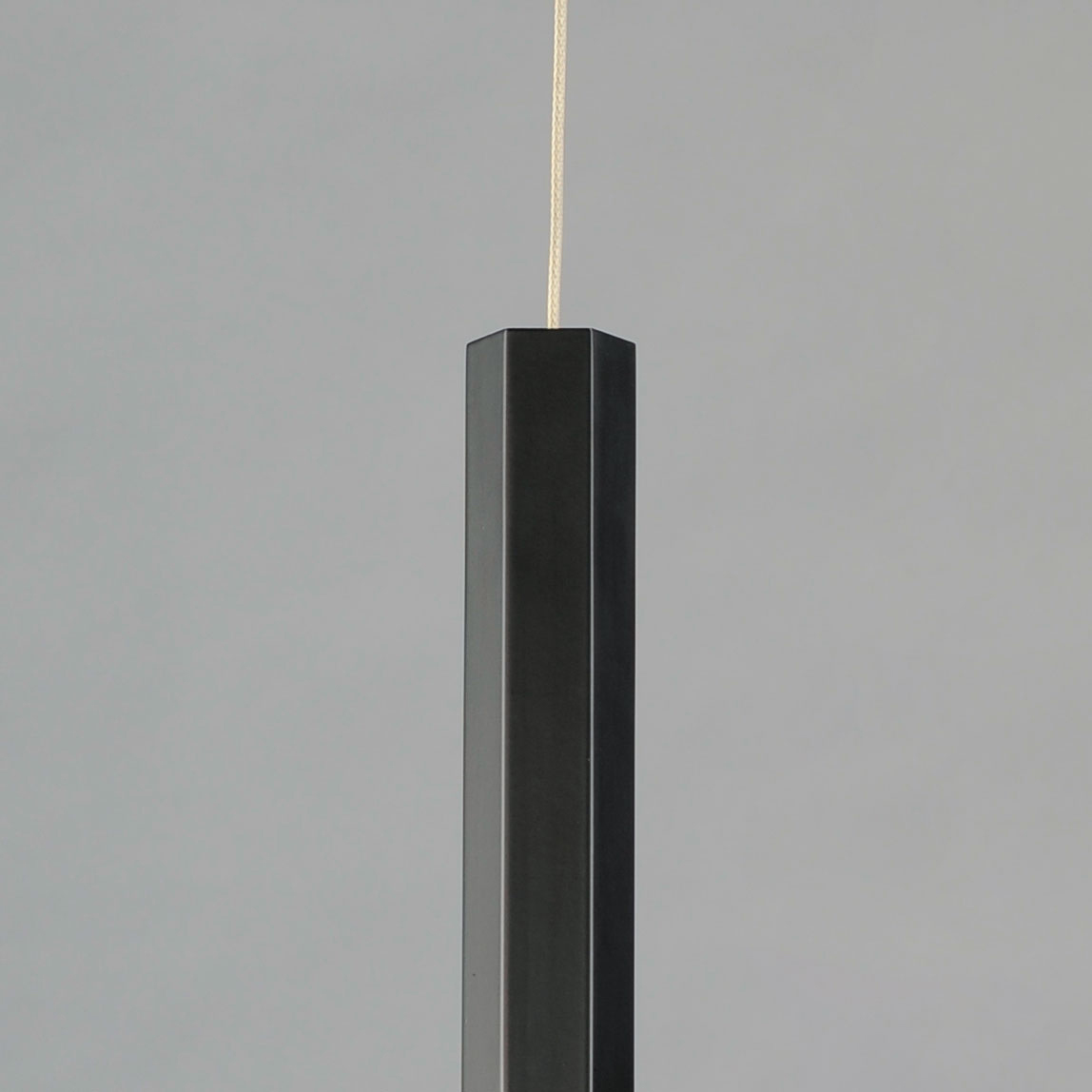

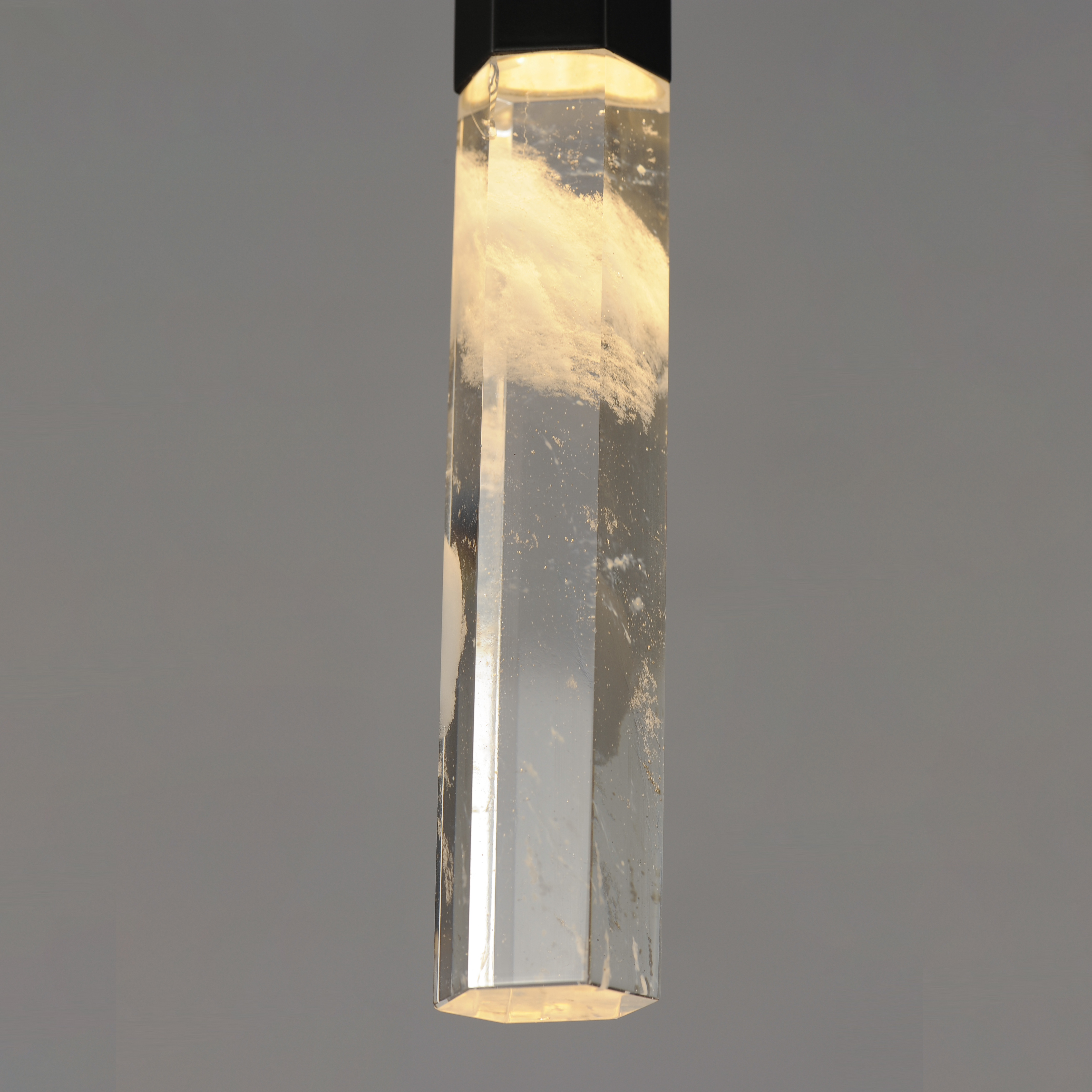

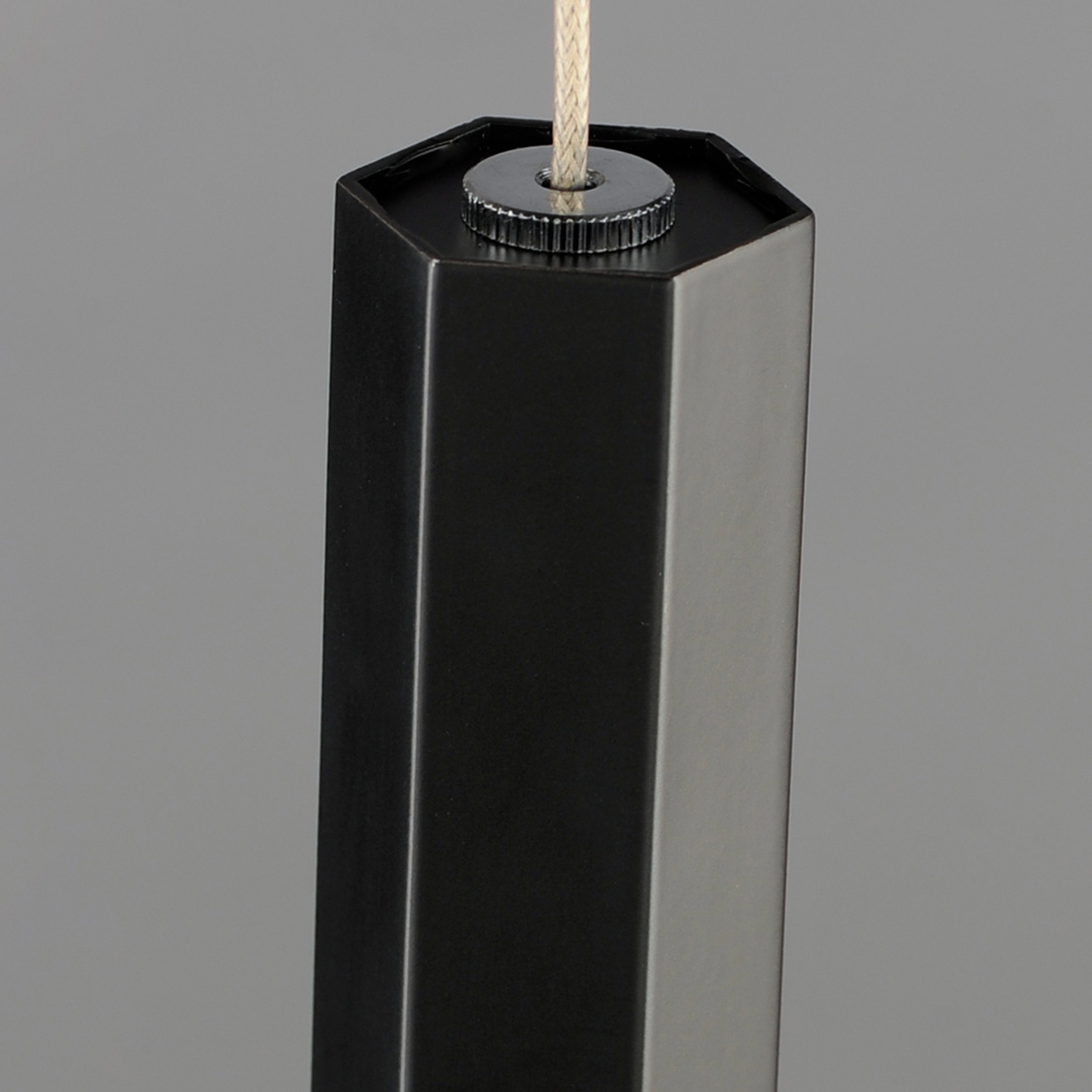

Hexagonal tubes of various lengths terminate at blocks of naturally translucent rock crystal. Each stone varies in diaphaneity making a unique display of refracted light. Available in plated Gold and matte Black, this luxurious LED pendant light cluster amplifies the beauty of natural materials.

2 Finishes Available


Diaphane
Diaphane
SM151020CYBK
LED 1-Light Pendant
Diaphane
Lamping
Number of Bulbs: 1

Light Type: LED

Bulb Type: PCB Integrated
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 5

Fixture Max Wattage: 5

Rated Life: 35,000 Hours
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Rated Lumens: 450
A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K
This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated

CRI: 90

Dimmable: Triac

Input Voltage: 120

Measurements
Width: 1.5"

Height: 15.75"

Length: 1.5"

Max Overall Height: 133.75"

Min Overall Height: 39.5"

Wire Length: 118"

Hanging Weight: 1.4 lb.

UPS Shippable: Yes
Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 4.75"
Canopy Height: 4.75"
Canopy Length: 4.75"

Certifications/Other
UL Standard: Dry

Diaphane
Diaphane
Diaphane


Downloads
Assembly Insturctions - English Download PDF
Assembly Insturctions - French
Specification Sheet Download PDF
IES Photometric Download IES
Product Image Download JPG
Infograph Sheet Download Web
Download Rep
Convert Brochure
Diverse Brochure
Parts and Accessories View Parts and Accessories
Schematic Diagram
