Capsule

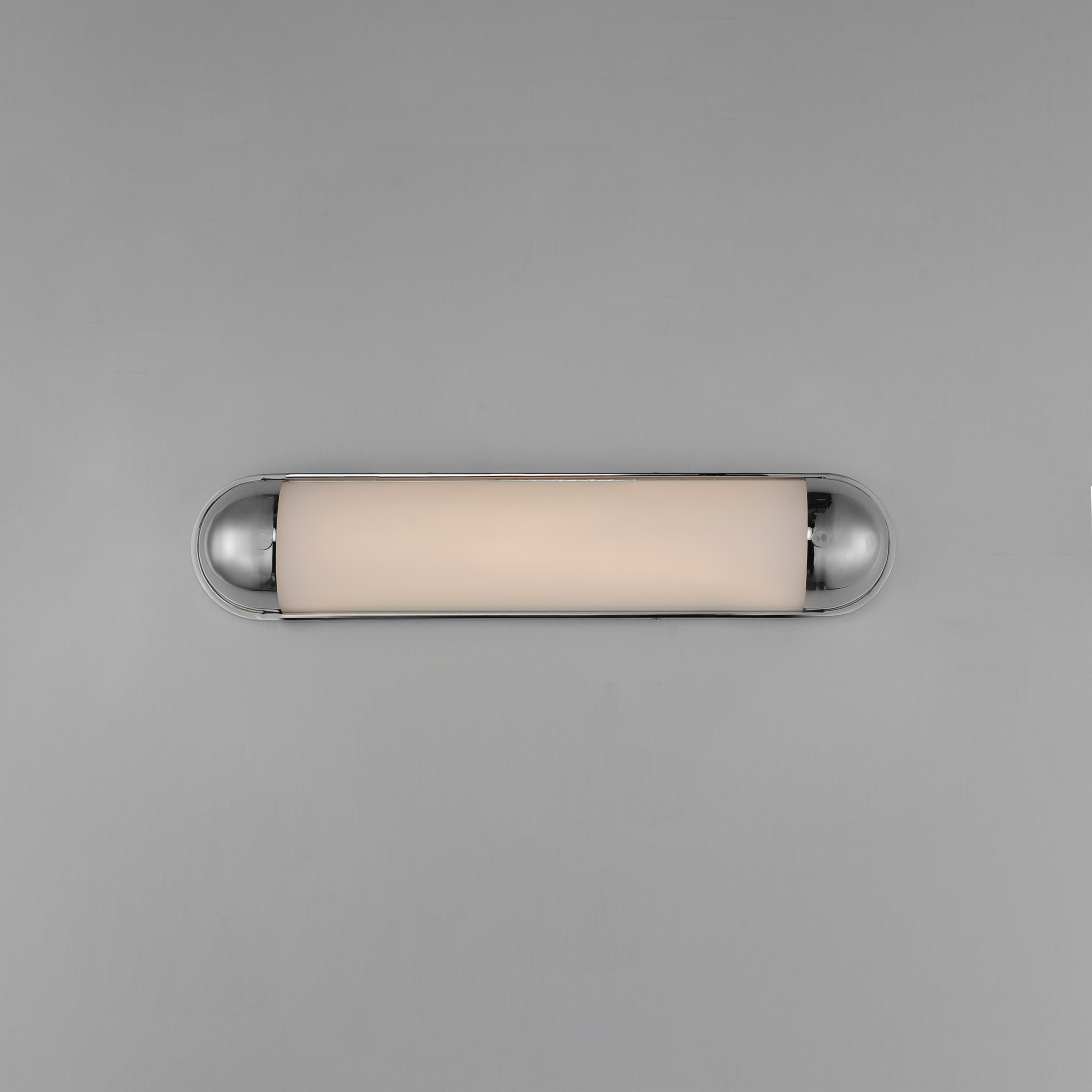

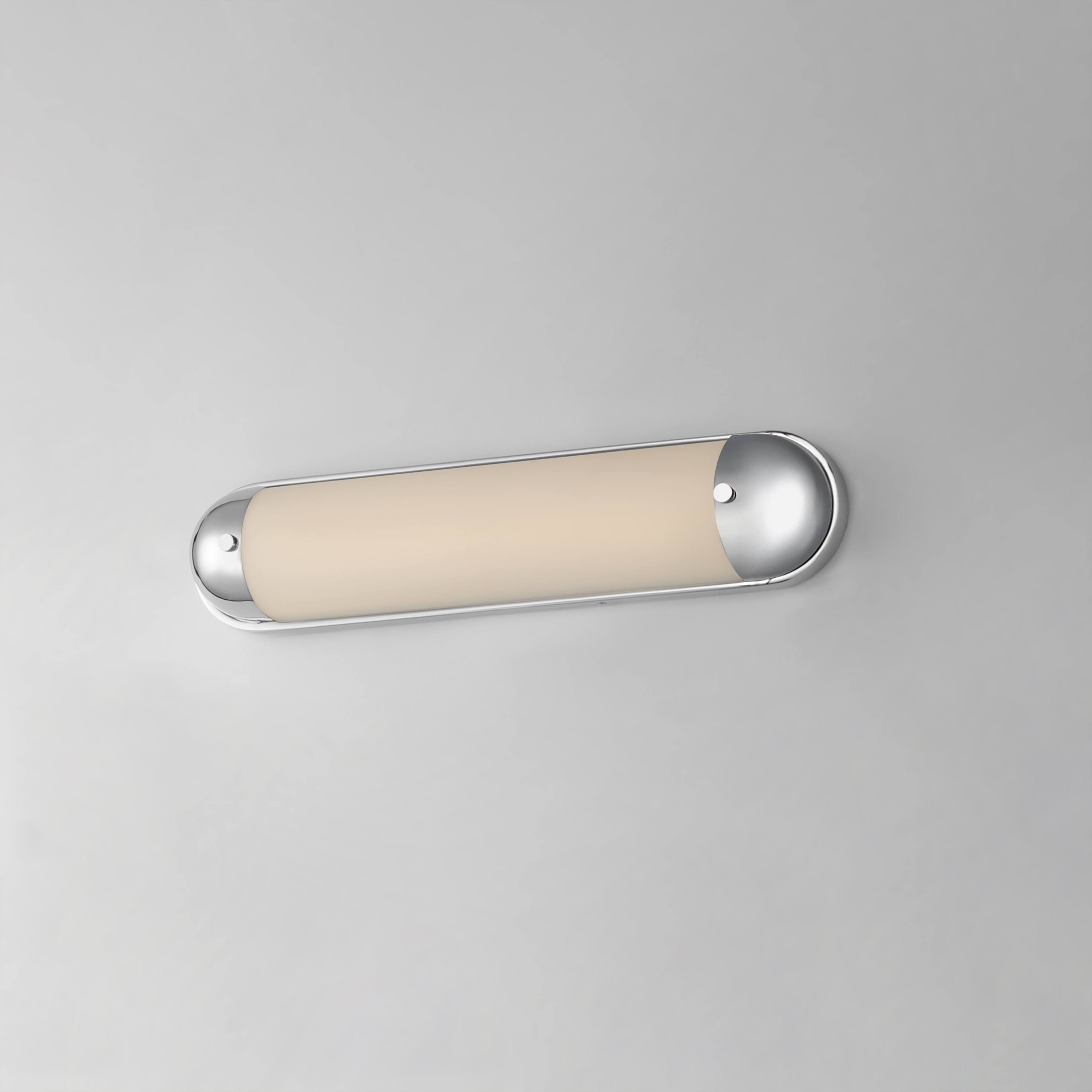

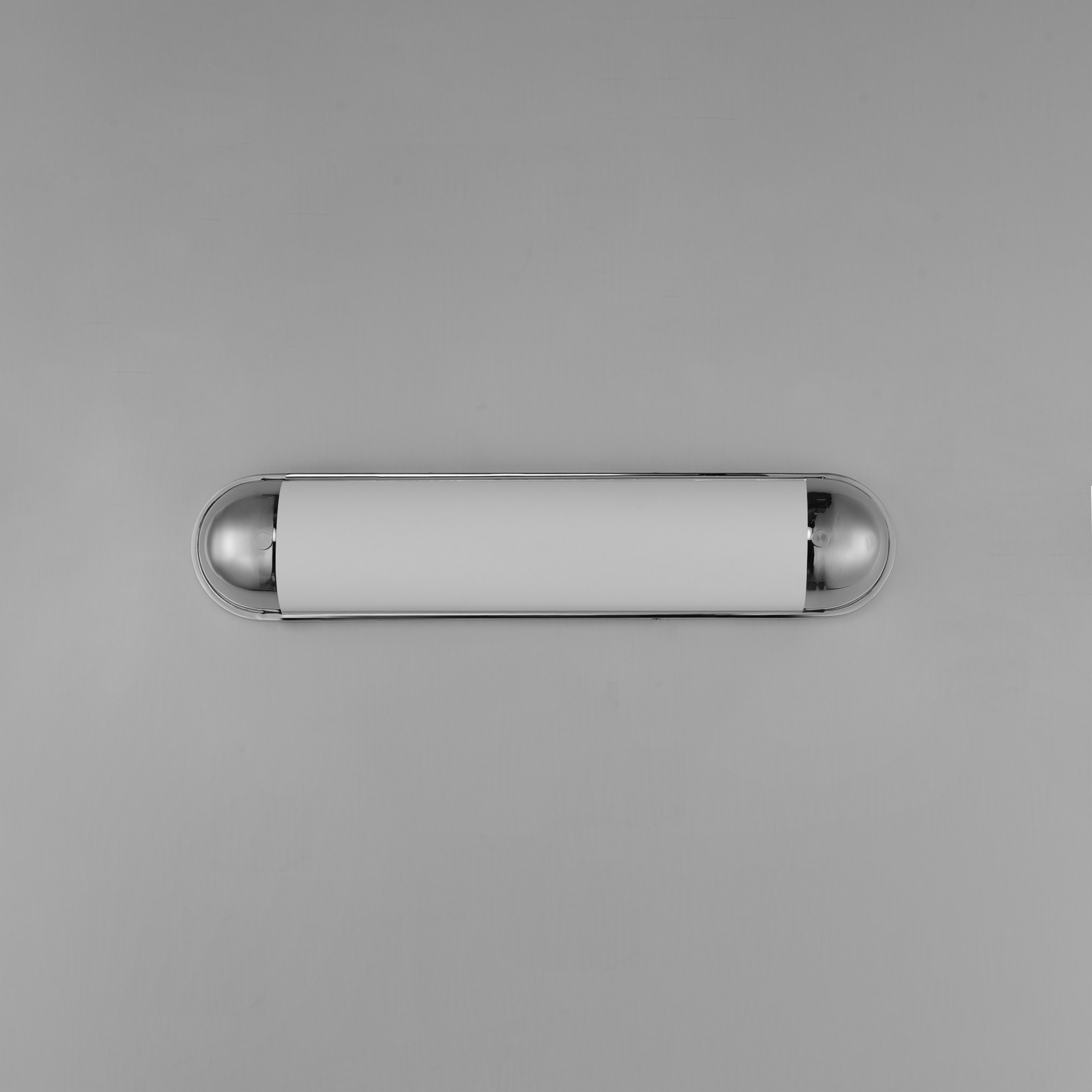

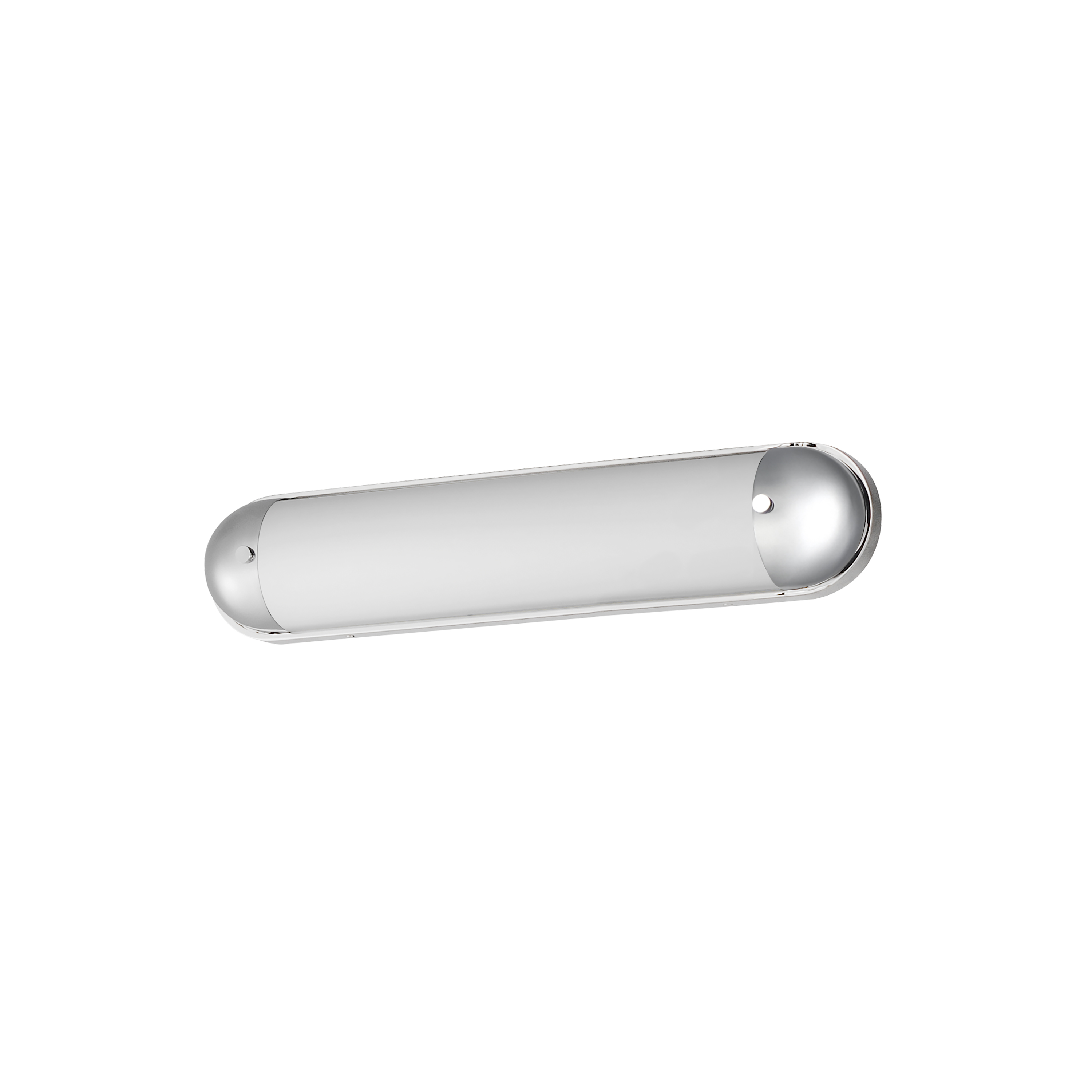

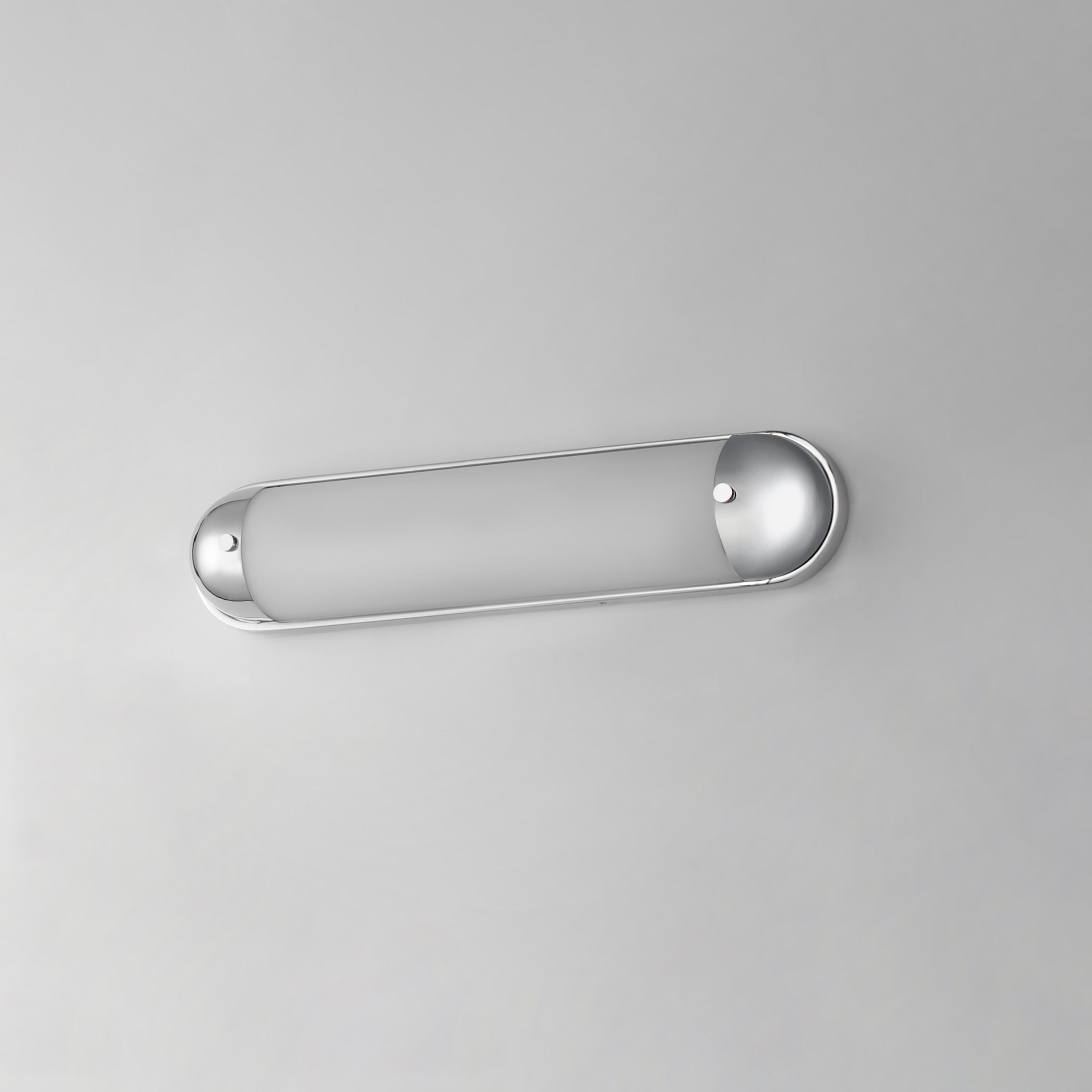

24" LED Bath Vanity CCT Select
Capsule
Model: SM369562SWPC
Sizing: W24" x H5"
Finish: Polished Chrome
Shade: Satin White
Price: $190.00

A convex curved glass is encapsulated at both ends to create an overall oval form. Available in a bold two-tone Black and Aged Brass finish or Polished Chrome, these wall sconces add sophistication to hallways and above bath vanities. The integrated LED technology within the glass features an easily accessible, yet discreet color selectable switch for 5 color temperatures from a warm 2700k to neutrals 3000-3500-4000K and a daylight white 5000k.


OPTIONS


Capsule
SM369562SWPC
24" LED Bath Vanity CCT Select
Capsule
Lamping
Number of Bulbs: 1

Light Type: LED

Bulb Type: AC Integrated
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 18

Fixture Max Wattage: 18

Install Up/Down: All

Rated Life: 35,000 Hours
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 800
A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: CCT Select 5K K
This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated

CRI: 90

Dimmable: Triac

Input Voltage: 120

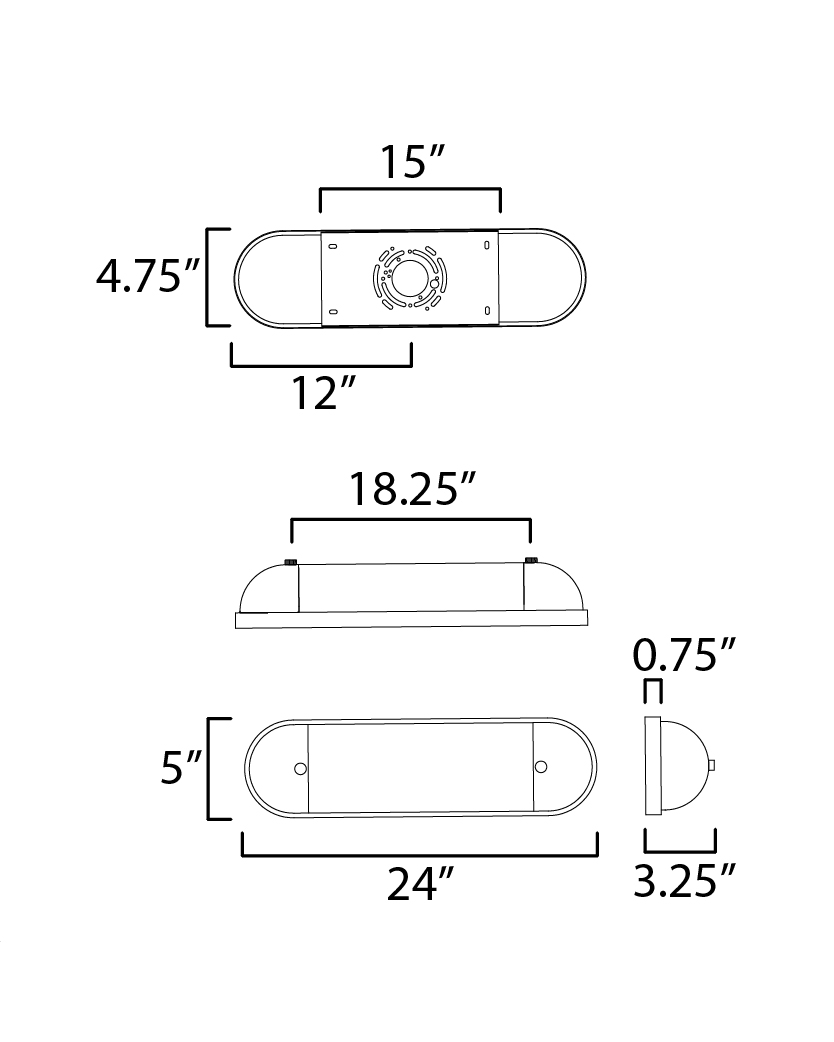

Measurements
Width: 24"

Height: 5"

Extension: 3.25"

HCO: 12"

BP Width: 4.75"

BP Height: 15"

Wire Length: 8"

Hanging Weight: 5.2 lb.

UPS Shippable: Yes
Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.

Certifications/Other
UL Standard: Damp

ADA Compliant: Yes
Click for Additional Information on ADA
Meet California Title 24 Requirements: Yes
Click for Additional Information on Title 24



39562
Capsule
Capsule
Capsule 24" LED Bath Vanity CCT Select
Capsule 24" LED Bath Vanity CCT Select
Capsule 24" LED Bath Vanity CCT Select
Capsule 24" LED Bath Vanity CCT Select
Capsule


Downloads
Assembly Insturctions - English DOWNLOAD
Specification Sheet DOWNLOAD
IES Photometric DOWNLOAD
Product Image
Infograph Sheet Download Web
Download Rep
Convert Brochure
Diverse Brochure
Parts and Accessories
Schematic Diagram
