Cupola
3-Blade Fan w/ 2-Light FKT
Cupola
Model: SM868802BK
Sizing: L52" x W52" x H14.25"
Price: $360.00

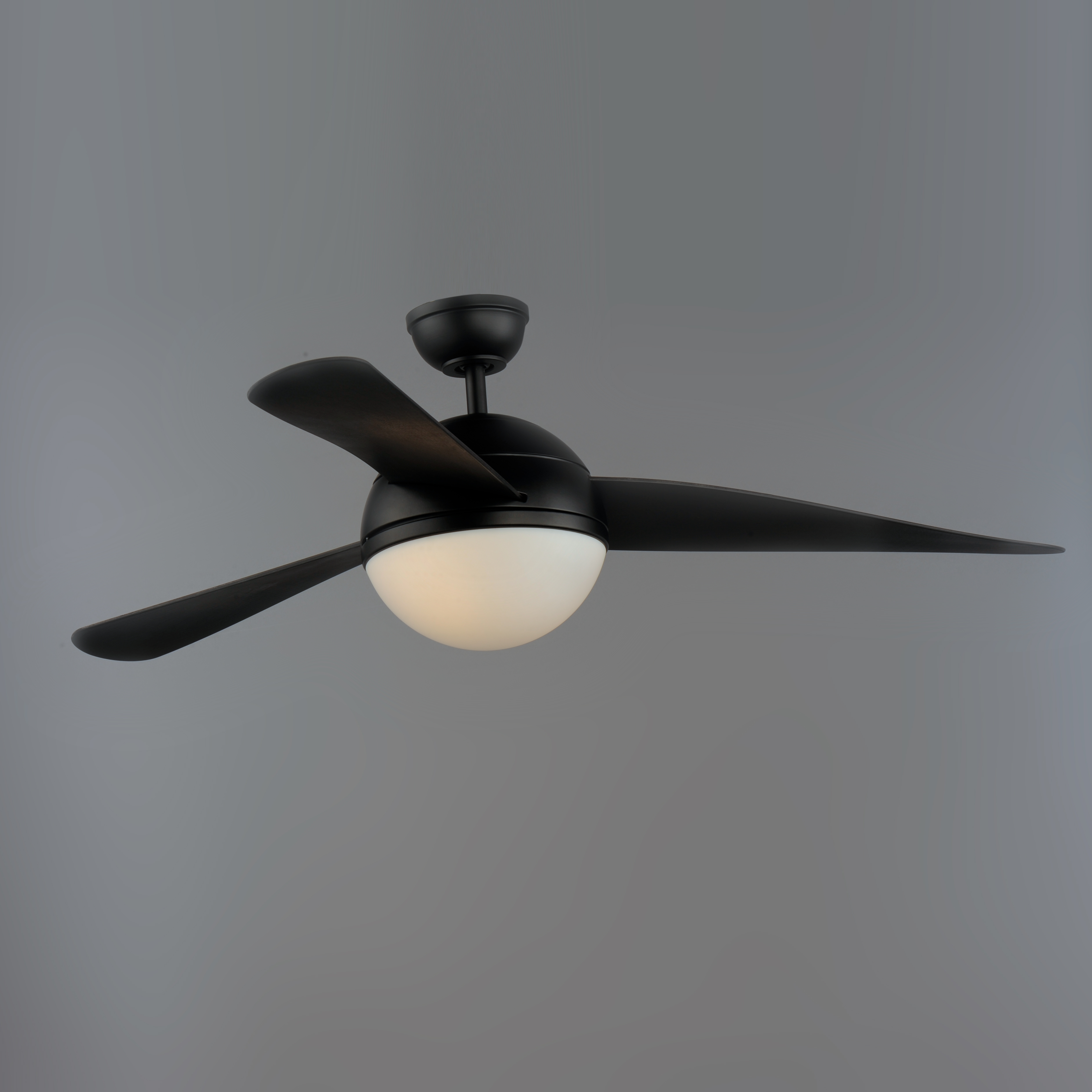

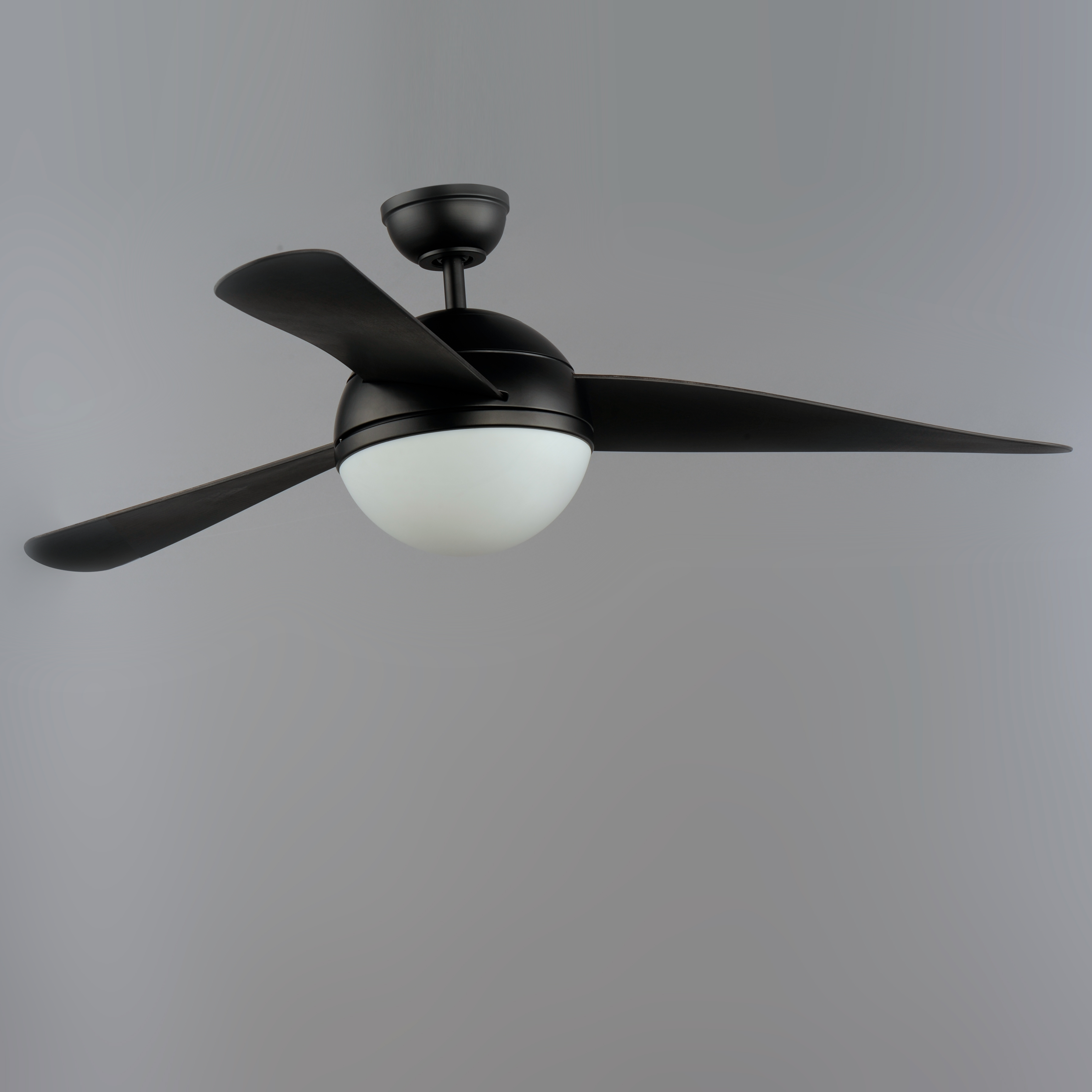

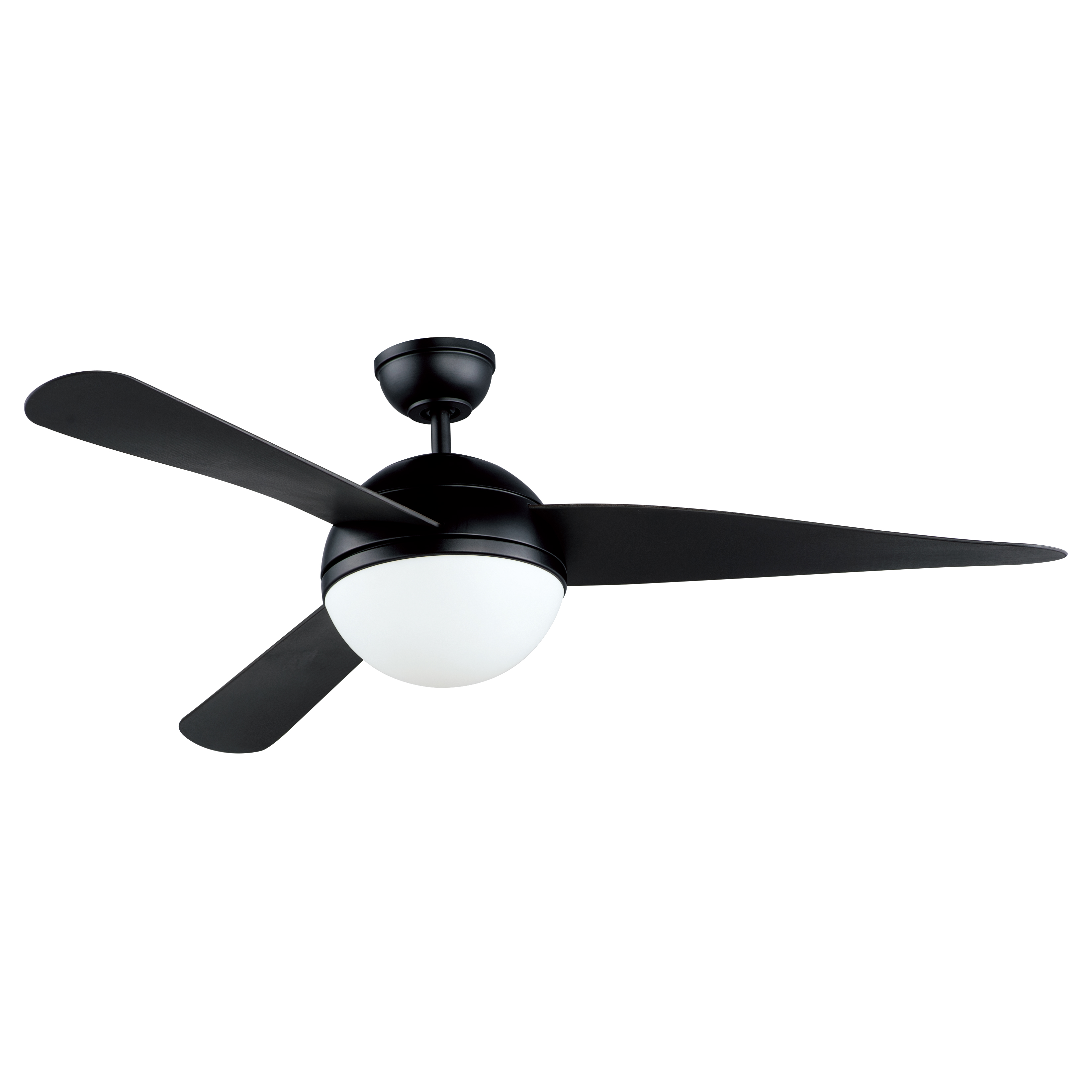

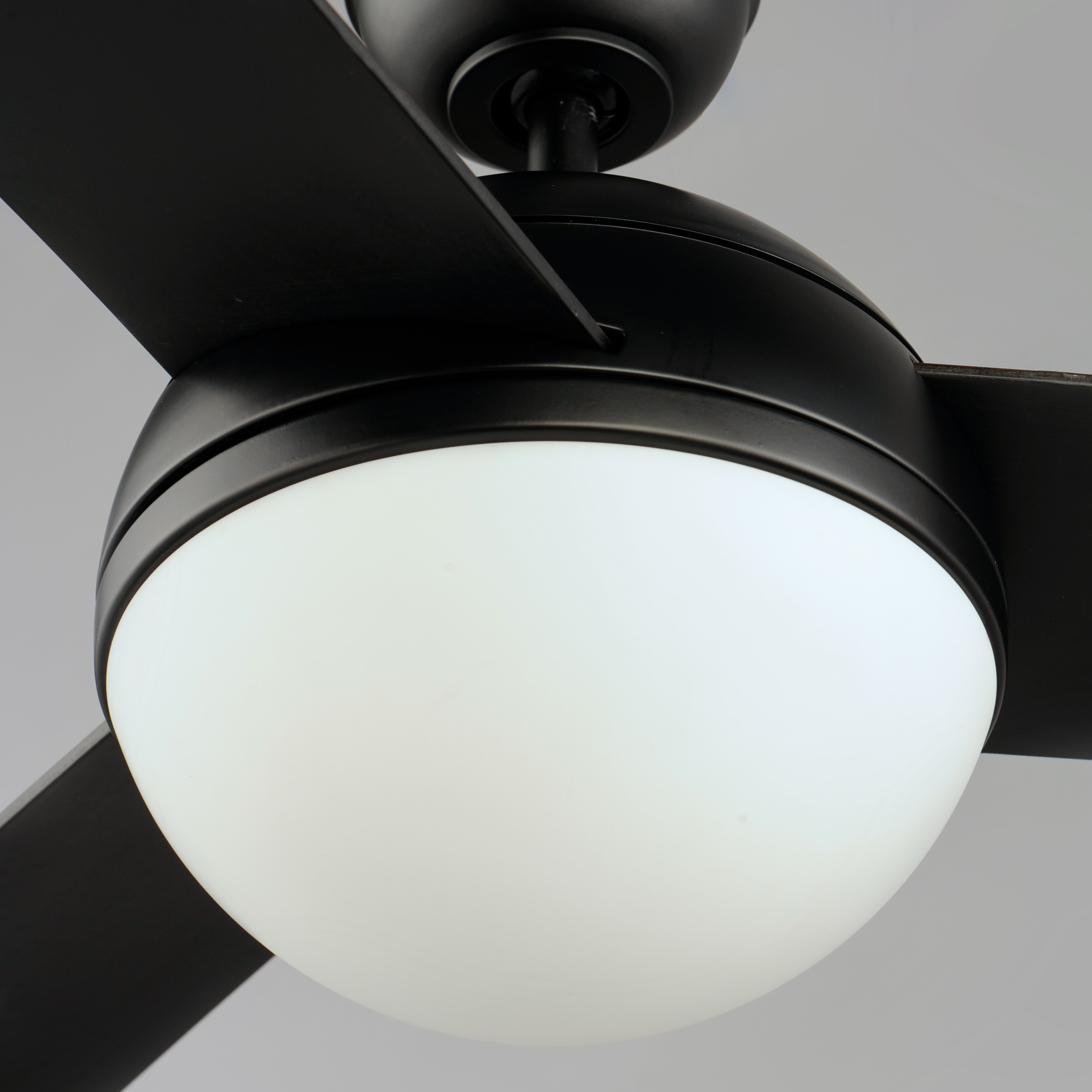

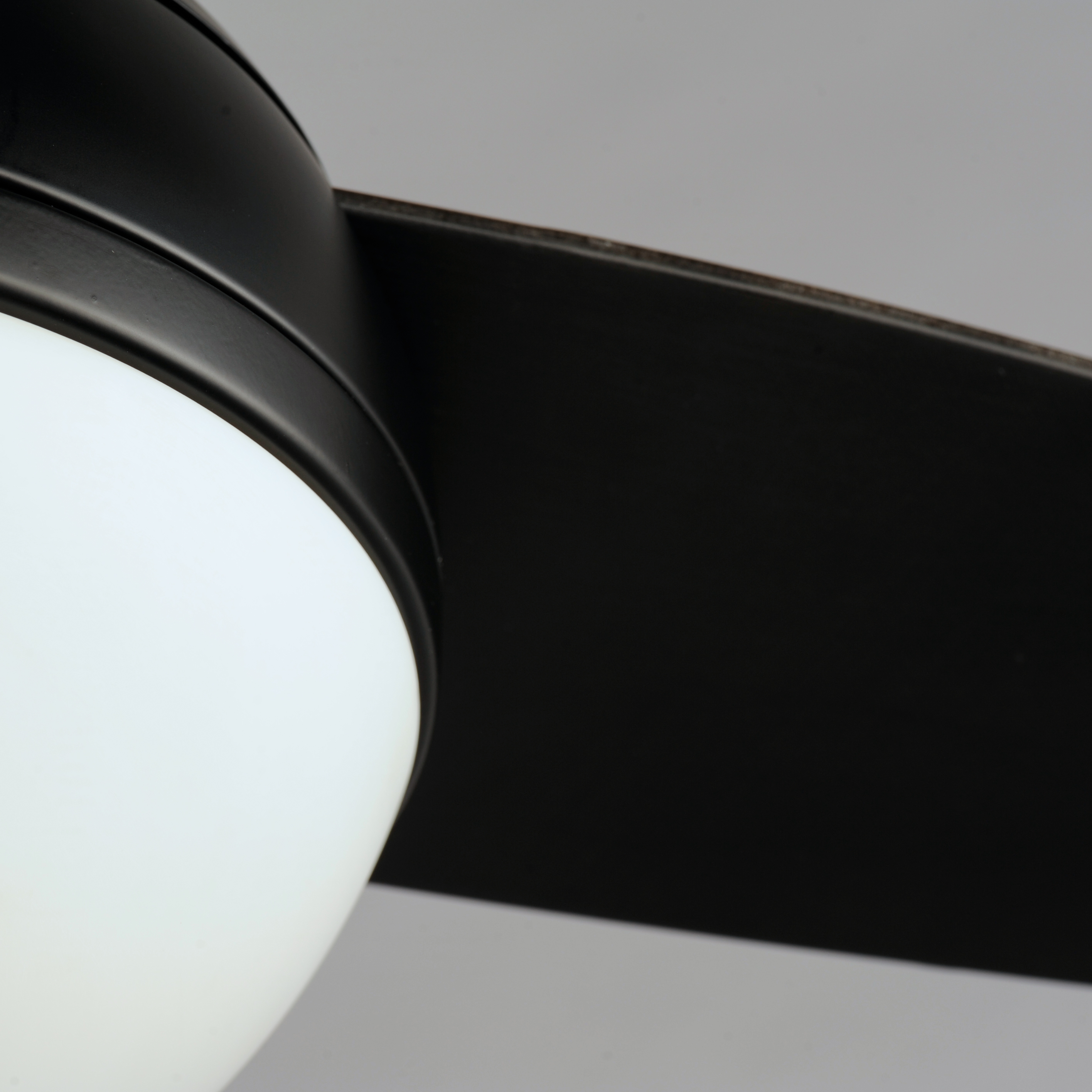

Sweeping arcs define this fan, designed for contemporary and refreshing upgrades. The central housing is domical, from which a trio of uniquely curved fan blades smoothly rotate. Available in Satin Nickel with Silver blades and Black with two-tone Walnut/Black blades, the Cupola also features an LED integrated dome shape or a 2 lamp light kit with a domical glass to create a perfect sphere.

3 Finishes Available


Cupola
Cupola
SM868802BK
3-Blade Fan w/ 2-Light FKT
Cupola
Lamping
Number of Bulbs: 2

Light Type: LED

Bulb Type: E26 Medium
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 9

Fixture Max Wattage: 18

Rated Life: 25,000 Hours
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Rated Lumens: 1500
A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K
This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Included

CRI: 90

Dimmable: Y

Input Voltage: 120

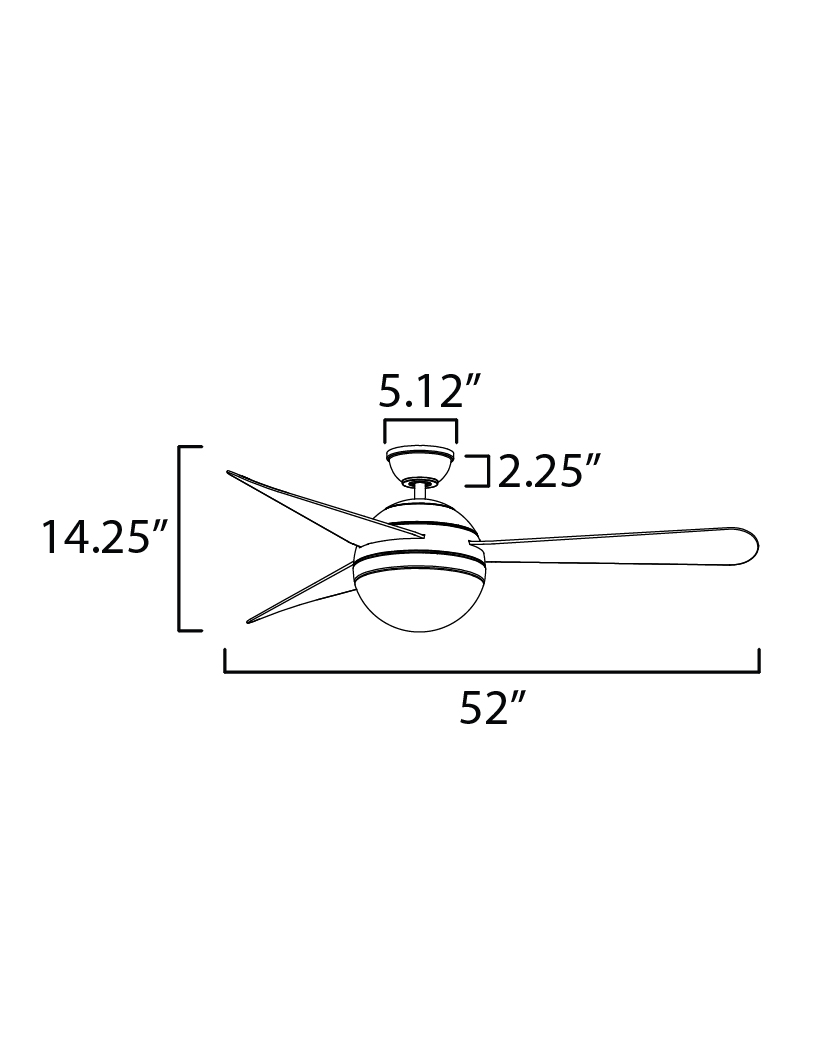

Measurements
Width: 52"

Height: 14.25"

Length: 52"

BP Width: 5.75"

BP Height: 22.75"

Wire Length: 88.5"

Hanging Weight: 17.28 lb.

UPS Shippable: Yes
Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 5.25"
Canopy Height: 2.25"

Certifications/Other
UL Standard: Damp

Cupola
Cupola
Cupola


Downloads
Assembly Insturctions - English Download PDF
Assembly Insturctions - French
Specification Sheet Download PDF
IES Photometric Download IES
Product Image Download JPG
Infograph Sheet Download Web
Download Rep
Convert Brochure
Diverse Brochure
Parts and Accessories View Parts and Accessories
Schematic Diagram
