Home > Collections > Ovation > Ovation 15-Light LED Chandelier
Ovation

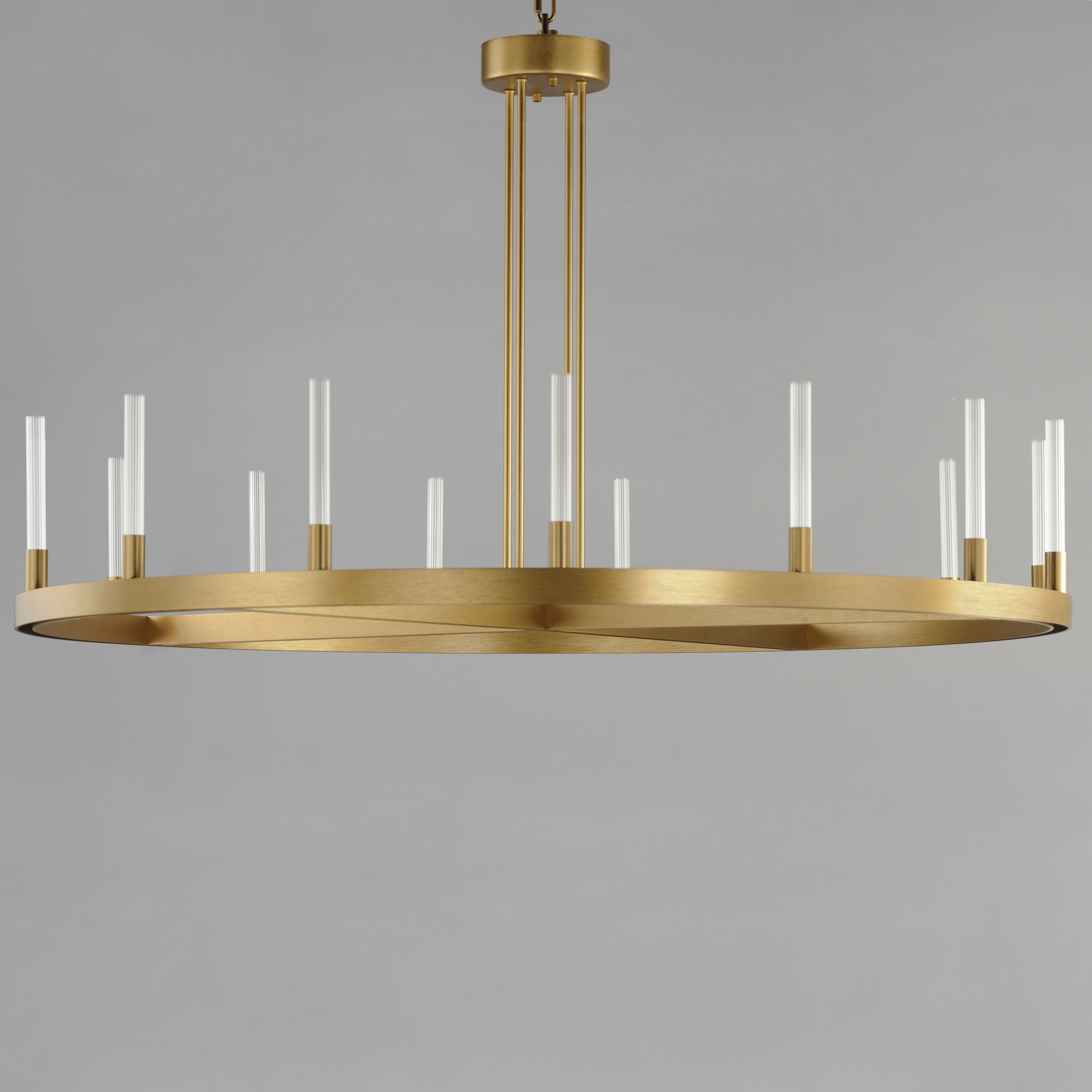

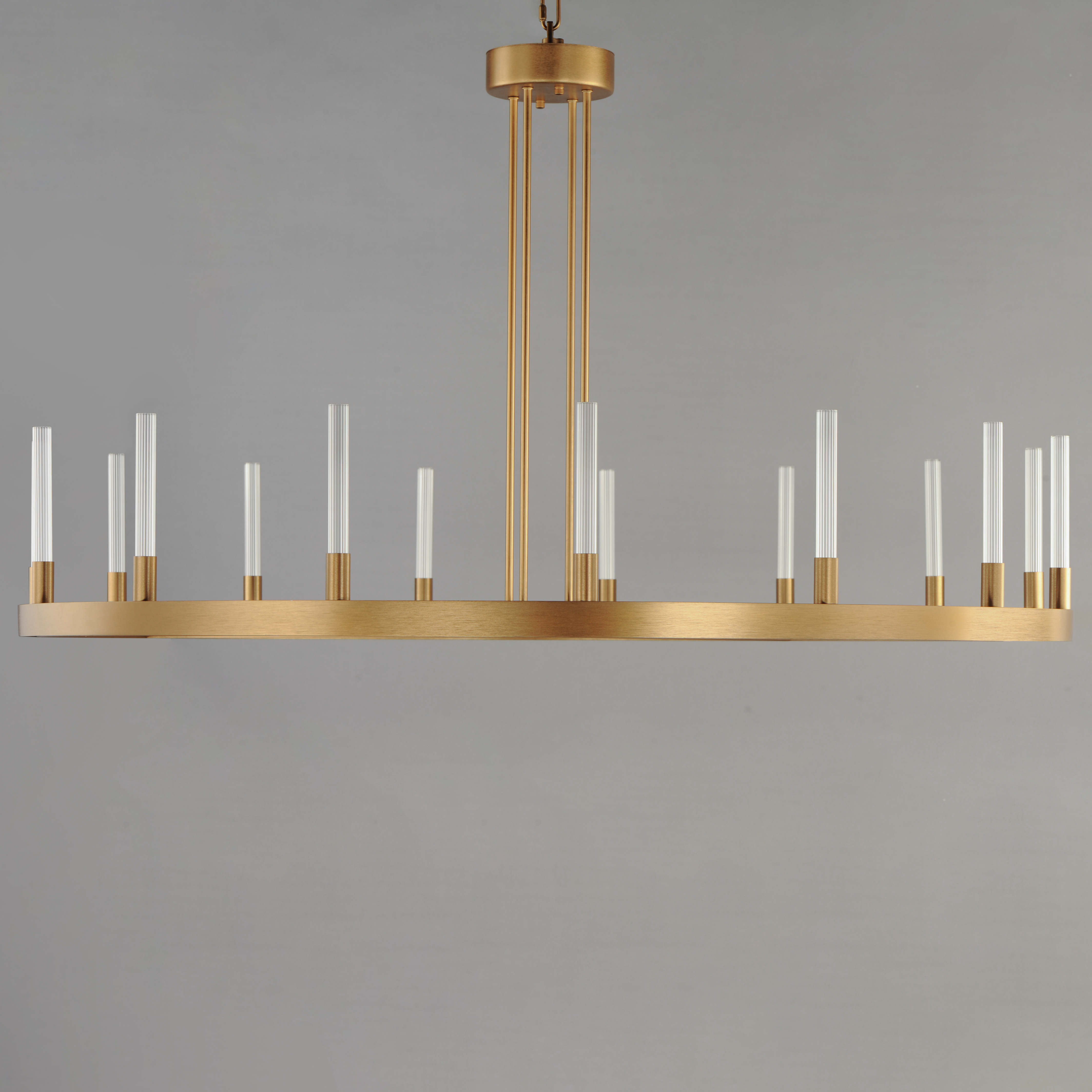

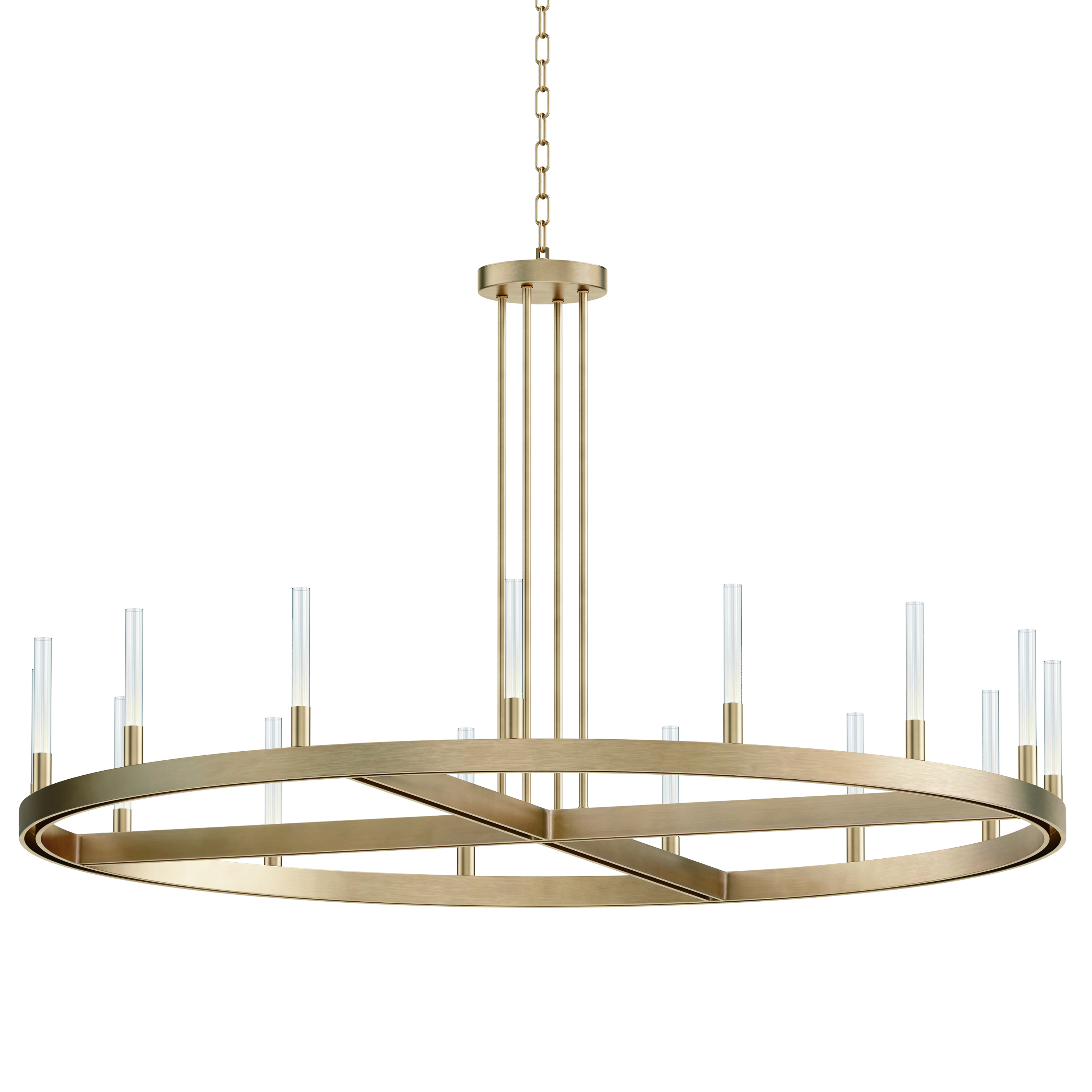

15-Light LED Chandelier
Ovation
Model: SM166168CRGLD
Sizing: L47" x W47" x H24.35"
Finish: Gold
Shade: Clear Ribbed
Price: $1,798.00

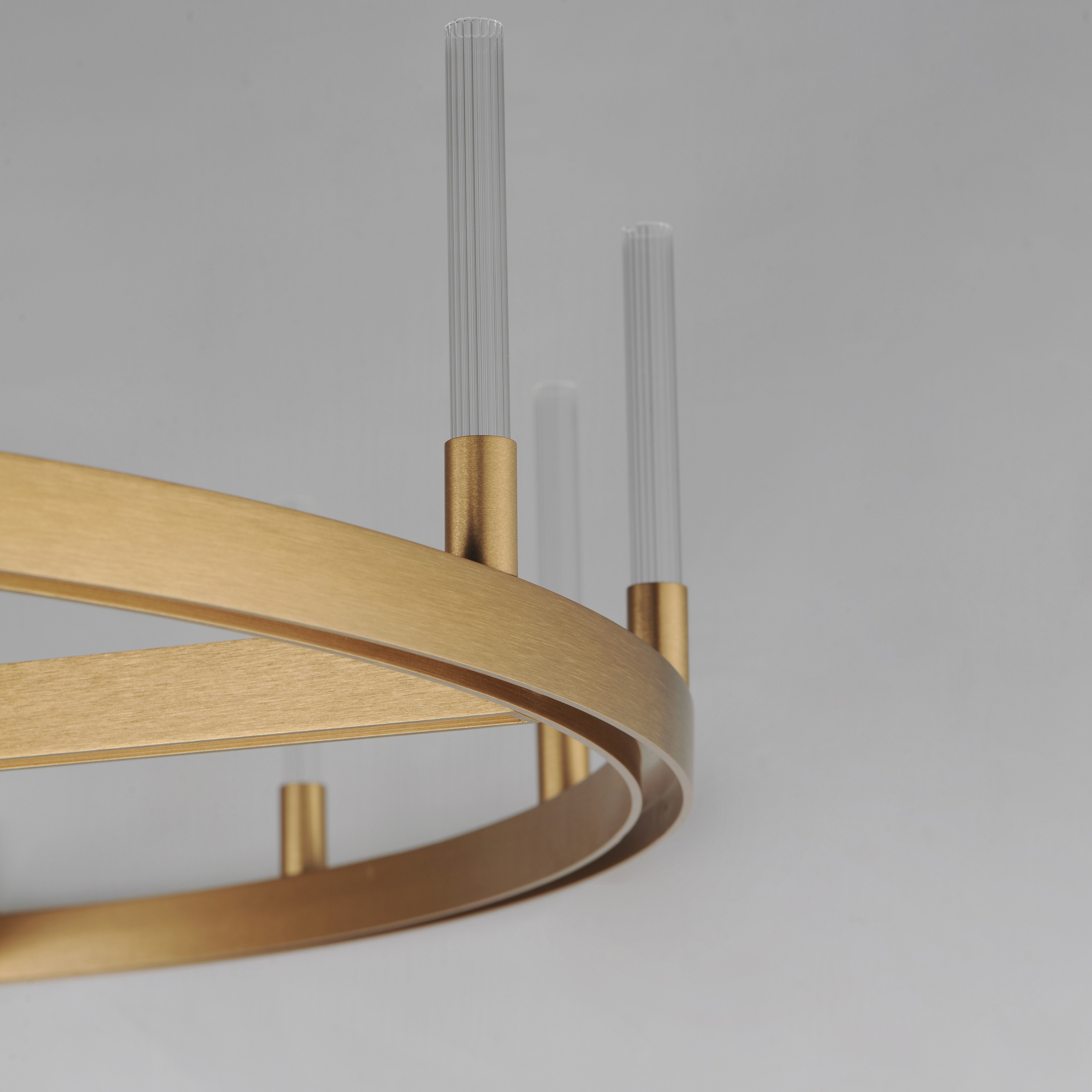

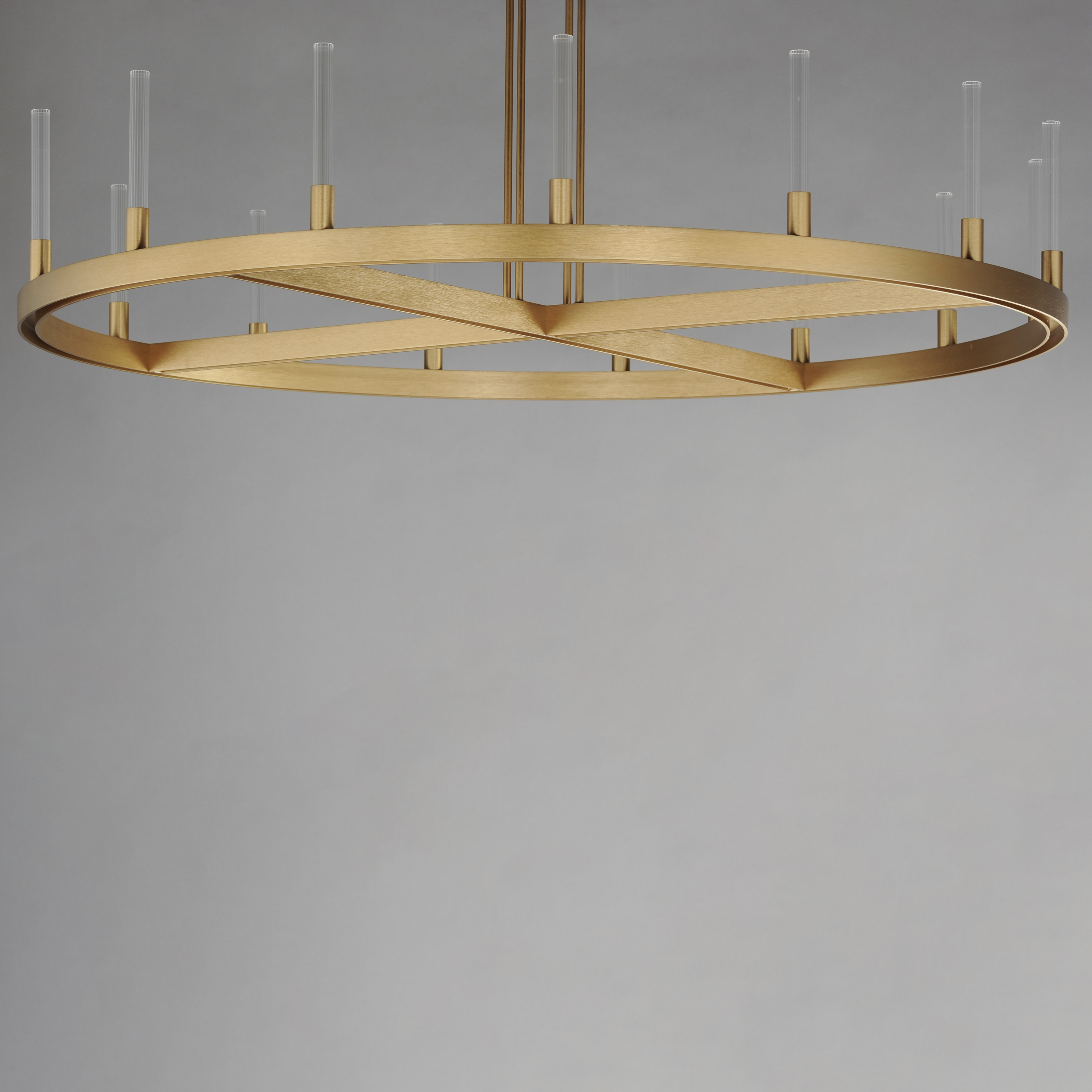

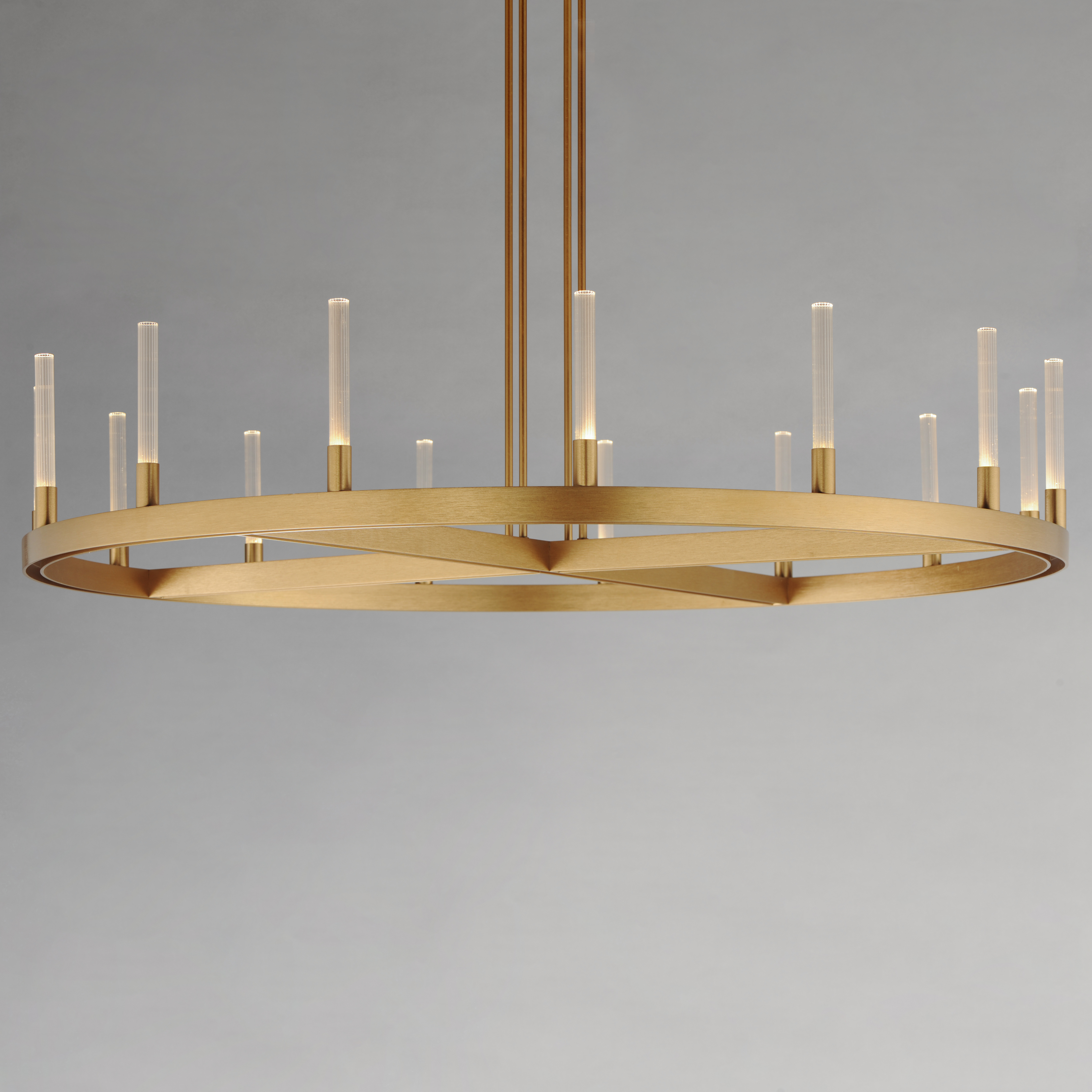

A modern tribute to the wheel chandelier, the Ovation collection integrates LED technology for a dazzling lighting effect. The LED light produces a shimmering lighting effect along the tall and narrow fluted glass shades adding celebratory effervescence. The expansive diameters of the rings join at the center in equipoise using four down rods to suspend the frame. Mount the chandelier from the collector or make use of additional chain supplied to extend the height with ease. Additional sconces with up and down lighting complete the design. Available in Brushed Brass or Black, the collection toasts a classic design creating an elegant statement.


OPTIONS


Ovation
Ovation
SM166168CRGLD
15-Light LED Chandelier
Ovation
Lamping
Number of Bulbs: 15
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 2
Fixture Max Wattage: 45
Rated Life: 50,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 2120 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 85
Dimmable: Triac / 0-10V
Input Voltage: 120

Measurements
Width: 47"
Height: 24.35"
Length: 47"
Max Overall Height: 65.5"
Min Overall Height: 26"
Wire Length: 120"
Chain Length: 36"
Hanging Weight: 20.9 lb.
UPS Shippable: Oversize Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 5.75"
Canopy Height: 1.5"
Canopy Length: 5.75"

Certifications/Other
UL Standard: Dry



SM166168
Ovation
Ovation
Ovation 15-Light LED Chandelier
Ovation 15-Light LED Chandelier
Ovation 15-Light LED Chandelier
Ovation 15-Light LED Chandelier
Ovation 15-Light LED Chandelier
Ovation


Downloads
Assembly Insturctions - English DOWNLOAD
Specification Sheet DOWNLOAD
IES Photometric DOWNLOAD
Product Image
Infograph Sheet Download Web
Download Rep
Convert Brochure
Diverse Brochure
Parts and Accessories
Schematic Diagram
