Home > Collections > CounterMax MX-X120c > CounterMax 30" 4-Light 120V Xenon
CounterMax MX-X120c

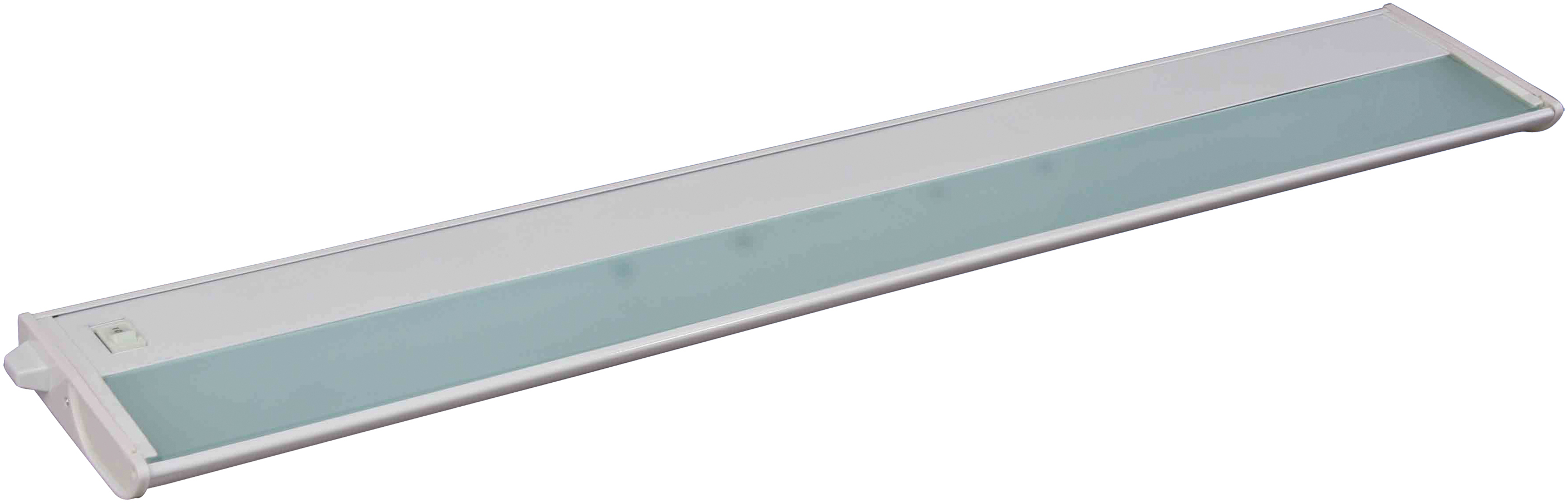

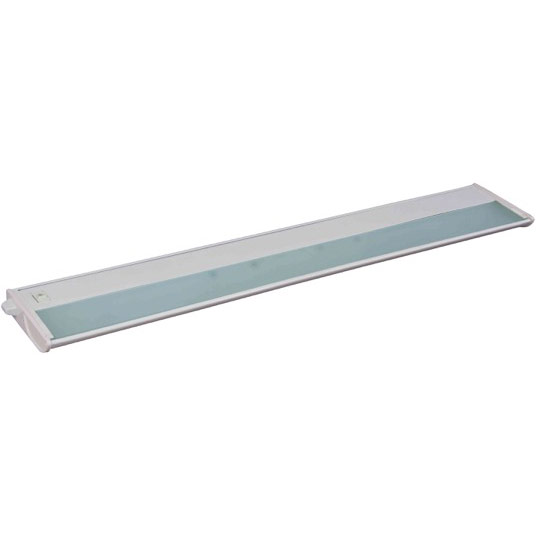

CounterMax 30" 4-Light 120V Xenon
CounterMax MX-X120c
Model: SM867843WT
Sizing: L30" x W5" x H1.25"
Finish: White
Shade:
Price: $60.00
Discontinued
With a sleek profile, linkability and direct wiring, CounterMax MX-X120c Series installs easily under the cabinet and emits a warm light. The hinged top gives easy access to the long-lasting Xenon bulbs and wiring. Cabinets stay cool and safe due to the unique airflow design that limits heat transfer.


OPTIONS


CounterMax MX-X120c
CounterMax MX-X120c
SM867843WT
CounterMax 30" 4-Light 120V Xenon
CounterMax MX-X120c
Lamping
Number of Bulbs: 4
Light Type: Xenon
Bulb Type: G8 An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 20
Fixture Max Wattage: 80
Rated Life: 3,500 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Rated Lumens: 900 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 2900 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Included
Dimmable: Yes
Input Voltage: 120

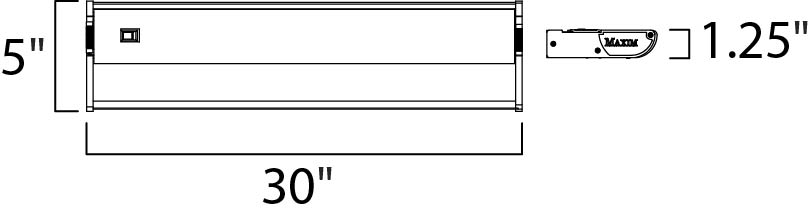

Measurements
Width: 5"
Height: 1.25"
Length: 30"
Hanging Weight: 3.3 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.

Certifications/Other
UL Standard: Dry
Dark Sky: N
Energy Star: No Click for Additional Information on ENERGY STAR
Meet California Title 24 Requirements: N Click for Additional Information on Title 24



SM867843
CounterMax MX-X120c
CounterMax MX-X120c
CounterMax MX-X120c


Downloads
Specification Sheet DOWNLOAD
Product Image
Convert Brochure
Diverse Brochure
Parts and Accessories
Schematic Diagram


Click for more information on the CounterMax® system
