Home > Collections > Pipes > Pipes LED 24 Flush Mount
Pipes

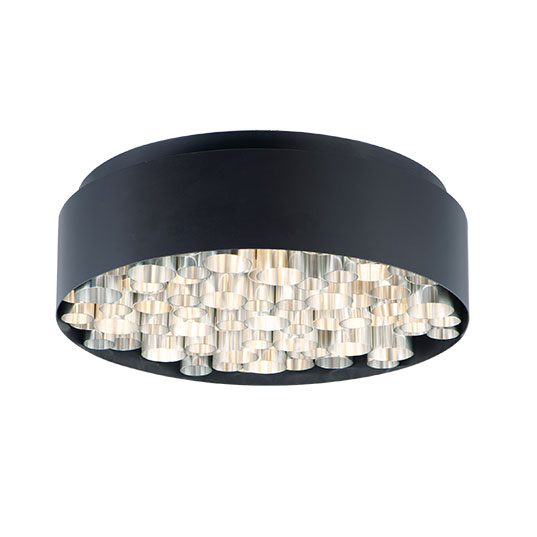

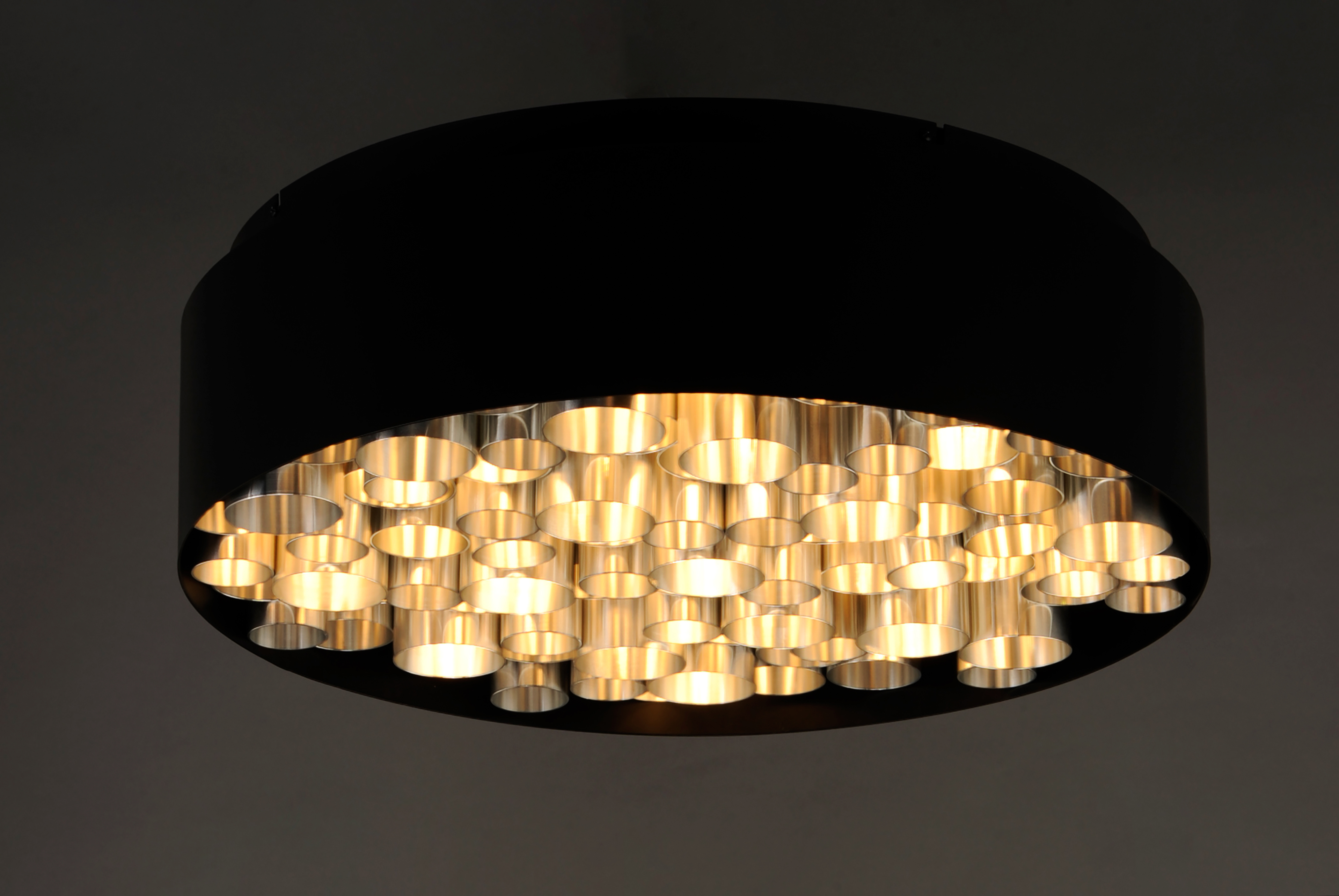

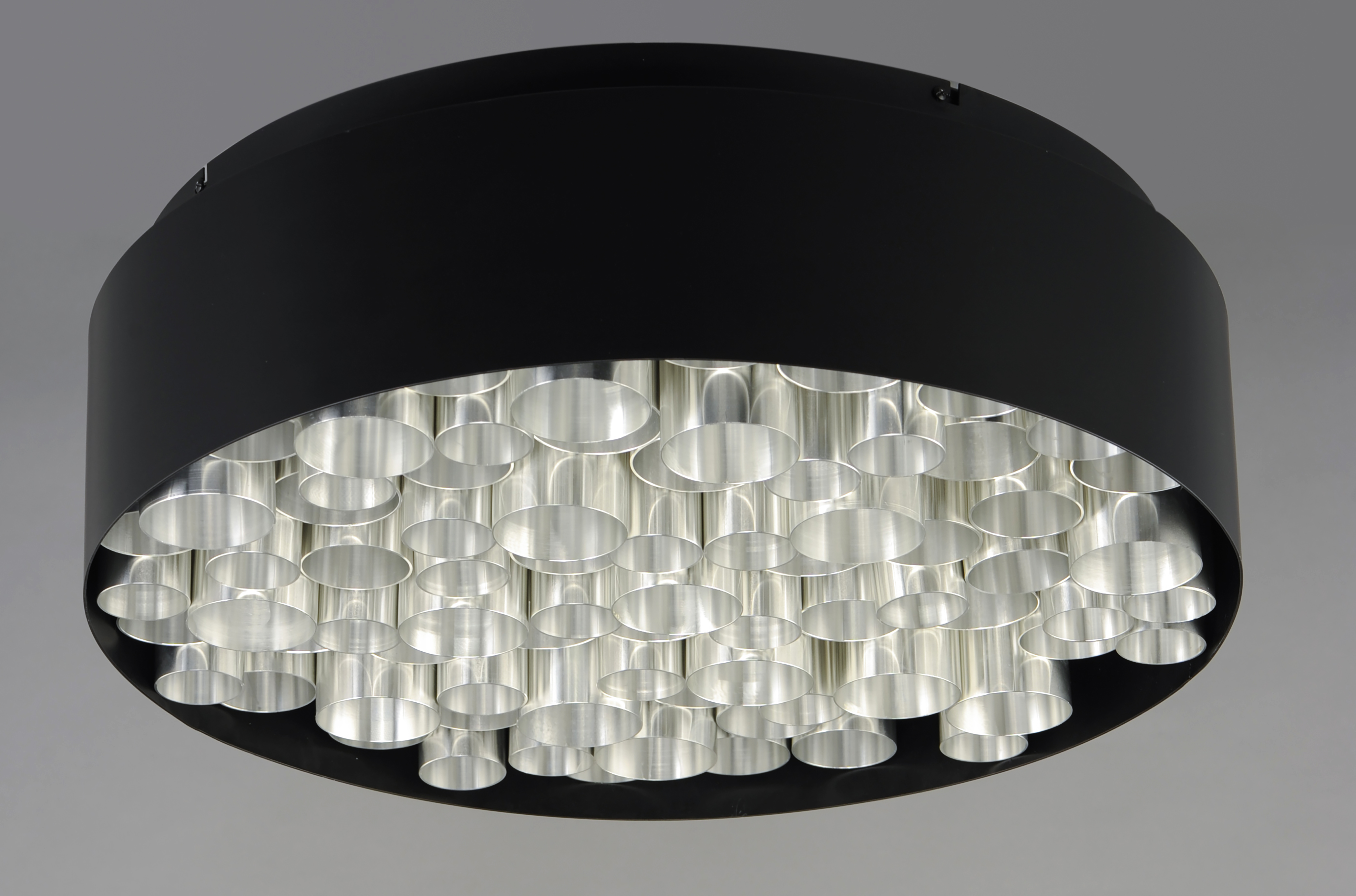

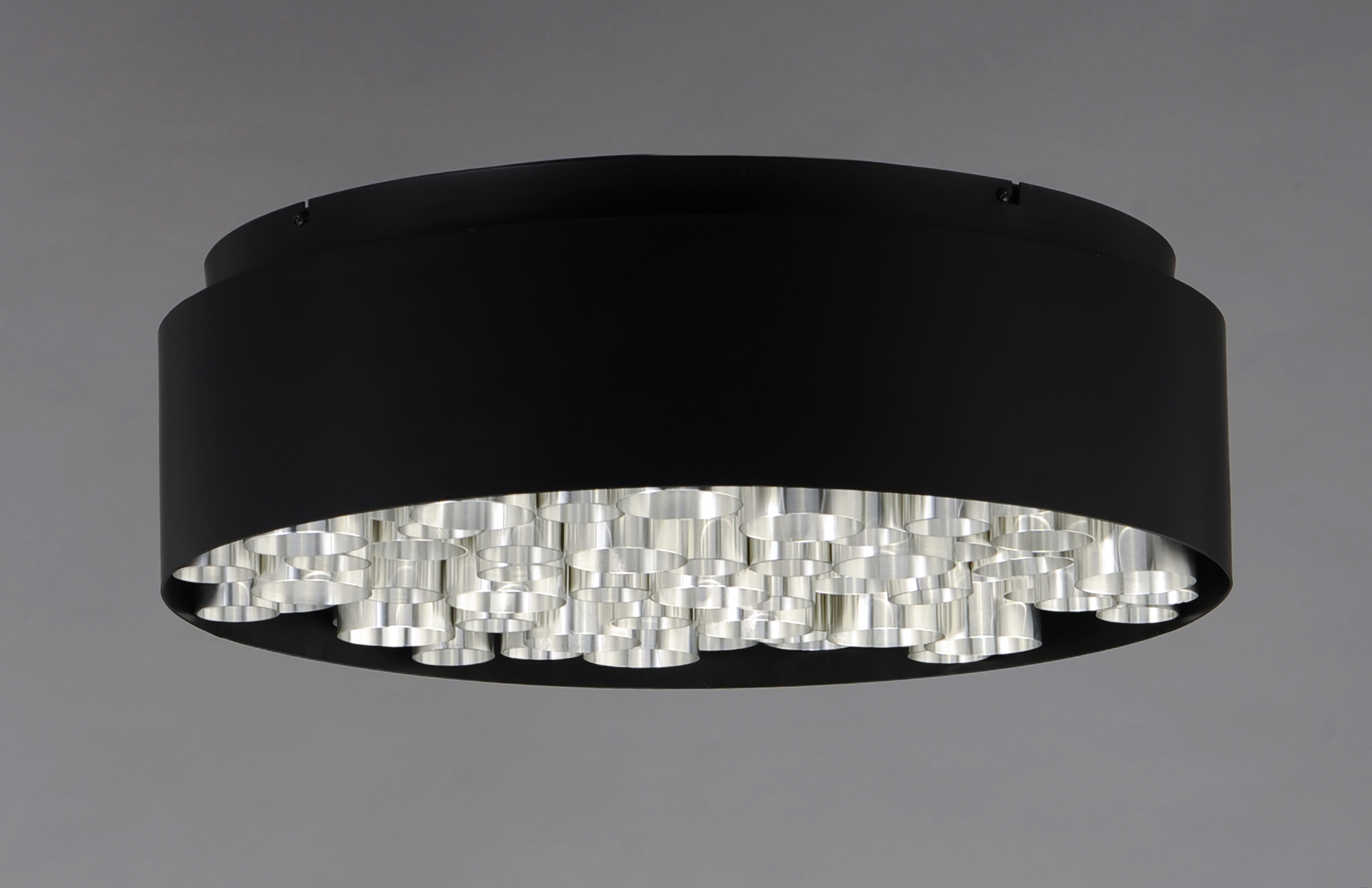

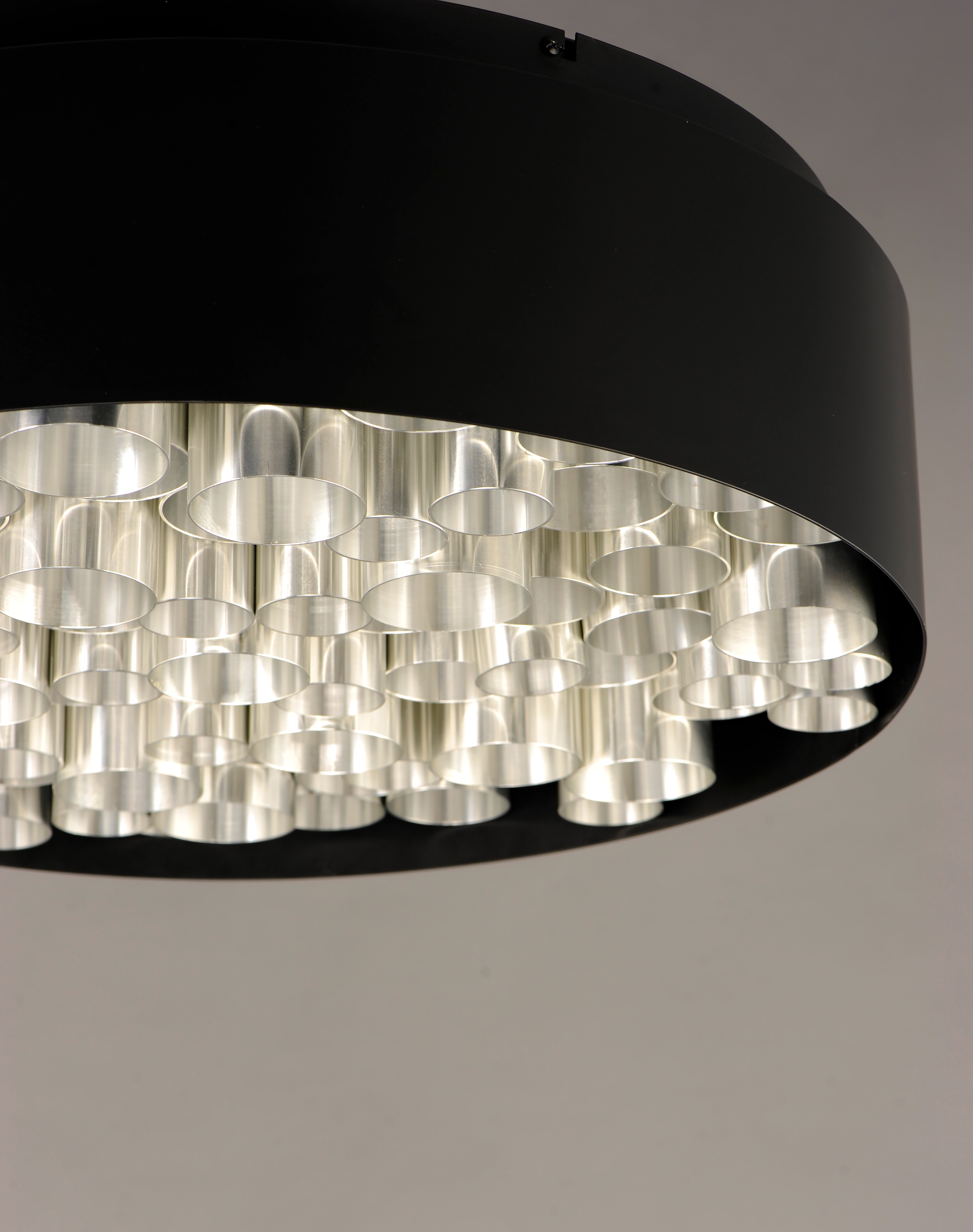

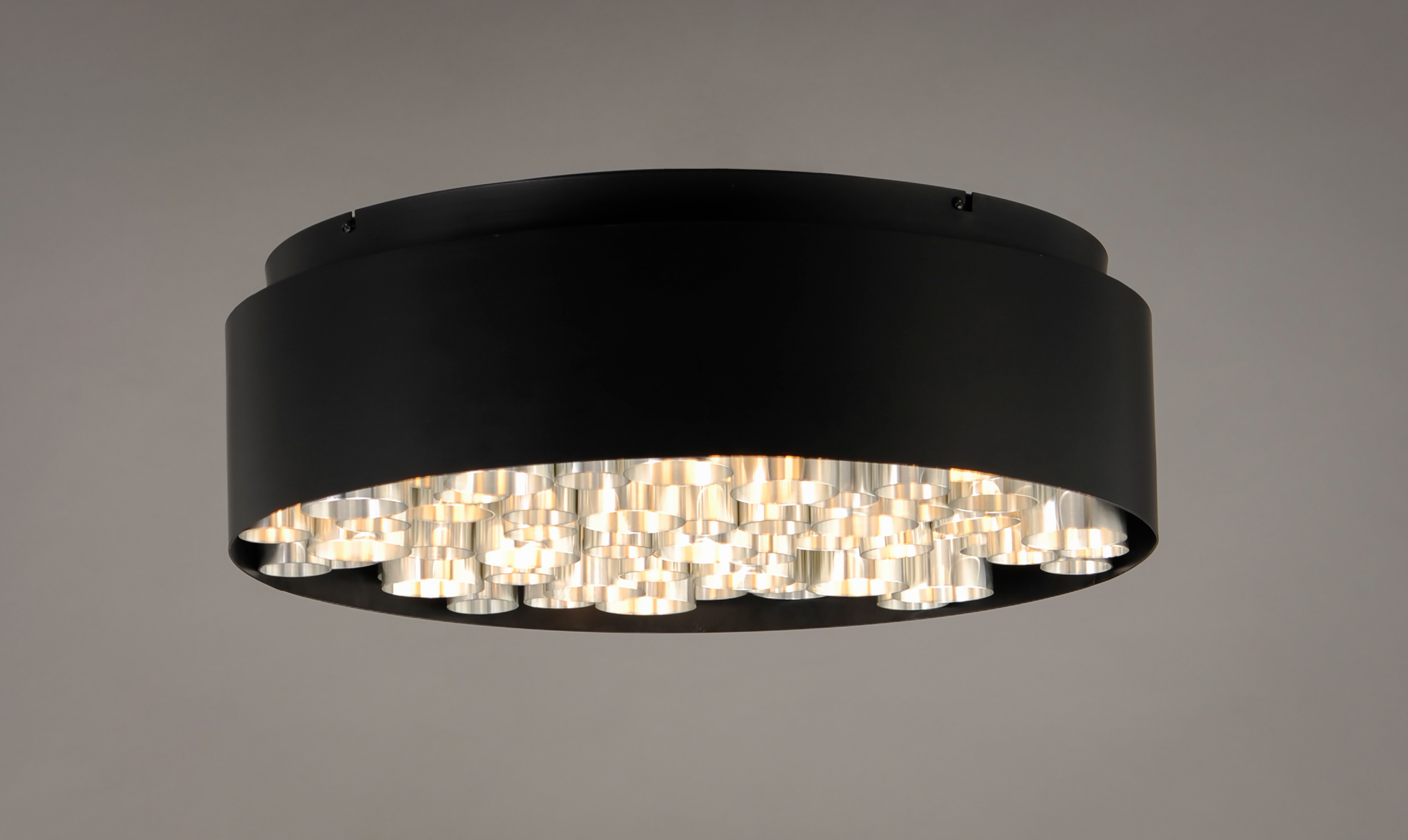

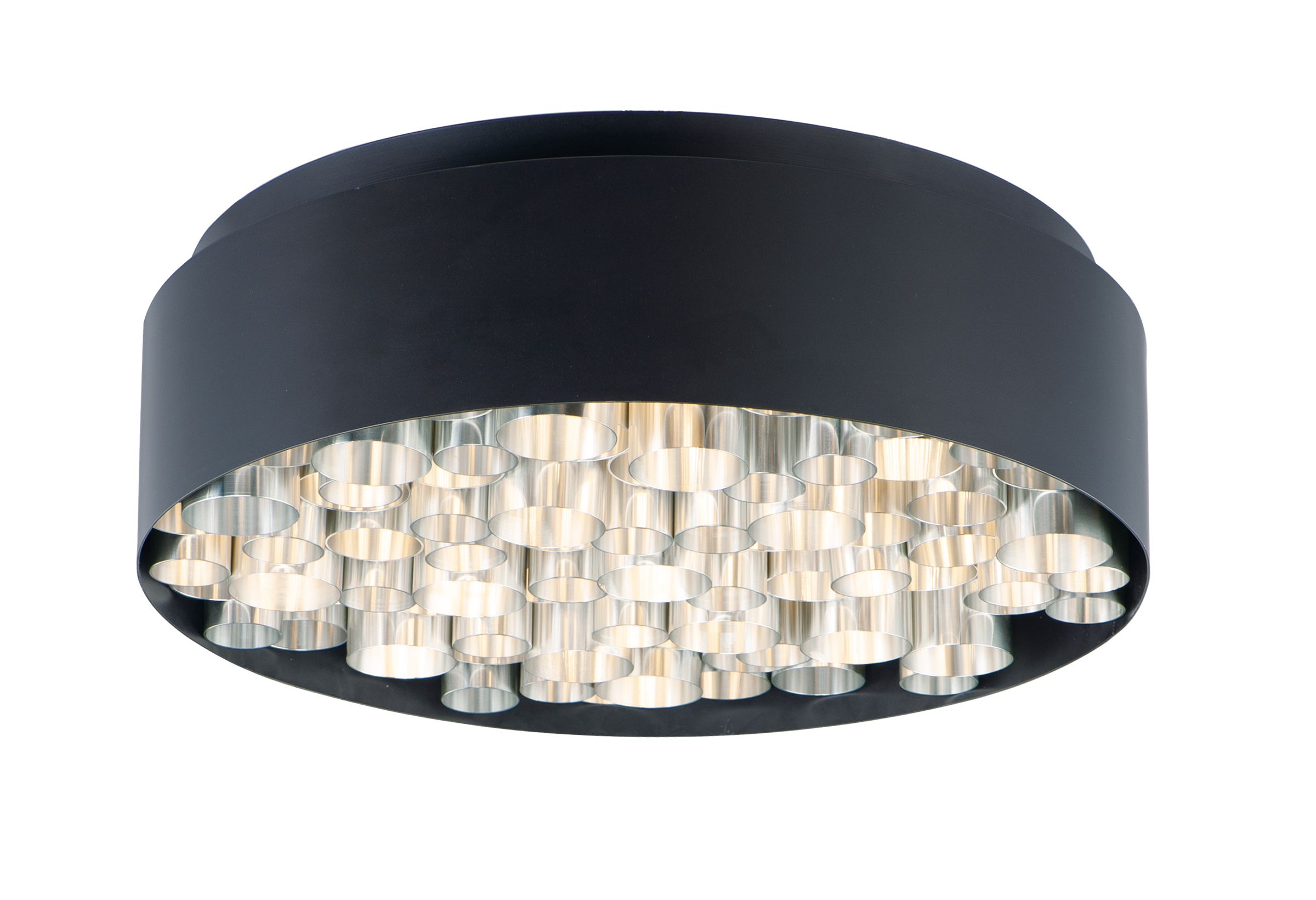

LED 24 Flush Mount
Pipes
Model: SM352782BKAL
Sizing: L24" x W24" x H7.75"
Finish: Black / Brushed Aluminum
Shade:
Price: $1,548.00
Discontinued
Drums of Black conceal various size Brushed Aluminum tubes which are specially treated to create visual stimulation as the LED light passes through. This exclusive design produces incredible light without glare which adds to the glamor of this unique design.


OPTIONS


Pipes
Pipes
SM352782BKAL
LED 24 Flush Mount
Pipes
Lamping
Number of Bulbs: 13
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 4.5
Fixture Max Wattage: 58.5
Rated Life: 25,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 2000 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
Photo Cell: N
CRI: 90
Dimmable: Triac / 0-10V
Input Voltage: 120-277

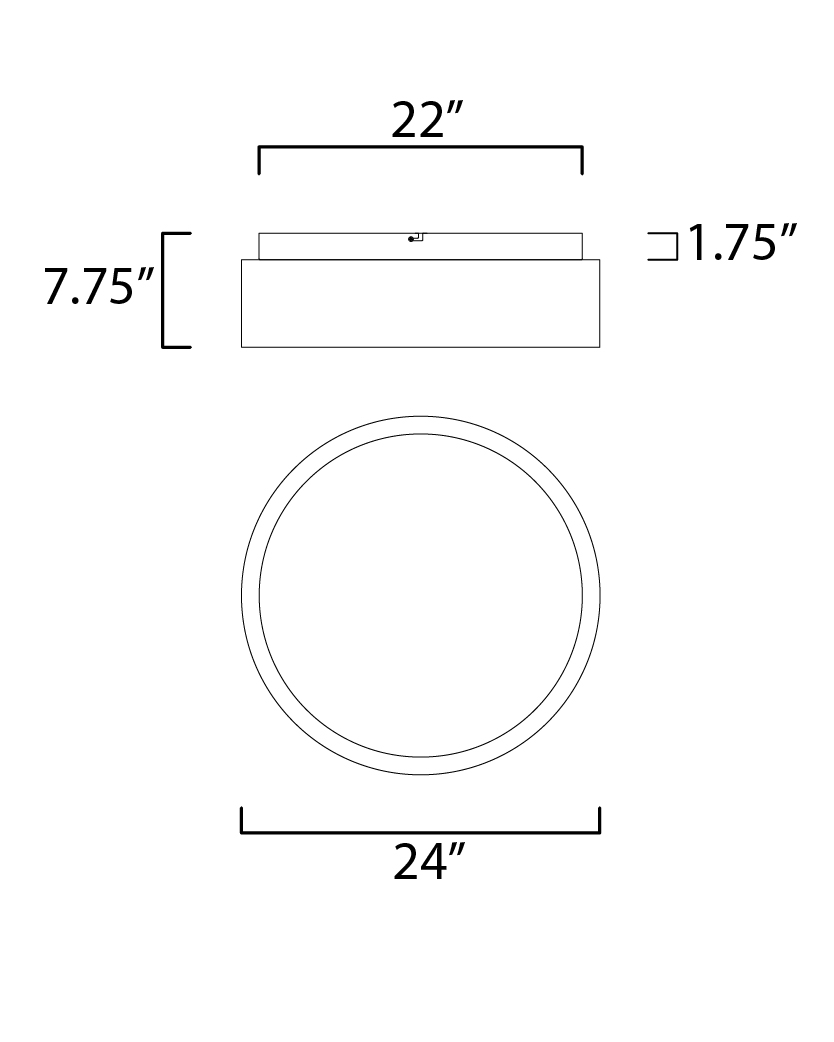

Measurements
Width: 24"
Height: 7.75"
Length: 24"
Wire Length: 8"
Hanging Weight: 39.68 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 22"
Canopy Height: 1.75"
Canopy Length: 22"

Certifications/Other
UL Standard: Dry
Dark Sky: N
Energy Star: No Click for Additional Information on ENERGY STAR
Meet California Title 24 Requirements: N Click for Additional Information on Title 24
