Home > Collections > Traverse LED > Traverse LED Flush/Wall Mount
Traverse LED
Flush/Wall Mount
Traverse LED
Model: SM251518CHP
Sizing: L31" x W31" x H6"
Finish: Champagne
Shade:
Price: $1,198.00

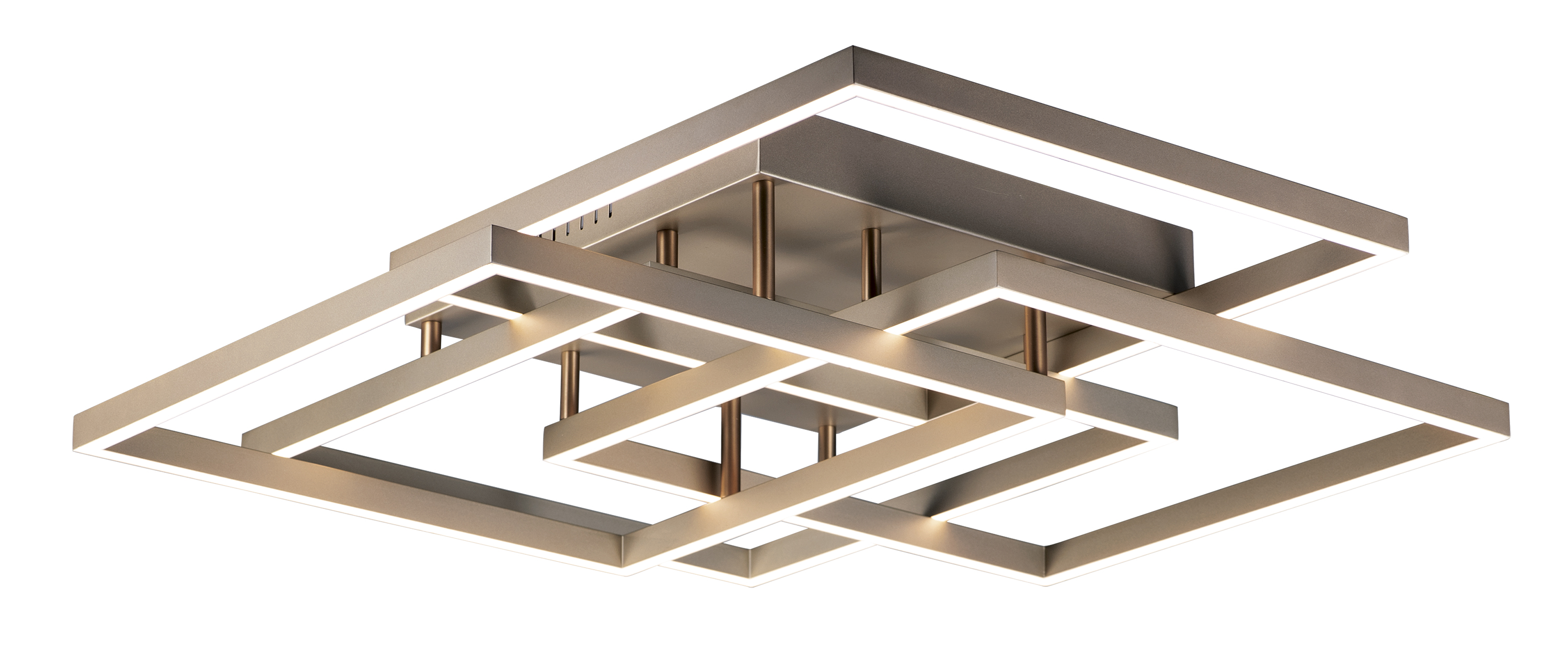

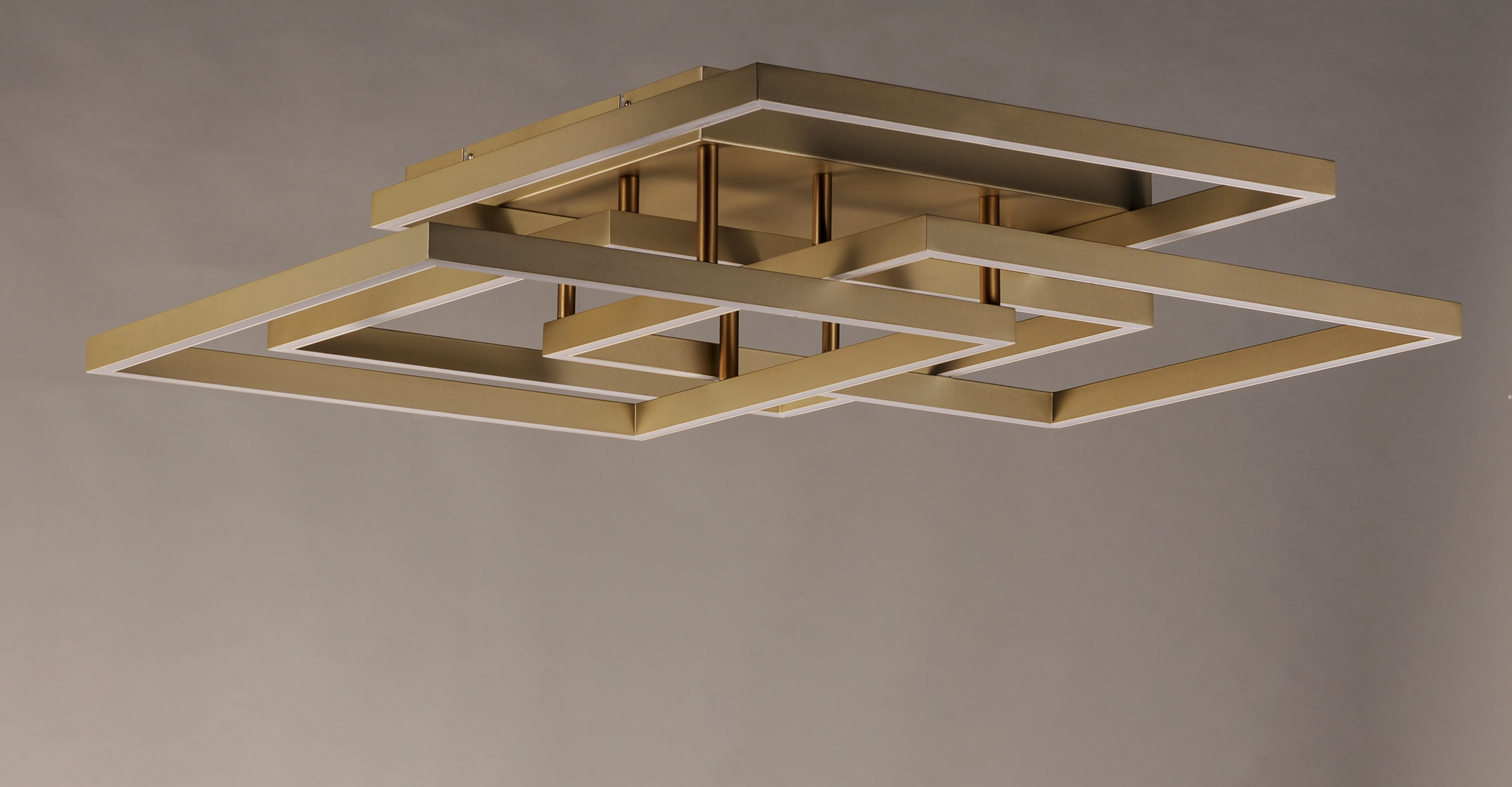

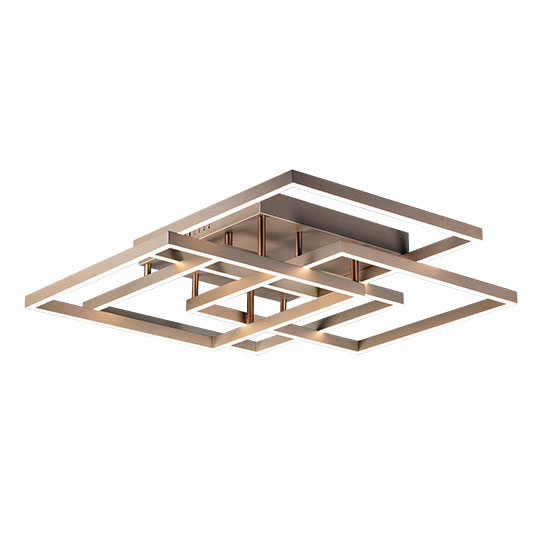

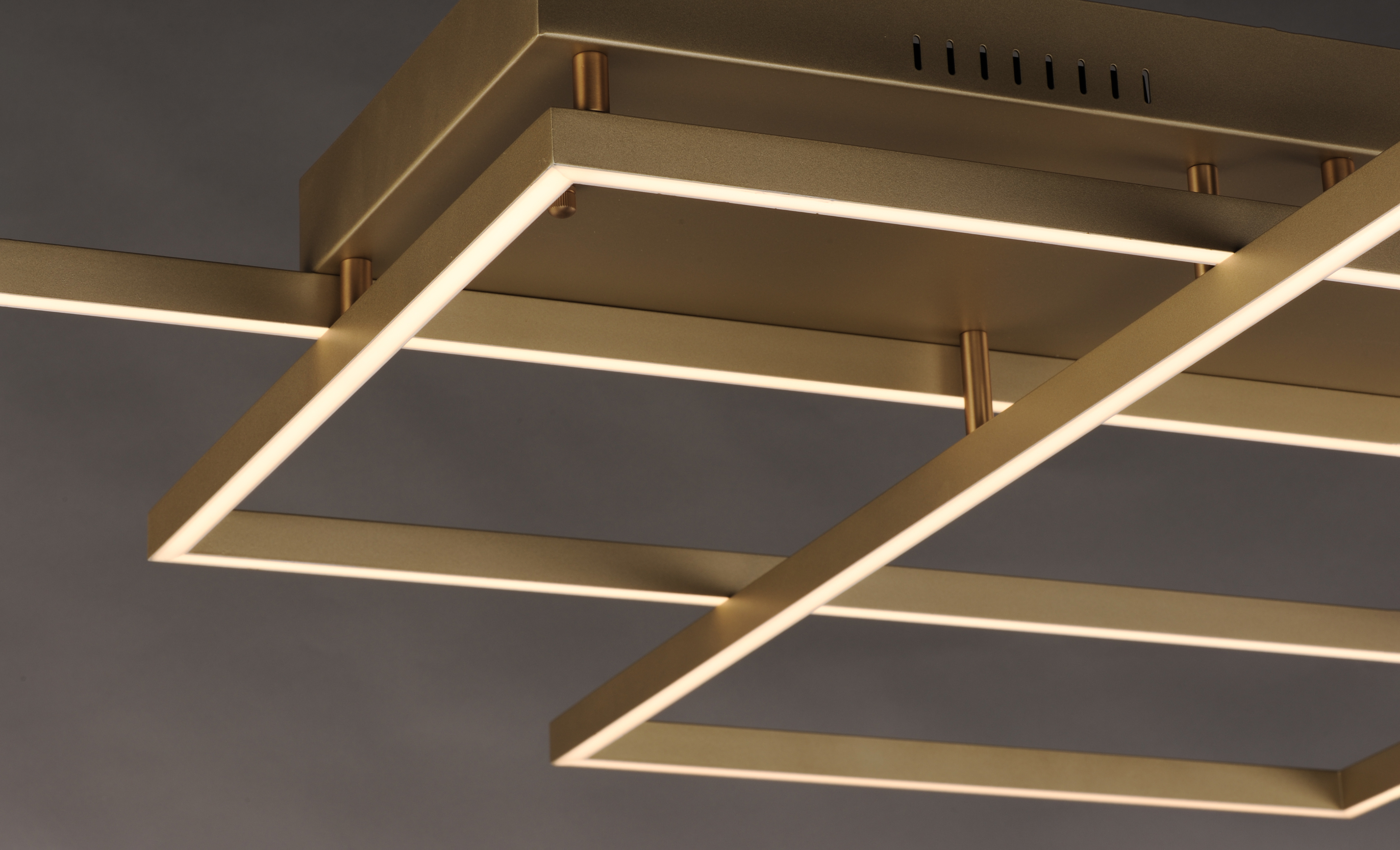

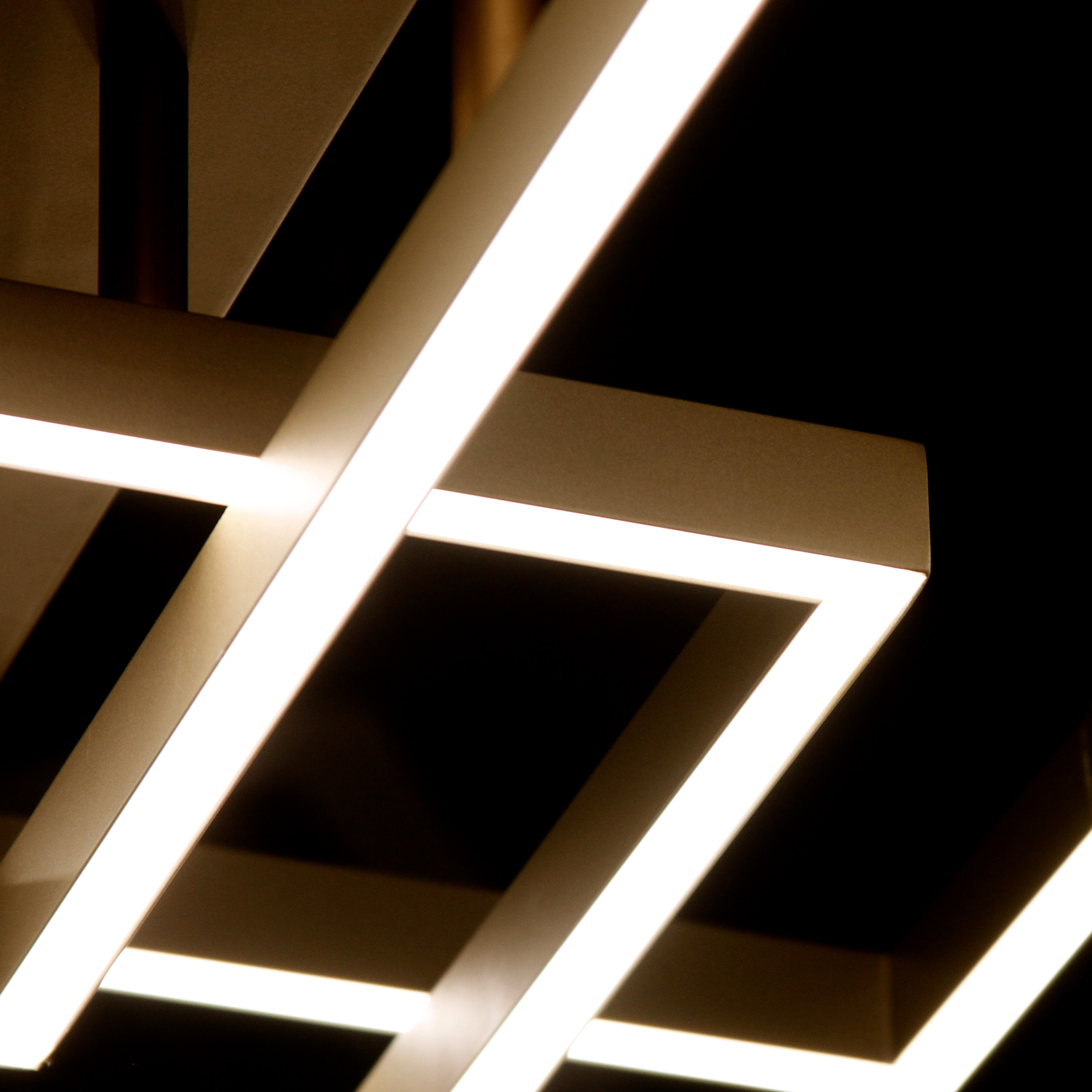

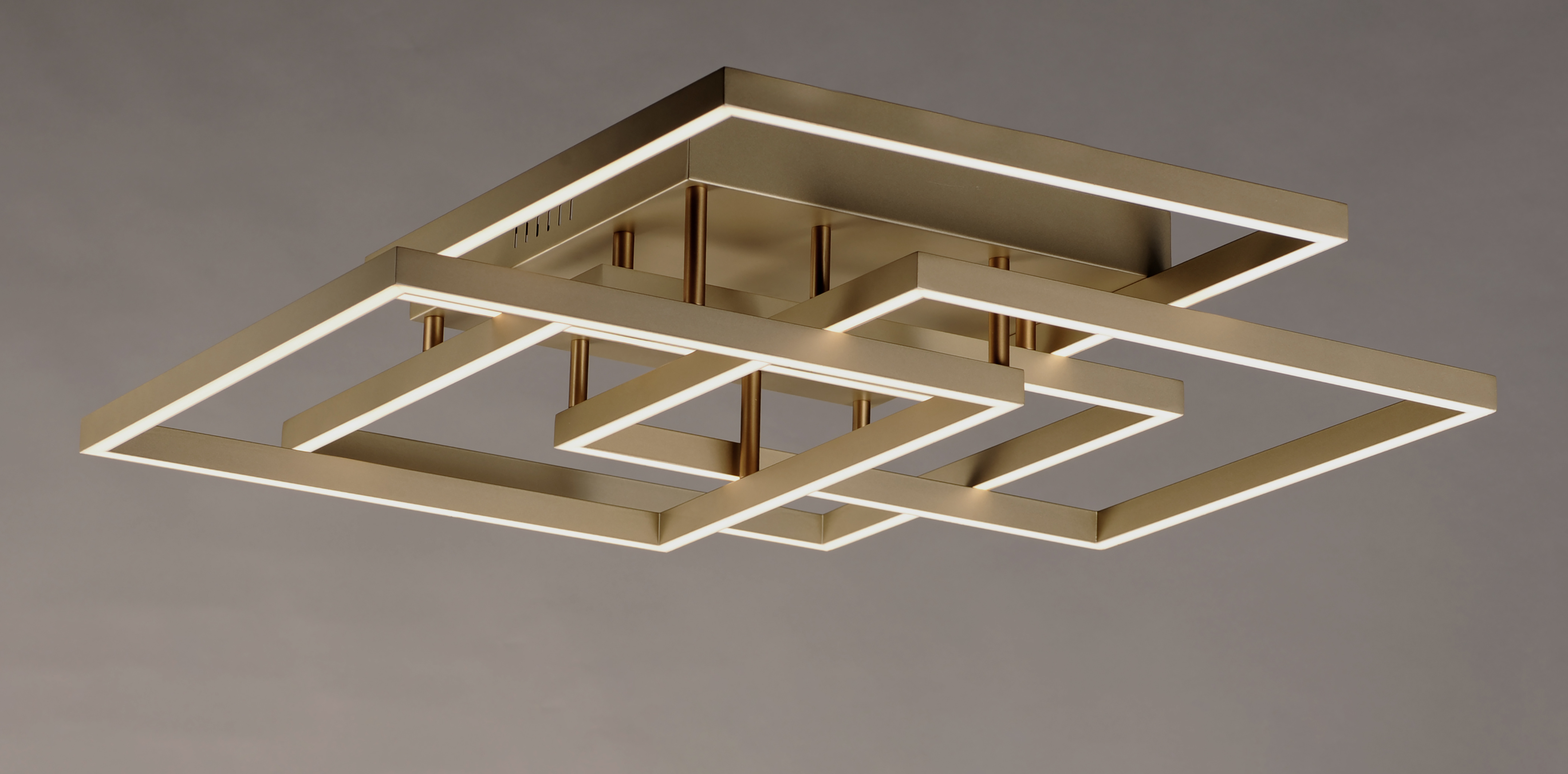

Multiple squares are layered in a geometric pattern to form an interesting lighting sculpture. Enclosed behind the white acrylic lens is a high power LED for even and economical illumination.


OPTIONS


Traverse LED
Traverse LED
SM251518CHP
Flush/Wall Mount
Traverse LED
Lamping
Number of Bulbs: 1
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 112
Fixture Max Wattage: 112
Install Up/Down: NA
Rated Life: 35,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 5500 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
Photo Cell: N
CRI: 80+
Dimmable: ELV or Triac CL
Input Voltage: 120

Measurements
Width: 31"
Height: 6"
Length: 31"
Wire Length: 8"
Hanging Weight: 15 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 15"
Canopy Height: 2"
Canopy Length: 15"

Certifications/Other
UL Standard: Damp
Dark Sky: N
Energy Star: No Click for Additional Information on ENERGY STAR
Meet California Title 24 Requirements: N Click for Additional Information on Title 24



SM251518
Traverse LED
Traverse LED
Traverse LED Flush/Wall Mount
Traverse LED Flush/Wall Mount
Traverse LED Flush/Wall Mount
Traverse LED Flush/Wall Mount
Traverse LED Flush/Wall Mount
Traverse LED


Downloads
Assembly Insturctions - English DOWNLOAD
Specification Sheet DOWNLOAD
IES Photometric DOWNLOAD
Product Image
Infograph Sheet Download Web
Download Rep
Convert Brochure
Diverse Brochure
Parts and Accessories
Schematic Diagram
