Home > Collections > Loop > Loop 24 LED Wall Sconce
Loop

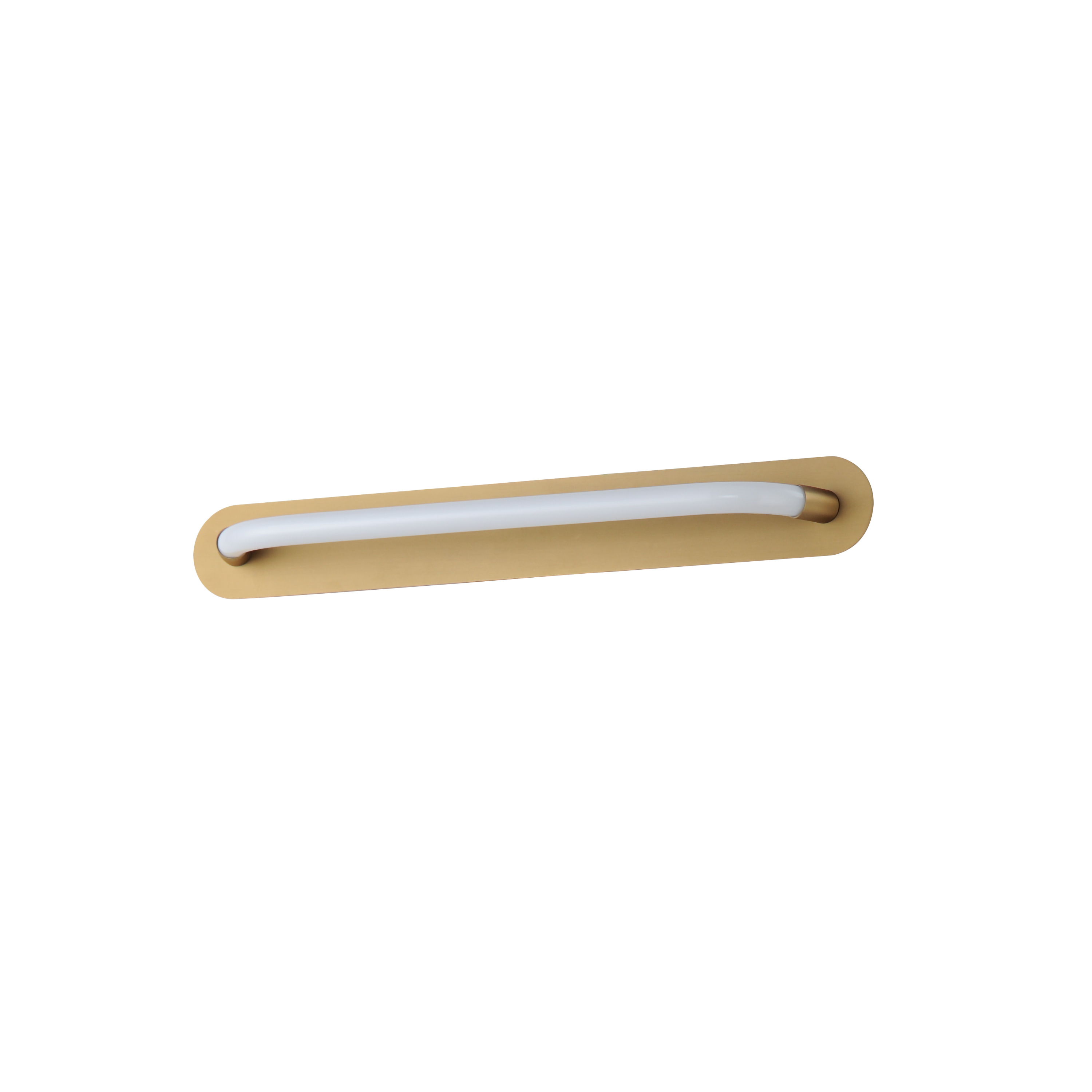

24 LED Wall Sconce
Loop
Model: SM253432WTGLD
Sizing: L3.25" x W3.25" x H24"
Finish: Gold
Shade: White
Price: $218.00
A single loop of white tubing features an omnidirectional LED light. The full backplate can be mounted on a single gang junction box for a clean installation and is available in either Polished Chrome or Gold. A five-inch cover plate is included for installation on standard 4-0 junction boxes.


OPTIONS


Loop
Loop
SM253432WTGLD
24 LED Wall Sconce
Loop
Lamping
Number of Bulbs: 1
Light Type: LED
Bulb Type: DC Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 12
Fixture Max Wattage: 12
Install Up/Down: Omni
Rated Life: 50,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 800 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: Triac, ELV, 0-10V
Input Voltage: 120-277

Measurements
Width: 3.25"
Height: 24"
Length: 3.25"
Extension: 4"
HCO: 1.5"
BP Width: 24"
BP Height: 3.25"
Wire Length: 8"
Hanging Weight: 3.08 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.

Certifications/Other
UL Standard: Dry
ADA Compliant: Yes Click for Additional Information on ADA



Loop
Loop
Loop 24 LED Wall Sconce
Loop 24 LED Wall Sconce
Loop 24 LED Wall Sconce
Loop 24 LED Wall Sconce
Loop 24 LED Wall Sconce
Loop


Downloads
Assembly Insturctions - English DOWNLOAD
Specification Sheet DOWNLOAD
IES Photometric DOWNLOAD
