Home > Signatures > Stratum > Stratum 1-Light LED Pendant
Stratum

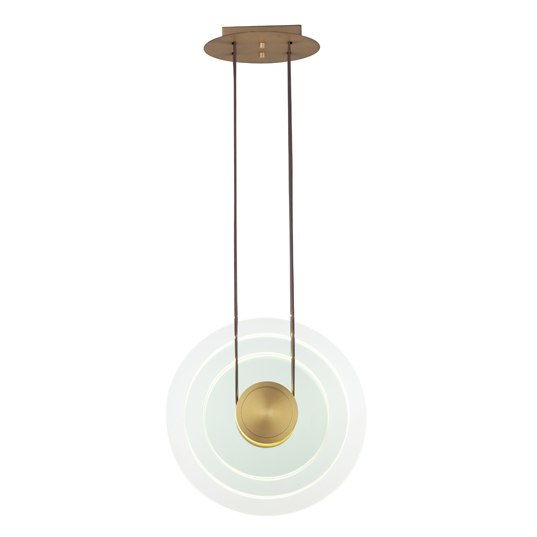

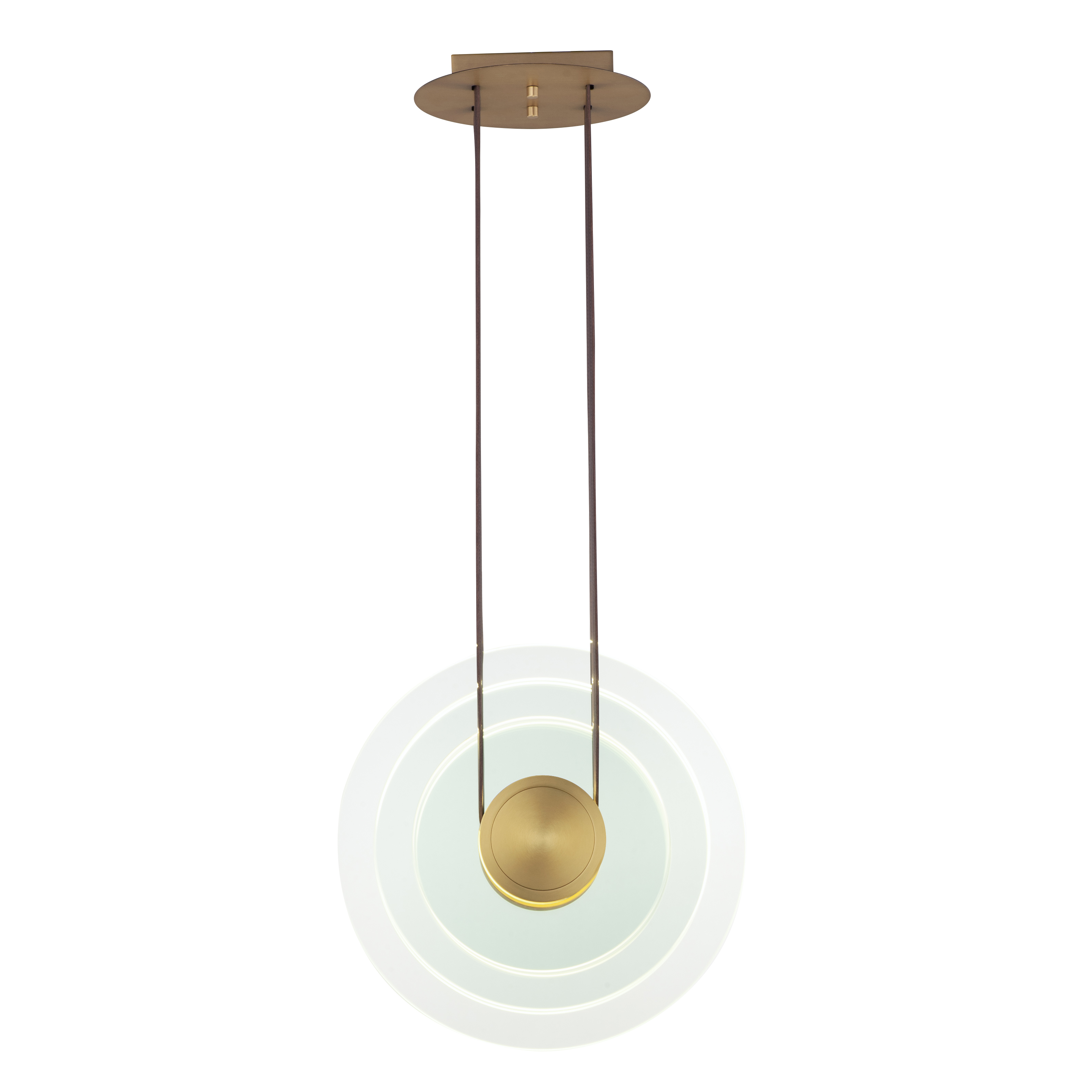

1-Light LED Pendant
Stratum
Model: SM24401CLNAB
Sizing: L16" x W4" x H16"
Finish: Natural Aged Brass
Shade: Clear
Price: $1,320.00

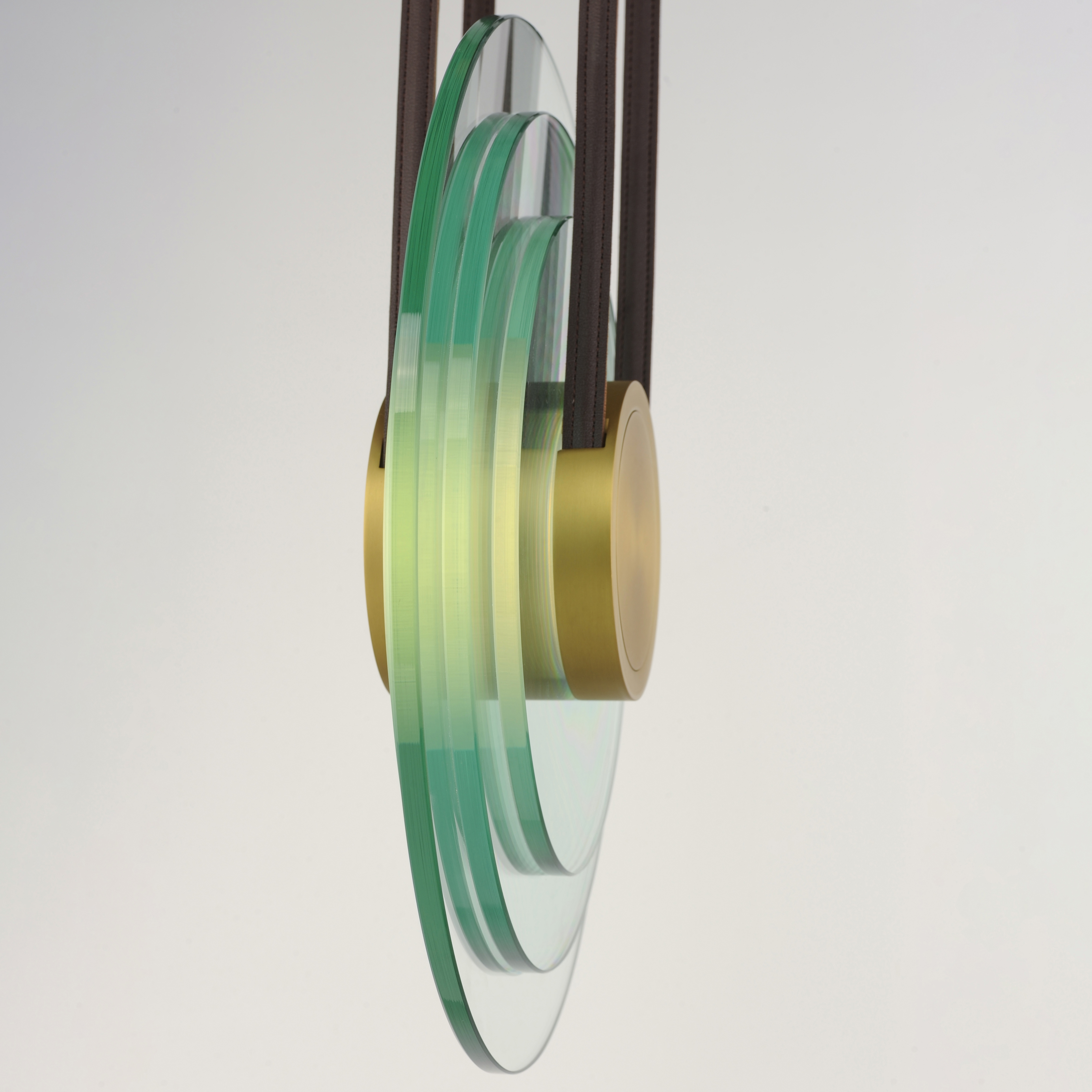

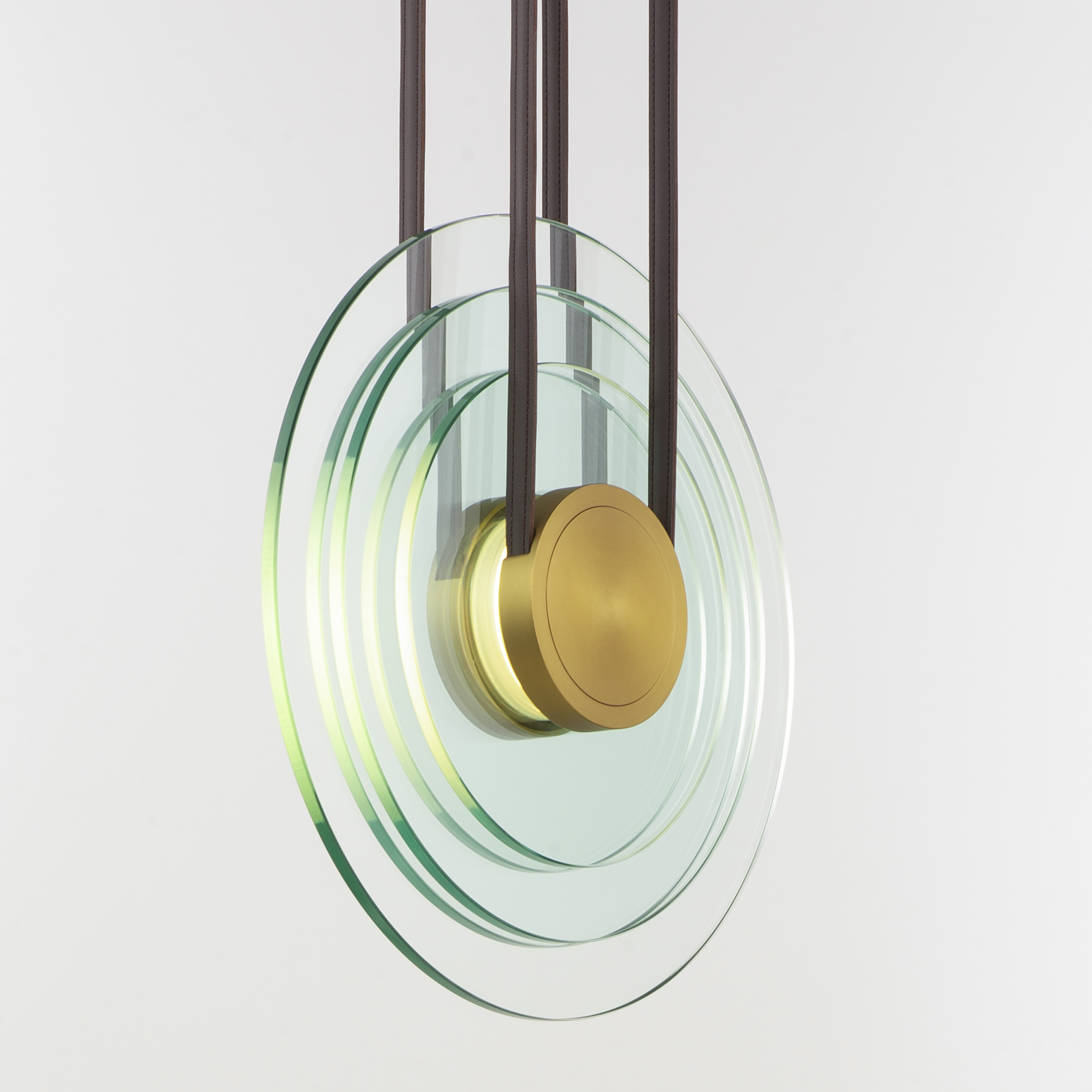

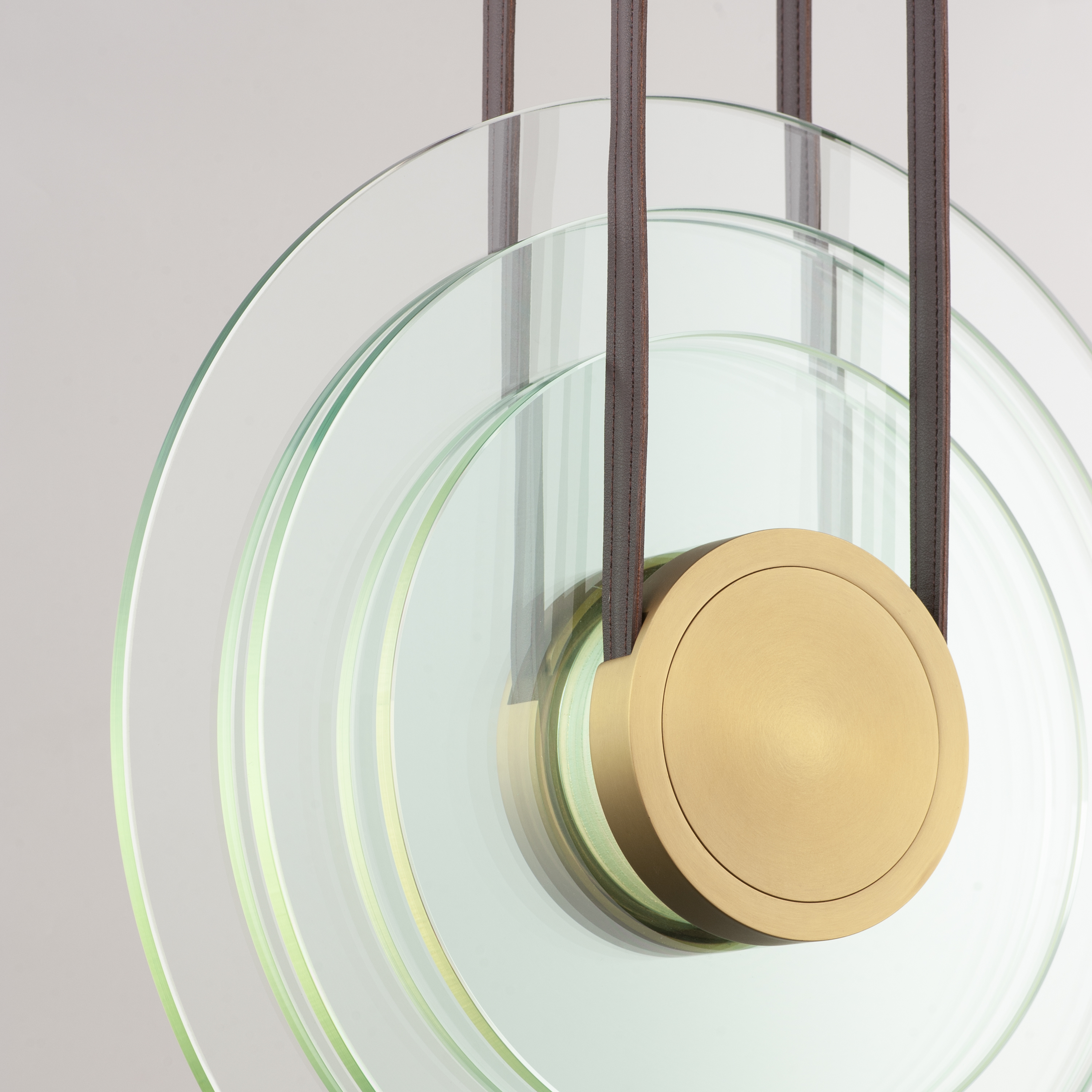

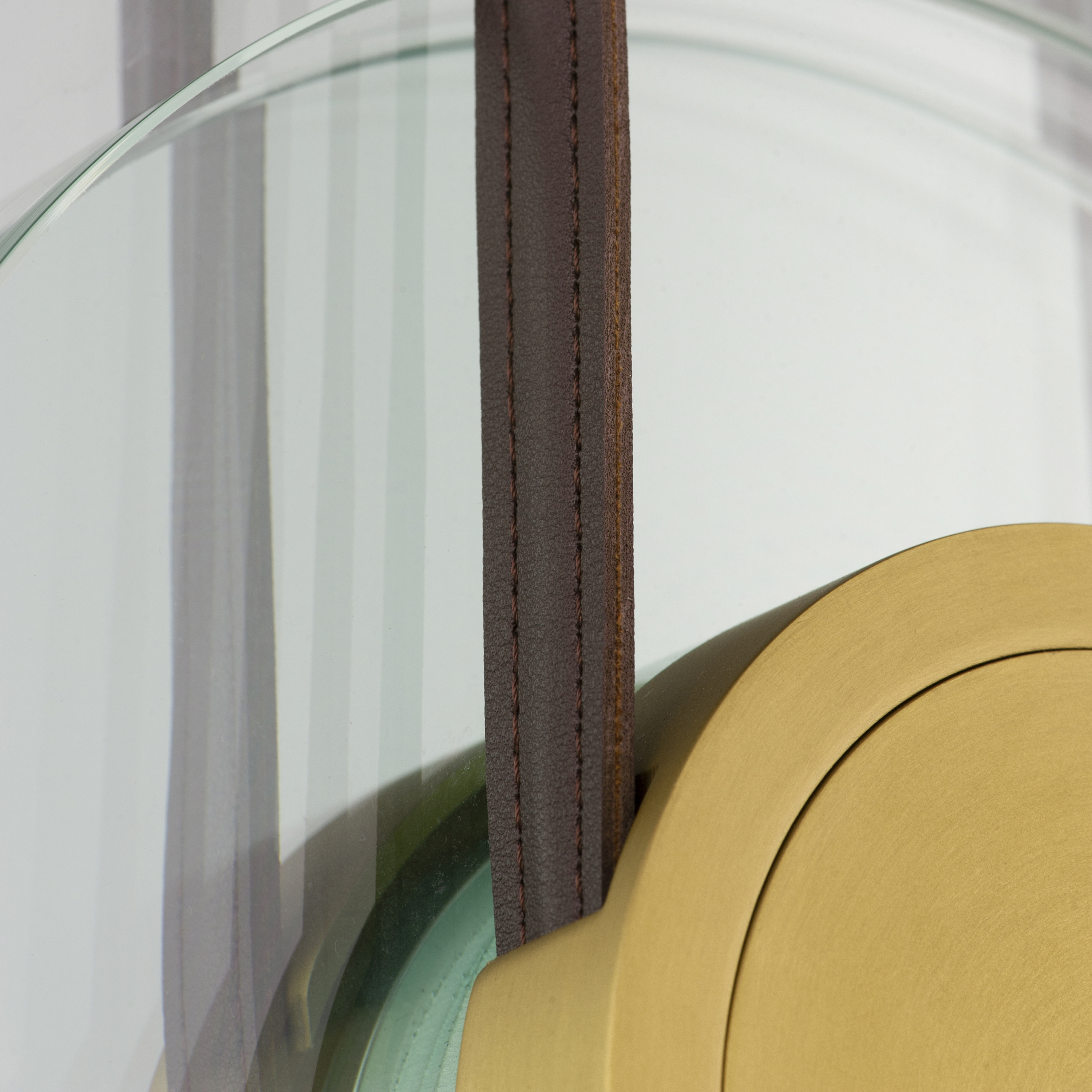

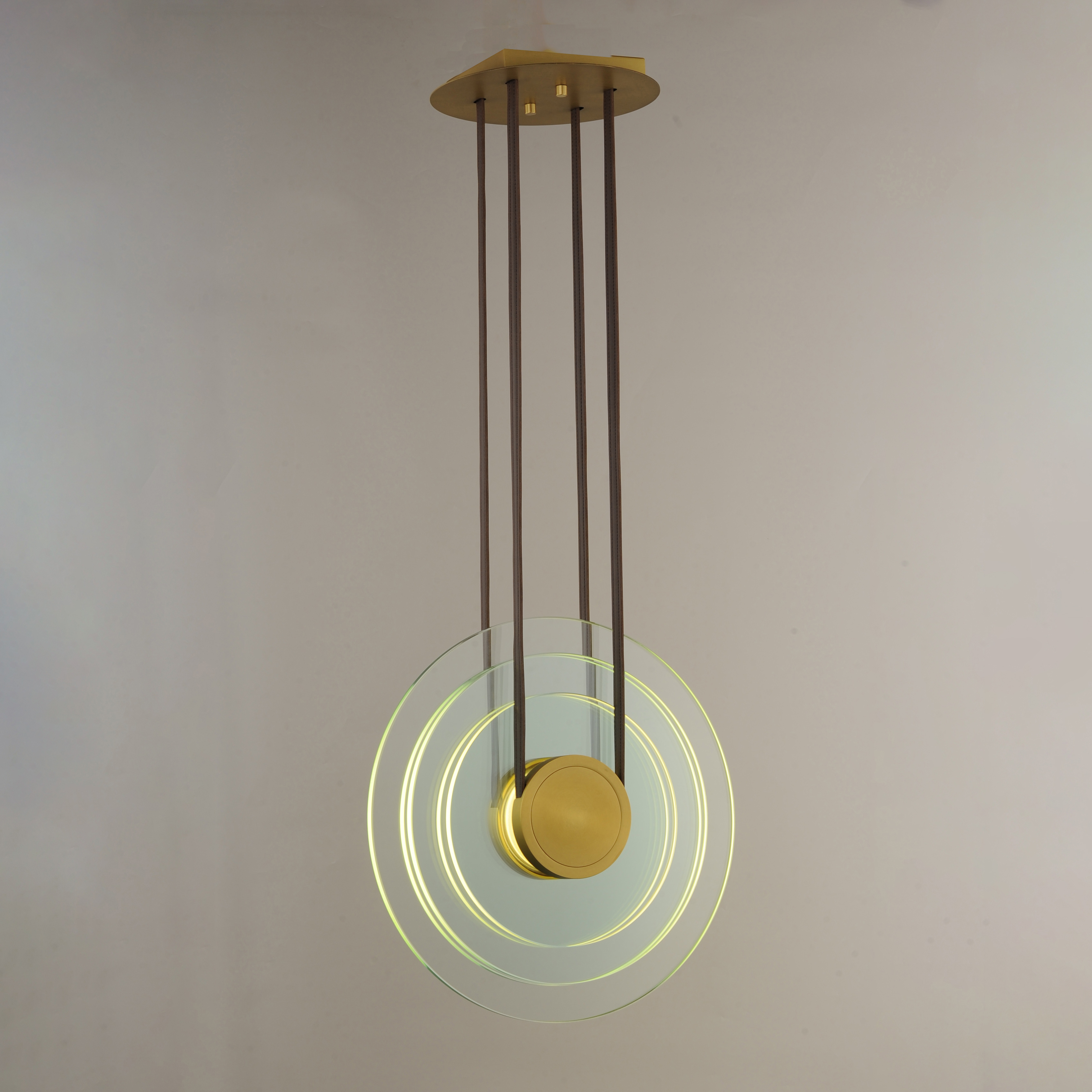

Clear slabs of glass a half inch thick are pressed together between two discs finished in Natural Aged Brass. As the glass approaches the center, each slab of glass increases in dimension creating a gradation of light revealing the glasses' shape and character. Dedicated LED lighting emits from concealed polycarbonate tubes evenly distributing the light source in all directions. These LED tubes terminate at brass discs supported by Dark Brown leather straps that both suspend the pendants and conceal the electrical wiring stitched within them. Elevate your lighting to the next Stratum integrating bygone modern design elements with innovative technologies and expert craftsmanship.


OPTIONS


Stratum
Stratum
SM24401CLNAB
1-Light LED Pendant
Stratum
Lamping
Number of Bulbs: 1
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 16
Fixture Max Wattage: 16
Rated Life: 35,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 590 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: Y
Input Voltage: 120

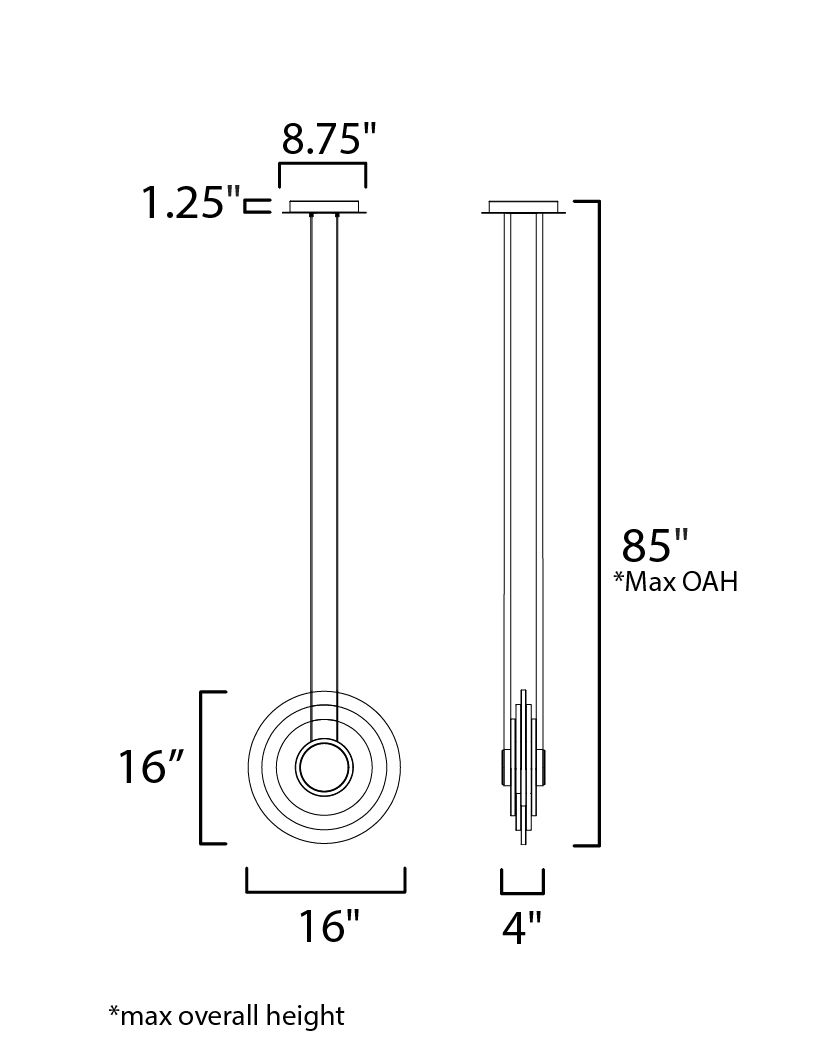

Measurements
Width: 4"
Height: 16"
Length: 16"
Max Overall Height: 85"
Min Overall Height: 22"
Wire Length: 78"
Hanging Weight: 24 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 6.25"
Canopy Height: 1.25"
Canopy Length: 8.75"

Certifications/Other
UL Standard: Dry



SM24401
Stratum
Stratum
Stratum 1-Light LED Pendant
Stratum 1-Light LED Pendant
Stratum 1-Light LED Pendant
Stratum 1-Light LED Pendant
Stratum 1-Light LED Pendant
Stratum 1-Light LED Pendant
Stratum 1-Light LED Pendant
Stratum


Downloads
Assembly Insturctions - English DOWNLOAD
Specification Sheet DOWNLOAD
IES Photometric DOWNLOAD
Product Image
Infograph Sheet Download Web
Download Rep
Convert Brochure
Diverse Brochure
Parts and Accessories
Schematic Diagram
