Home > Collections > Taylor > Taylor 4-Light LED Fixed Rail Track Light
Taylor
4-Light LED Fixed Rail Track Light
Taylor
Model: SM552004WT

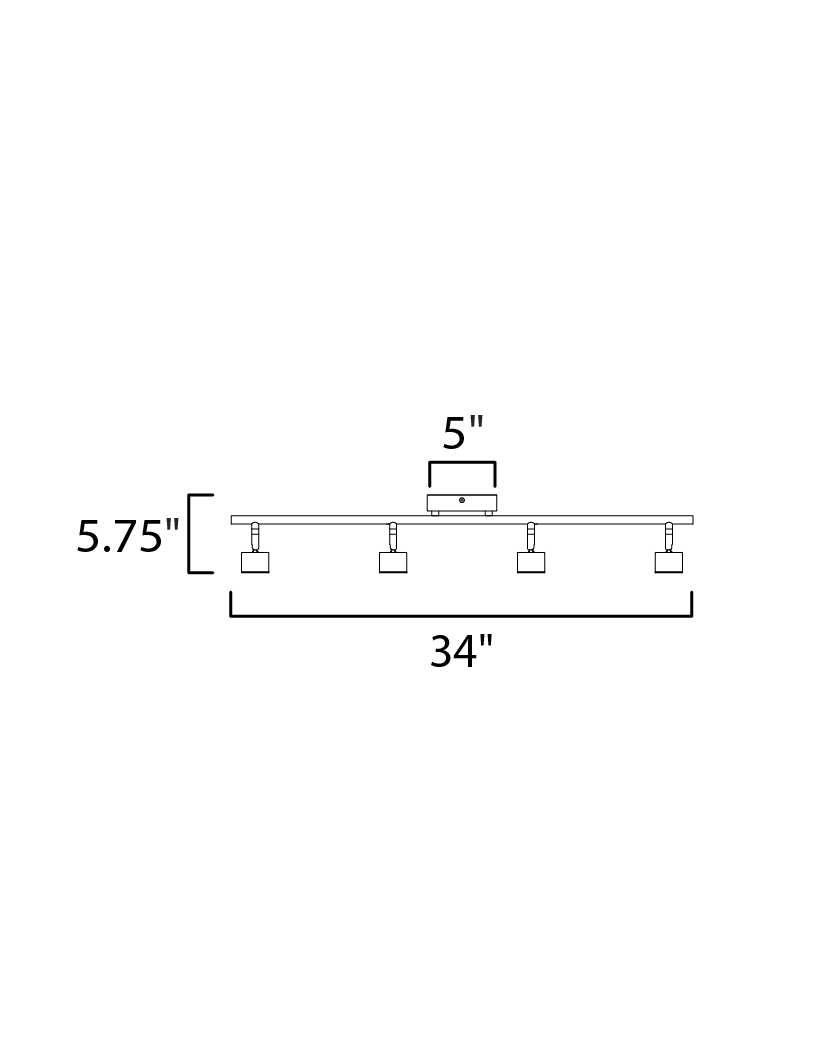

Sizing: L34" x W5" x H5.75"
Finish: White
Shade:
Price: $148.00

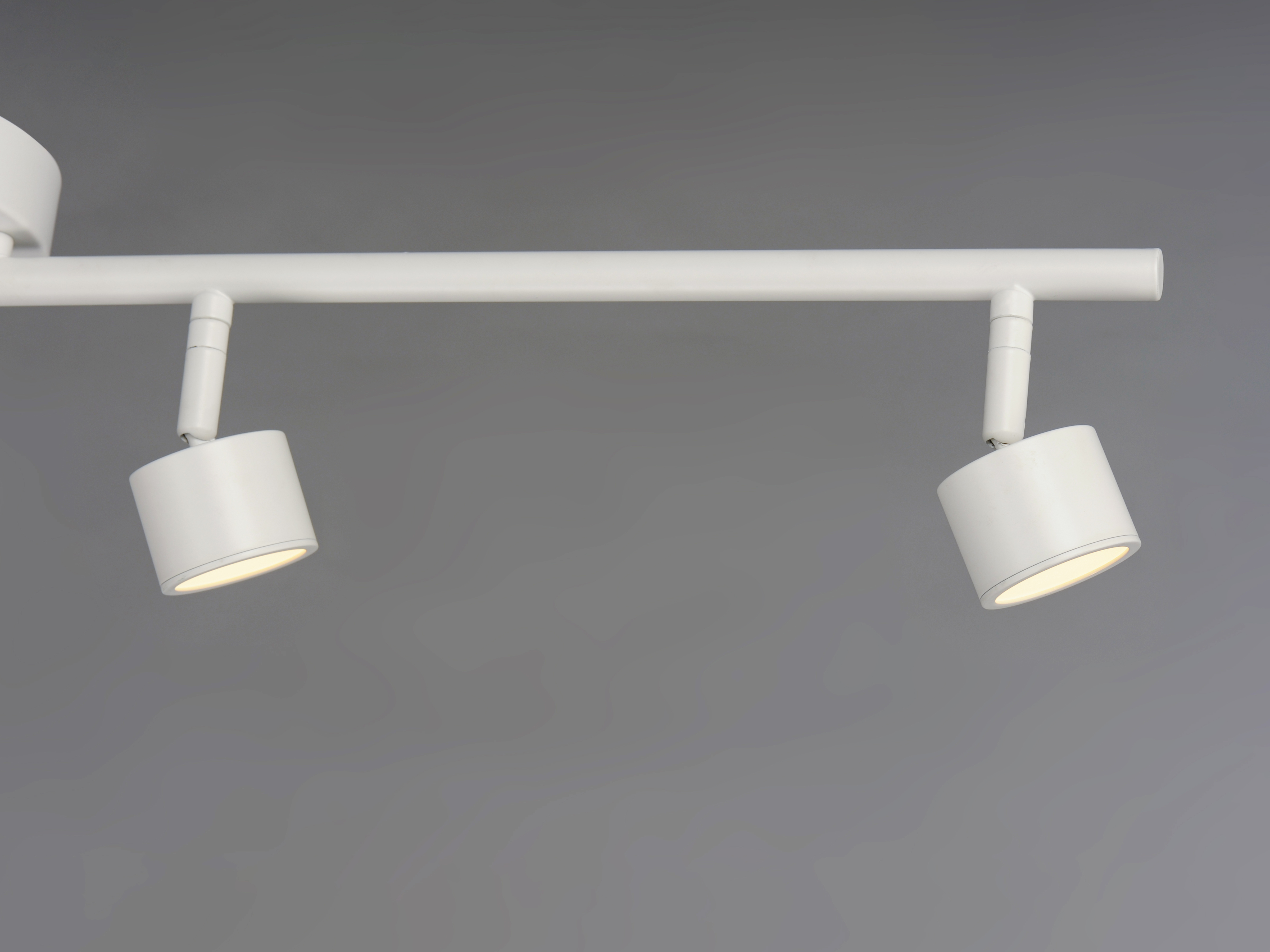

A clean update to the fixed rail track fixture, the Tailor features machined aluminum heads finished in Satin Nickel or Black that swivel to direct the light where it's needed most. Great for family rooms and multi-family applications.


OPTIONS


Taylor
Taylor
SM552004WT
4-Light LED Fixed Rail Track Light
Taylor
Lamping
Number of Bulbs: 4
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 7
Fixture Max Wattage: 28
Install Up/Down: Directional
Rated Life: 40,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 1580 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: ELV at 120V
Input Voltage: 120-277

Measurements
Width: 5"
Height: 5.75"
Length: 34"
BP Width: 5"
BP Height: 1.2"
Wire Length: 8"
Hanging Weight: 2.51 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.

Certifications/Other
UL Standard: Damp
Meet California Title 24 Requirements: JA8 Listed Click for Additional Information on Title 24
