Home > Signatures > Trance > Trance 6-Light LED Pendant
Trance
6-Light LED Pendant
Trance
Model: SM24885DCNAB
Sizing: L17.75" x W17.75" x H39.25"
Finish: Natural Aged Brass
Shade: Dichroic
Price: $3,960.00

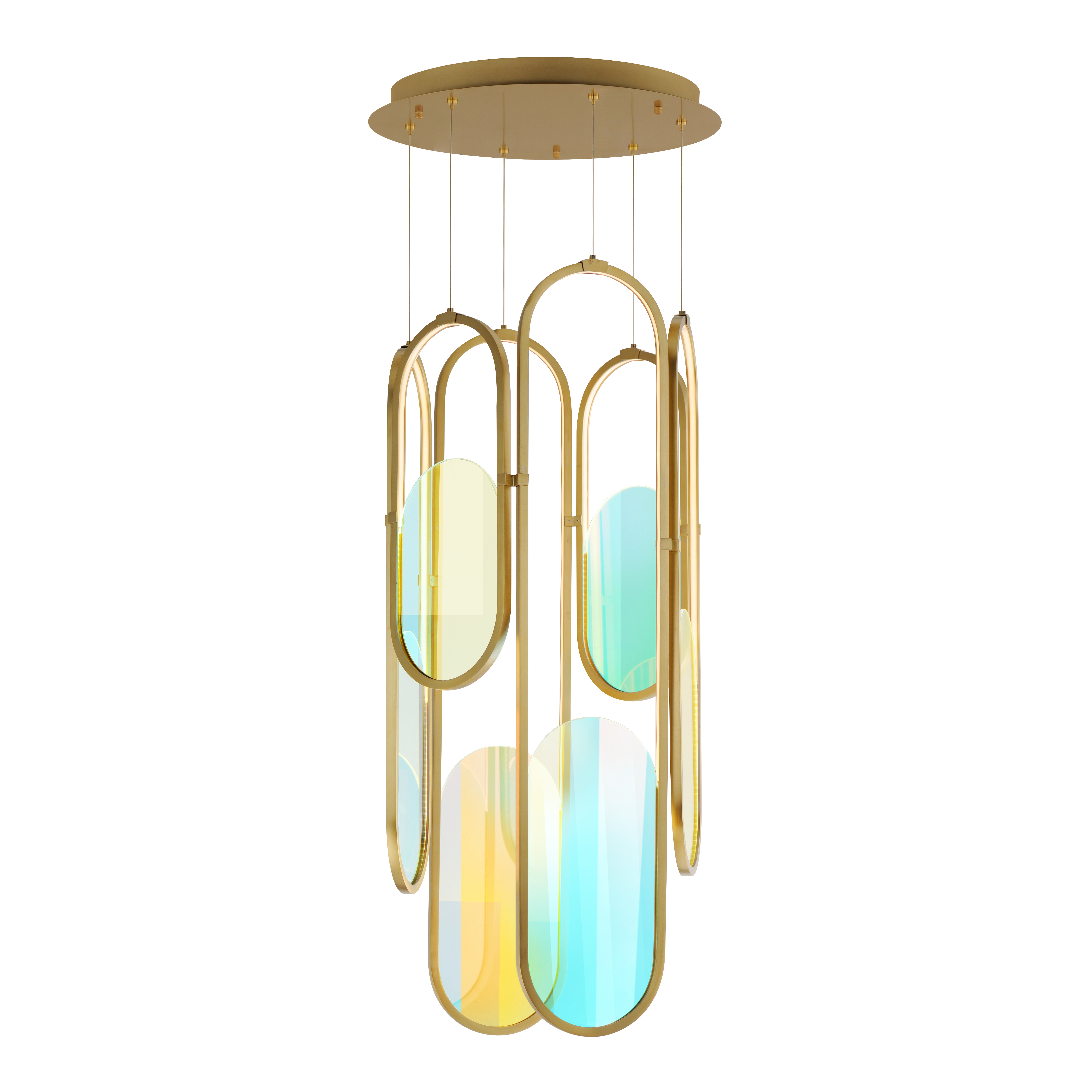

Minimalist in design but loud in its statement, oval frames in Natural Aged Brass illuminate floating dichroic glass panels. Subtle iridescent hues become more vivid as the panels layer adding a colorful element to the design. Intentionally designed with various dimensions for the panels, they can be fixed together in polygonal configurations, or simply free-float on the thin low voltage cables that suspend each frame.


OPTIONS


Trance
Trance
SM24885DCNAB
6-Light LED Pendant
Trance
Lamping
Number of Bulbs: 6
Light Type: LED
Bulb Type: DC Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 17
Fixture Max Wattage: 102
Rated Life: 20,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 4800 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: Triac
Input Voltage: 120-277

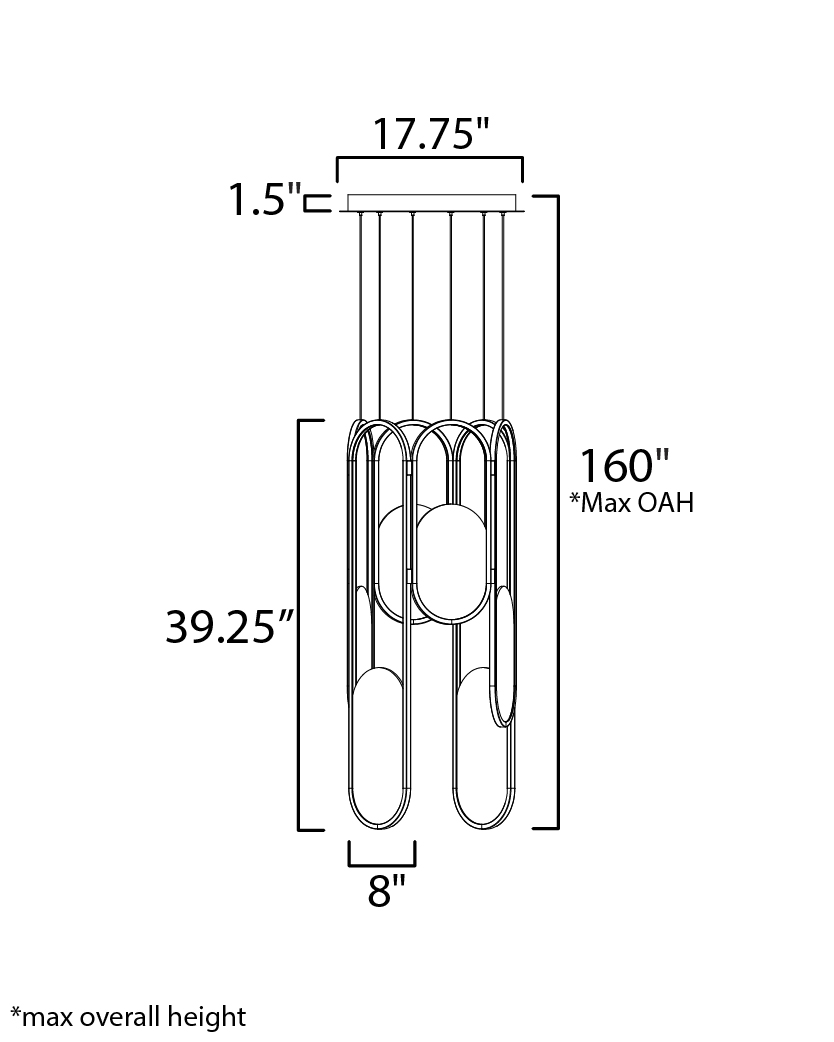

Measurements
Width: 17.75"
Height: 39.25"
Length: 17.75"
Max Overall Height: 160"
Min Overall Height: 41"
Wire Length: 120"
Hanging Weight: 28.5 lb.
UPS Shippable: Oversize Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 16.25"
Canopy Height: 1.5"
Canopy Length: 16.25"

Certifications/Other
UL Standard: Dry



SM24885
Trance
Trance
Trance 6-Light LED Pendant
Trance 6-Light LED Pendant
Trance 6-Light LED Pendant
Trance 6-Light LED Pendant
Trance


Downloads
Assembly Insturctions - English DOWNLOAD
Specification Sheet DOWNLOAD
IES Photometric DOWNLOAD
Product Image
Infograph Sheet Download Web
Download Rep
Convert Brochure
Diverse Brochure
