Calibro

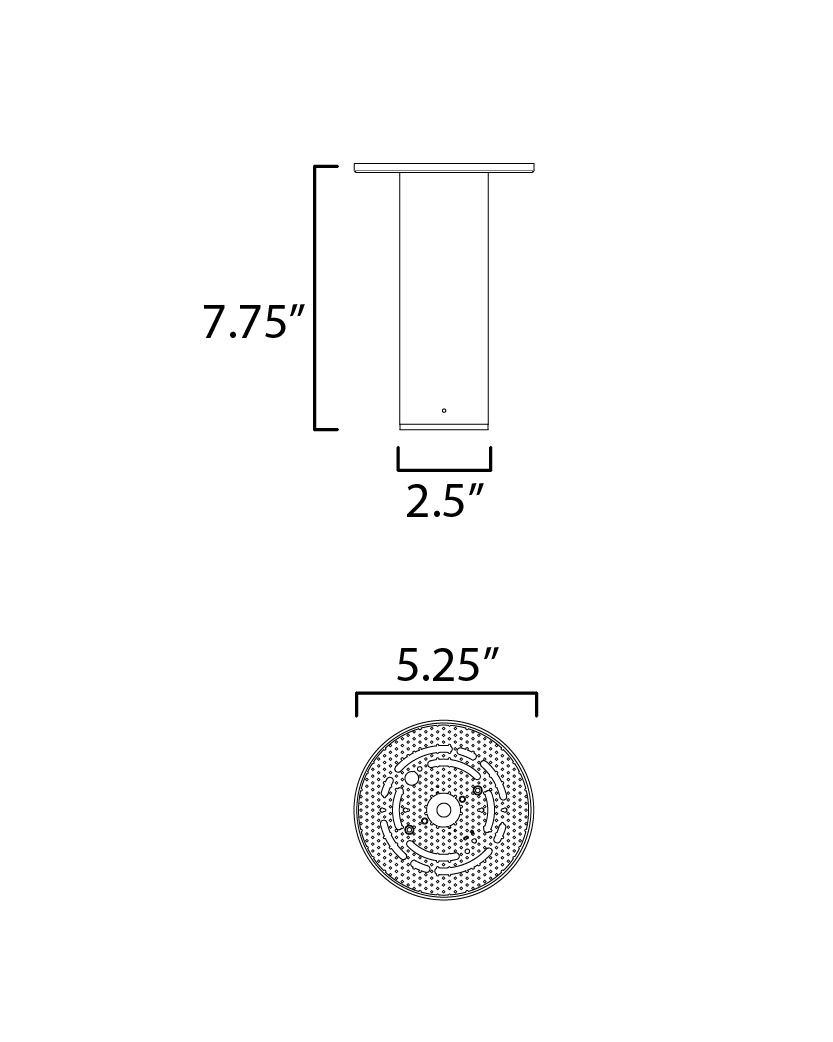

SM866430ABZ | W5.25" x H7.75"

This classic cylinder design has been made ultra-thin intending its use in applications requiring ADA compliance. The sconce casts generous lighting both upwards and downwards using dedicated, high-powered LED. Concealed within the frame, there is a range voltage 120-277V LED driver making this a great option for light commercial as well as residential applications. Available in Matte Black, Architectural Bronze and White outdoor powder coat finishes. For Dark Sky applications, make use of the optional Dark Sky Cap available.
Finish Options
  • Architectural Bronze
  • Black
  • White
Collection: Calibro
Type: Outdoor Flush Mount

Material: Aluminum, Glass

Finish: Architectural Bronze
ABZ

LAMPING

Number of Bulb: 1

Light Type: LED

Bulb Type: DC Integrated

Bulb Max Wattage: 7

Total Wattage: 07

Rated Life: 25,000 Hours

Rated Lumens: 700

Color Temperature: 3000 K

Bulb(s): Integrated

CRI: 90

Dimmable: Triac or ELV at 120V

Input Voltage: 120-277

MEASURMENTS

Width: 5.25"

Height: 7.75"

Wire Length: 8"

Hanging Weight: 1.54 lb.

UPS Shippable: Yes

Canopy Width: 5.25"
Canopy Height: 0.25"
Canopy Length: 5.25"

CERTIFICATIONS/ OTHER

Safety Rating: Damp

Energy Star: Yes

Meet California Title 24 Requirements: Yes


This classic cylinder design has been made ultra-thin intending its use in applications requiring ADA compliance. The sconce casts generous lighting both upwards and downwards using dedicated, high-powered LED. Concealed within the frame, there is a range voltage 120-277V LED driver making this a great option for light commercial as well as residential applications. Available in Matte Black, Architectural Bronze and White outdoor powder coat finishes. For Dark Sky applications, make use of the optional Dark Sky Cap available.
