Calibro

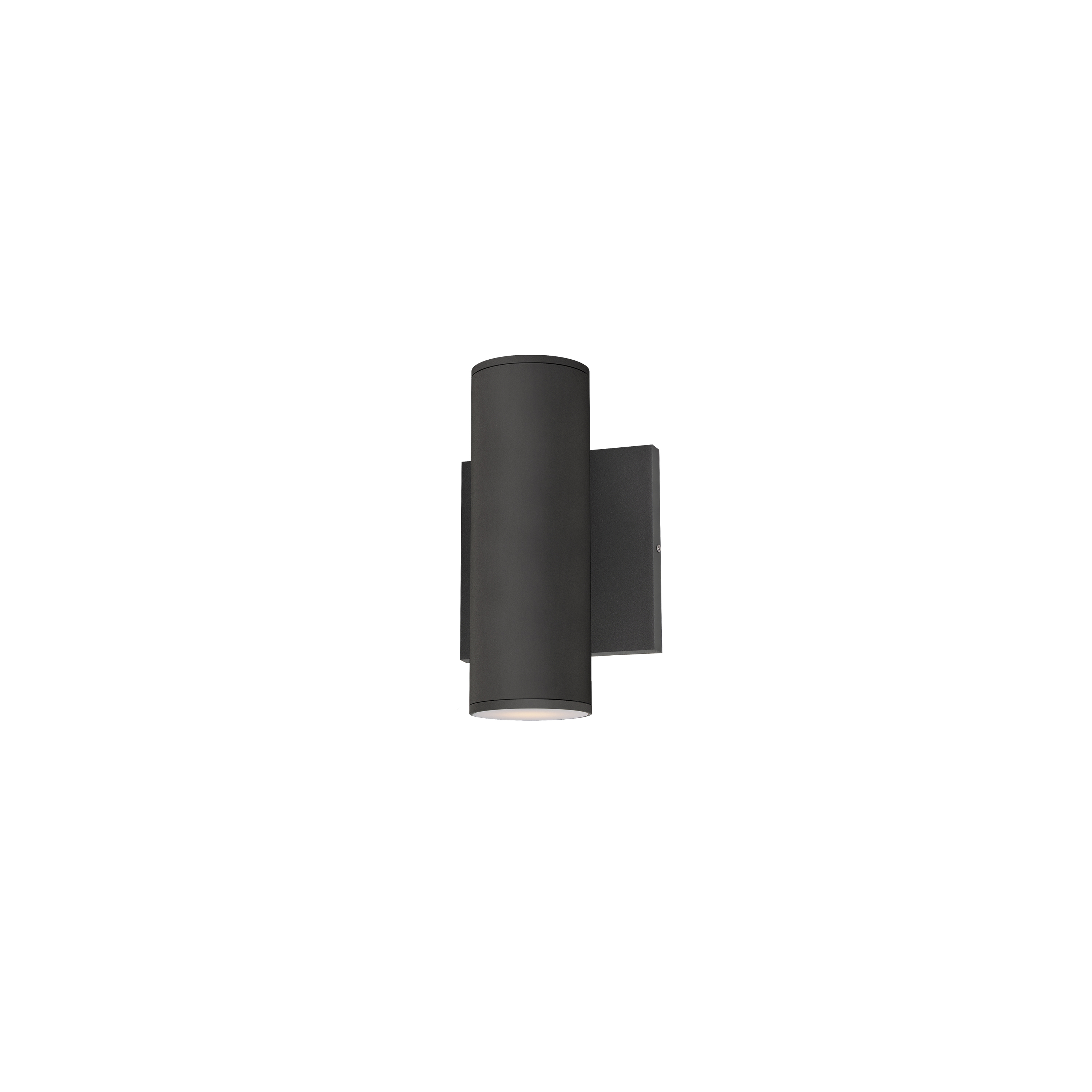

SM866431ABZ | W2.5" x H7.5"

This classic cylinder design has been made ultra-thin intending its use in applications requiring ADA compliance. The sconce casts generous lighting both upwards and downwards using dedicated, high-powered LED. Concealed within the frame, there is a range voltage 120-277V LED driver making this a great option for light commercial as well as residential applications. Available in Matte Black, Architectural Bronze and White outdoor powder coat finishes. For Dark Sky applications, make use of the optional Dark Sky Cap available.
Finish Options
  • Architectural Bronze
  • White
  • Black
Collection: Calibro
Type: Outdoor Wall Mount

Material: Aluminum, Glass

Finish: Architectural Bronze
ABZ

LAMPING

Number of Bulb: 2

Light Type: LED

Bulb Type: DC Integrated

Bulb Max Wattage: 7

Total Wattage: 14

Lighting Direction: Up & Down

Install Up/Down: Up

Rated Life: 25,000 Hours

Rated Lumens: 1400

Color Temperature: 3000 K

Bulb(s): Integrated

CRI: 90

Dimmable: Triac

Input Voltage: 120-277

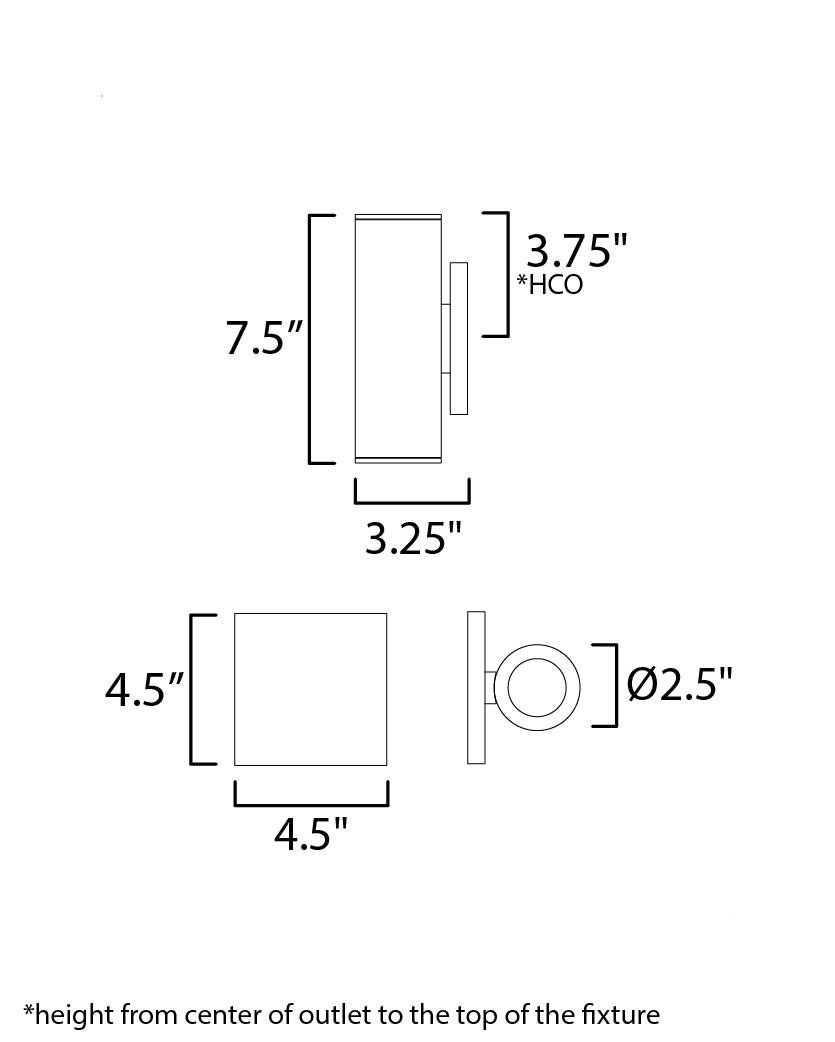

MEASURMENTS

Width: 2.5"

Height: 7.5"

Extension: 3.25"

HCO: 3.75"

BP Width: 4.5"

BP Height: 4.5"

Wire Length: 8"

Hanging Weight: 2 lb.

UPS Shippable: Yes

CERTIFICATIONS/ OTHER

Safety Rating: Wet

ADA Compliant: Yes


This classic cylinder design has been made ultra-thin intending its use in applications requiring ADA compliance. The sconce casts generous lighting both upwards and downwards using dedicated, high-powered LED. Concealed within the frame, there is a range voltage 120-277V LED driver making this a great option for light commercial as well as residential applications. Available in Matte Black, Architectural Bronze and White outdoor powder coat finishes. For Dark Sky applications, make use of the optional Dark Sky Cap available.
