CounterMax 5K

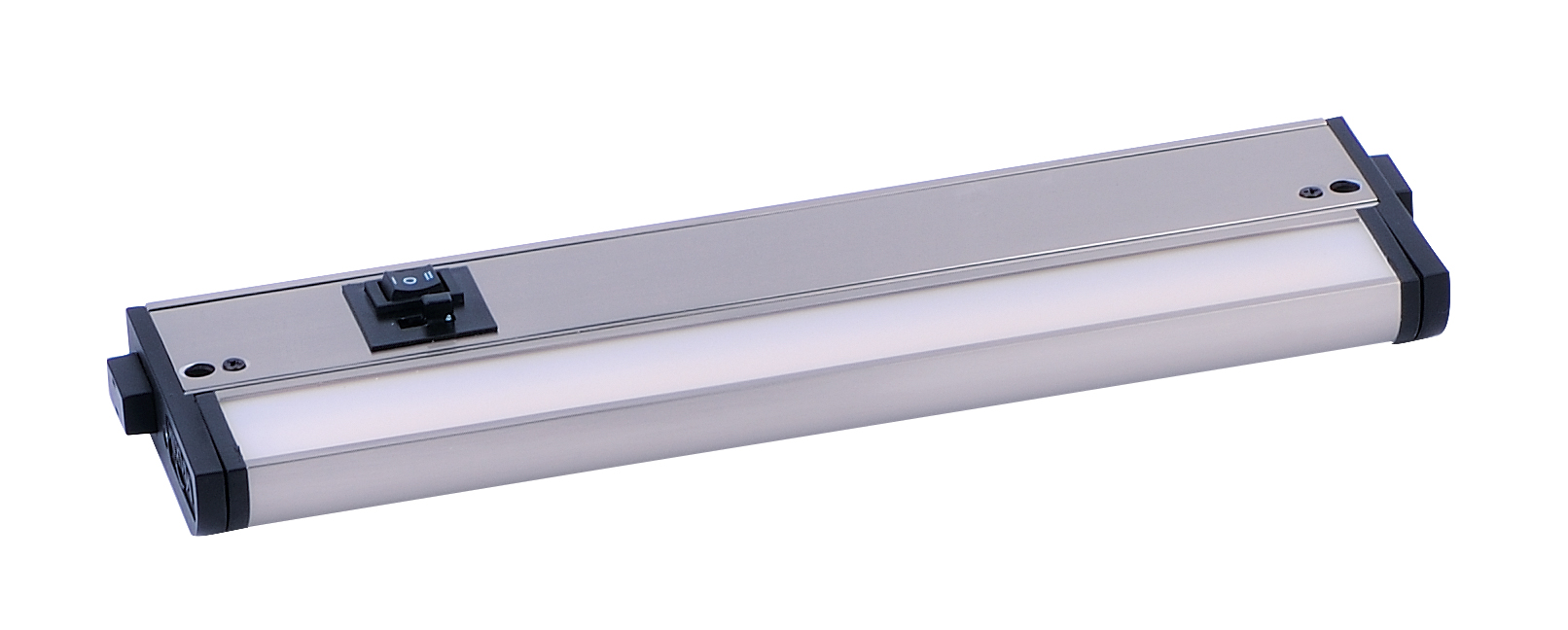

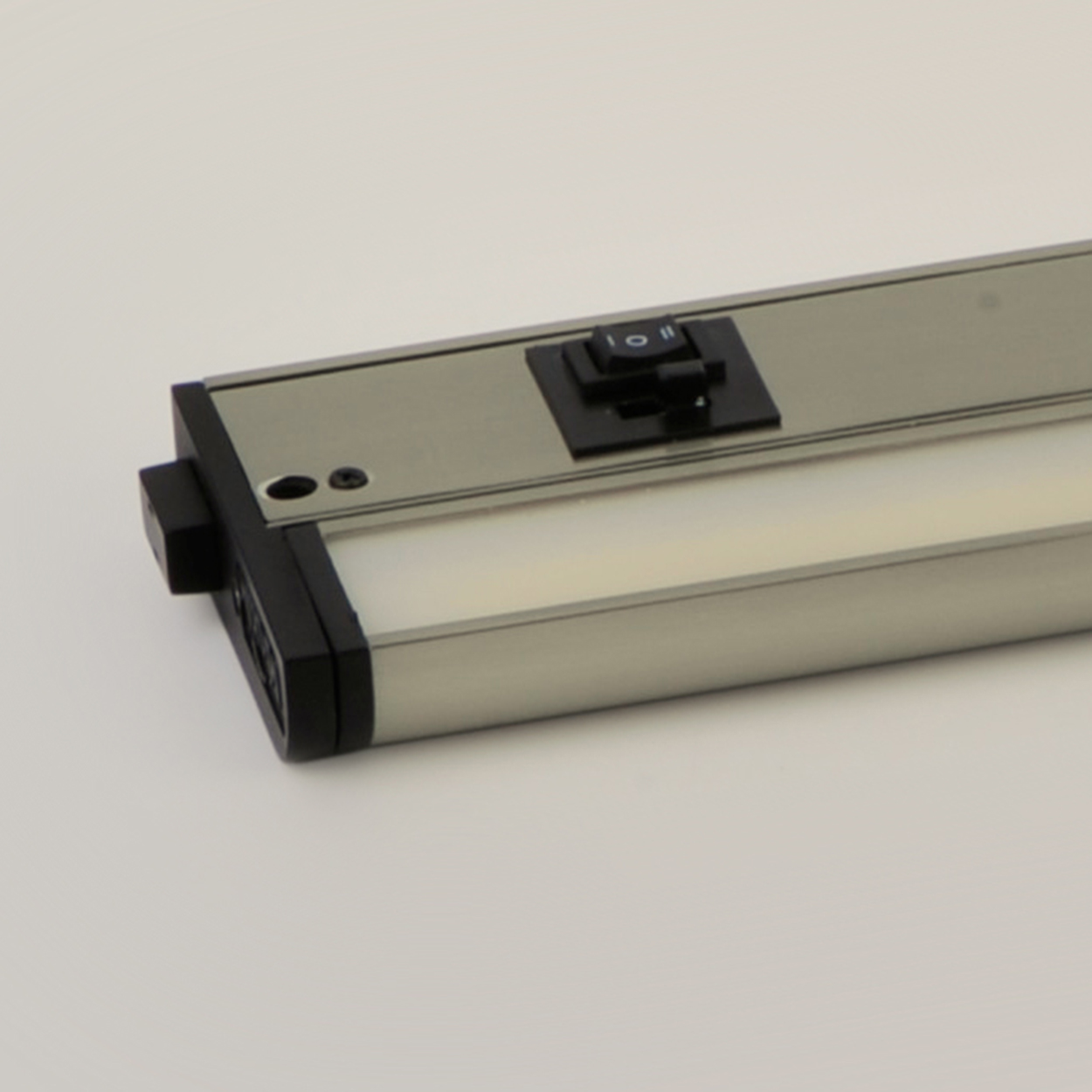

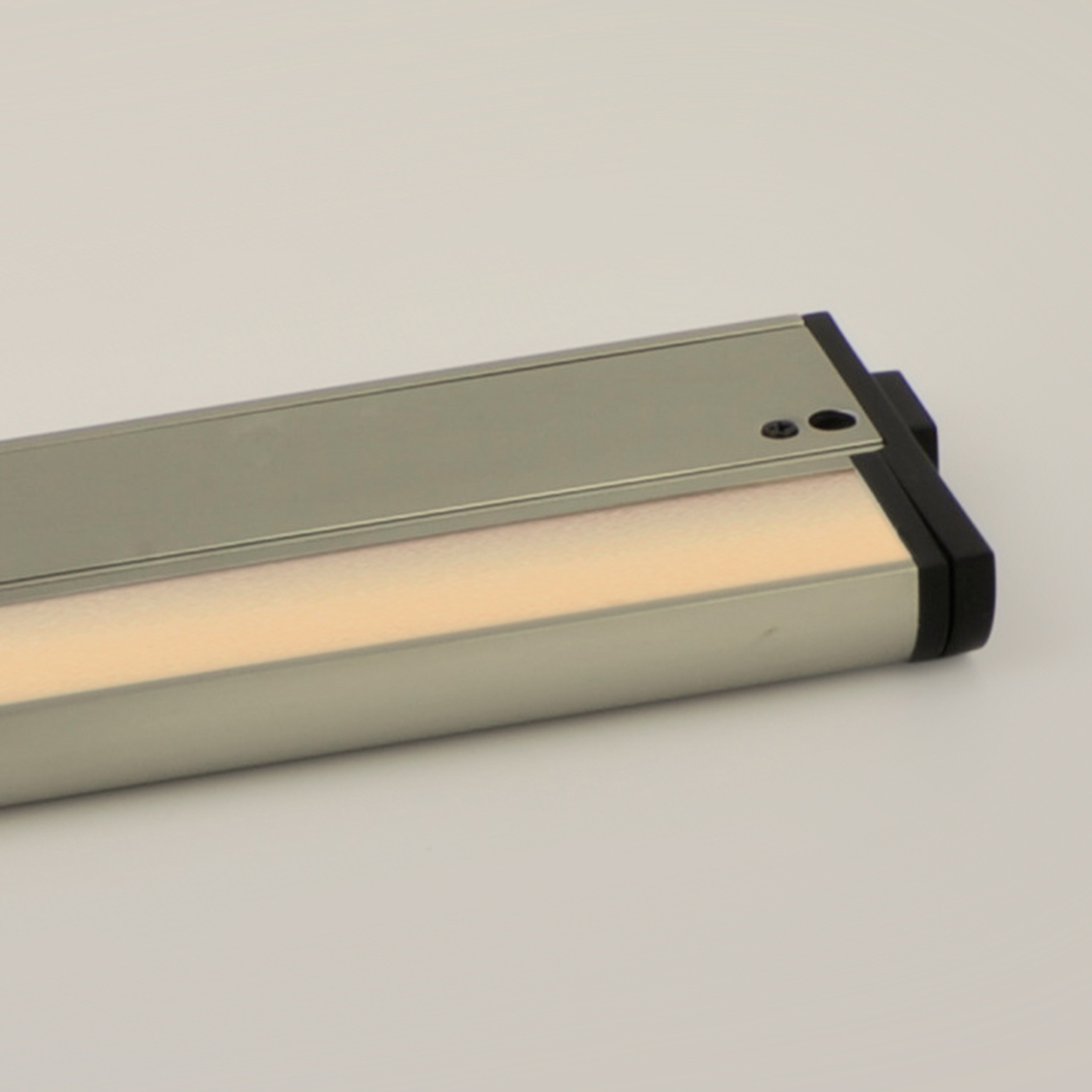

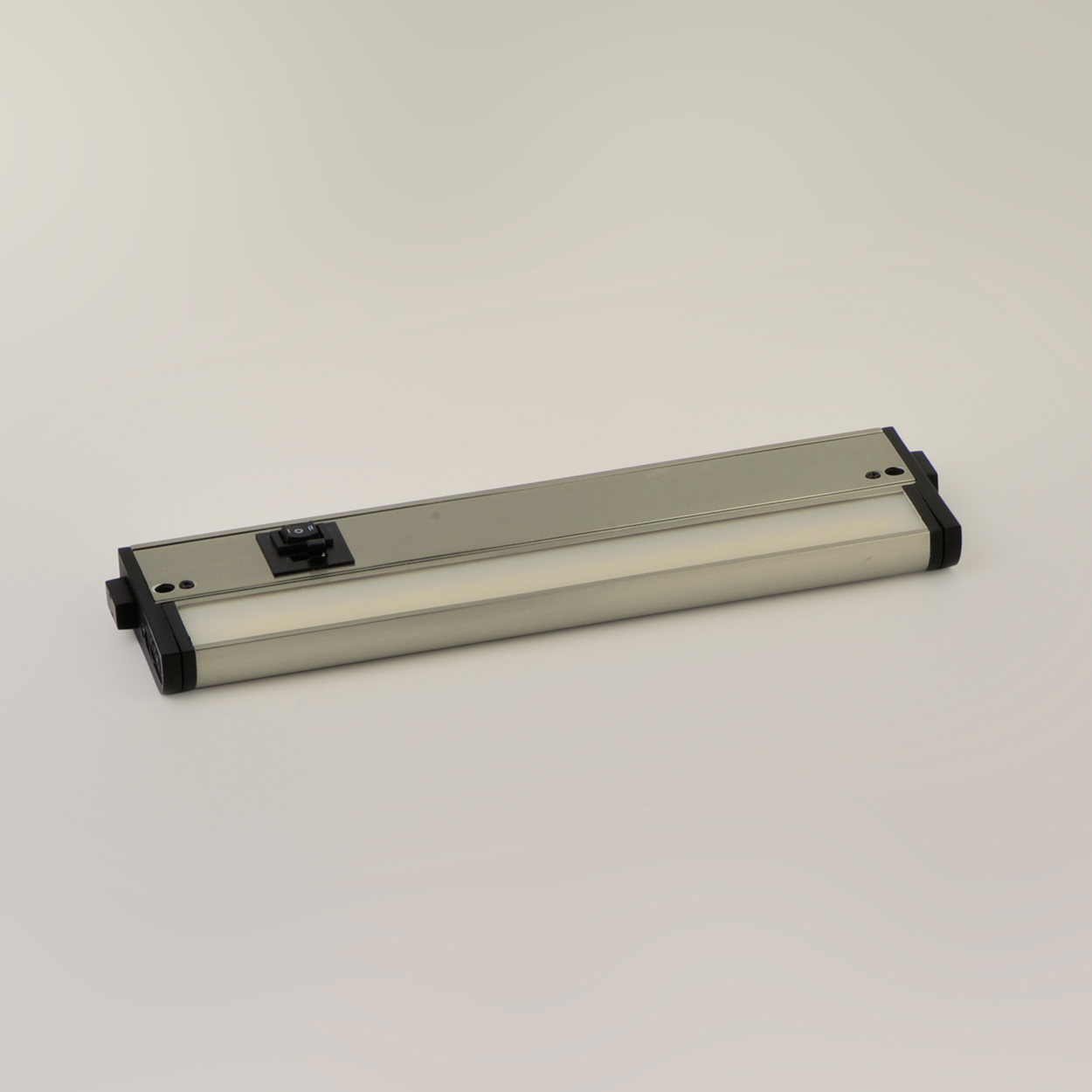

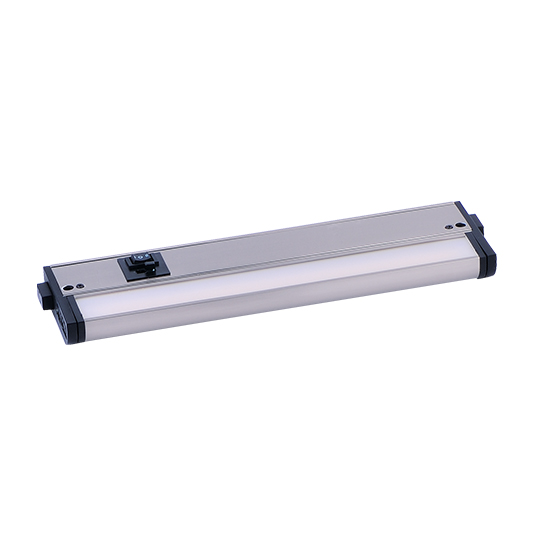

12" 2700-5000K LED Under Cabinet
CounterMax 5K
Model: SM869863SN
Sizing: L12" x W3.5" x H1"
Finish: Satin Nickel
Shade:
Price: $74.00


OPTIONS


CounterMax 5K
CounterMax 5K
SM869863SN
12" 2700-5000K LED Under Cabinet
CounterMax 5K
Lamping
Number of Bulbs: 1
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 6
Fixture Max Wattage: 6
Rated Life: 35,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 460 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 27-30-35-40-50 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: Y
Input Voltage: 120

Measurements
Width: 3.5"
Height: 1"
Length: 12"
Hanging Weight: 0.99 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.

Certifications/Other
UL Standard: Dry
Meet California Title 24 Requirements: JA8 Listed Click for Additional Information on Title 24



SM869863
CounterMax 5K
CounterMax 5K
CounterMax 5K 12" 2700-5000K LED Under Cabinet
CounterMax 5K 12" 2700-5000K LED Under Cabinet
CounterMax 5K 12" 2700-5000K LED Under Cabinet
CounterMax 5K


Downloads
Assembly Insturctions - English DOWNLOAD
Specification Sheet DOWNLOAD
IES Photometric DOWNLOAD
Product Image
Infograph Sheet Download Web
Download Rep
Convert Brochure
Diverse Brochure
Parts and Accessories
Schematic Diagram
