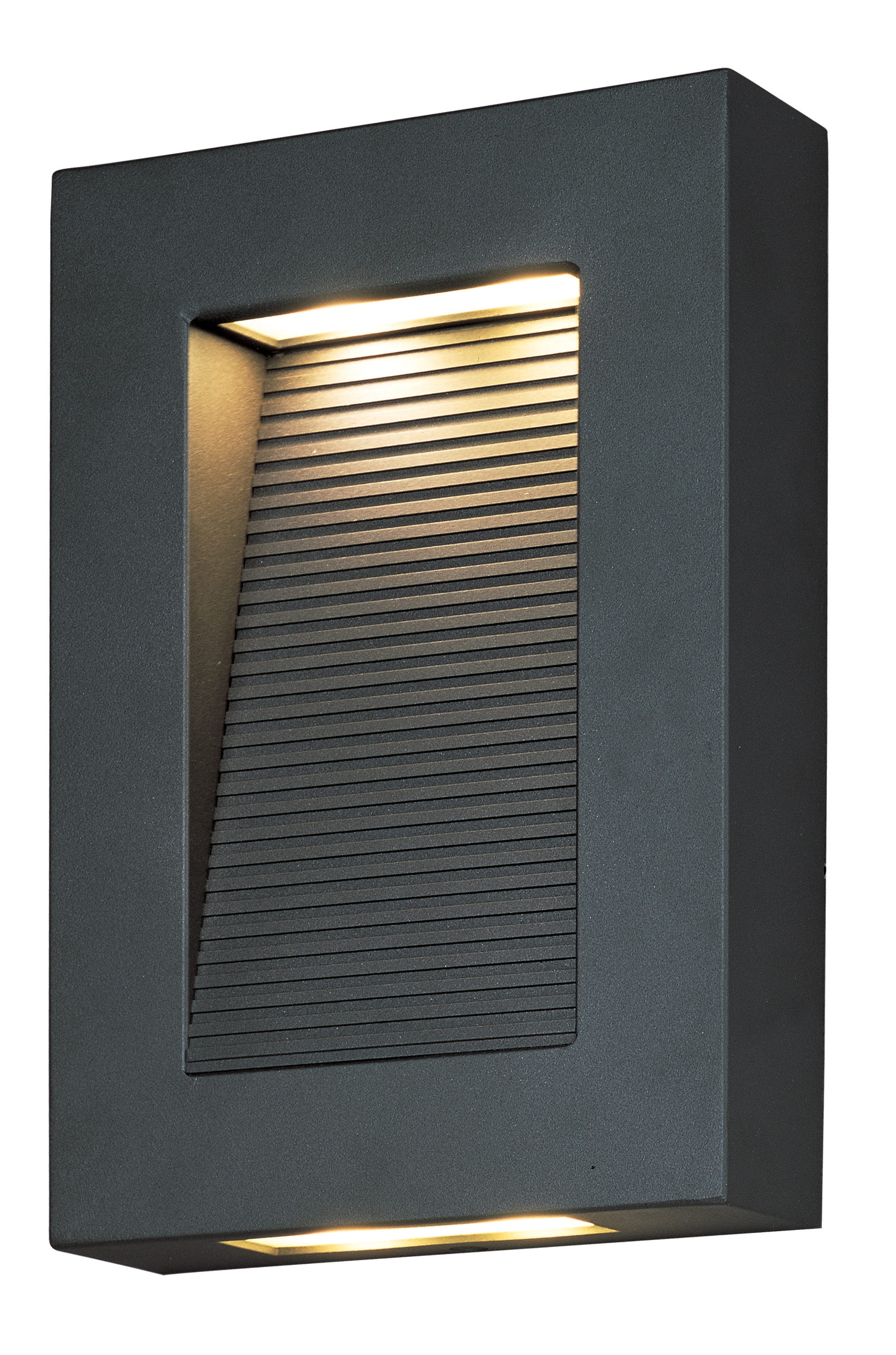

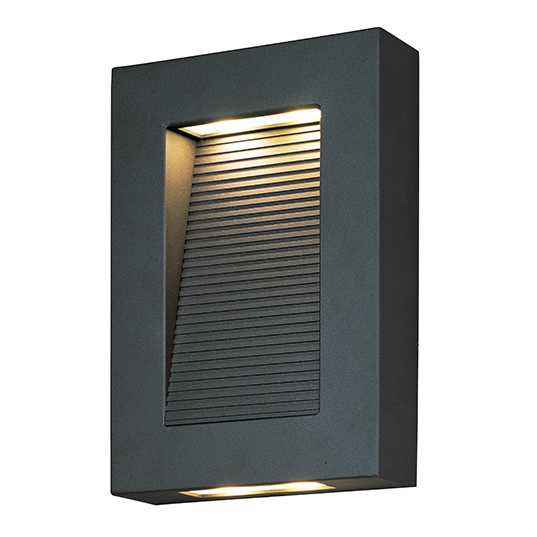

Avenue LED
Outdoor Wall Lantern
Avenue LED
Model: SM564350ABZ
Sizing: W7" x H10"
Finish: Architectural Bronze
Shade:
Price: $198.00

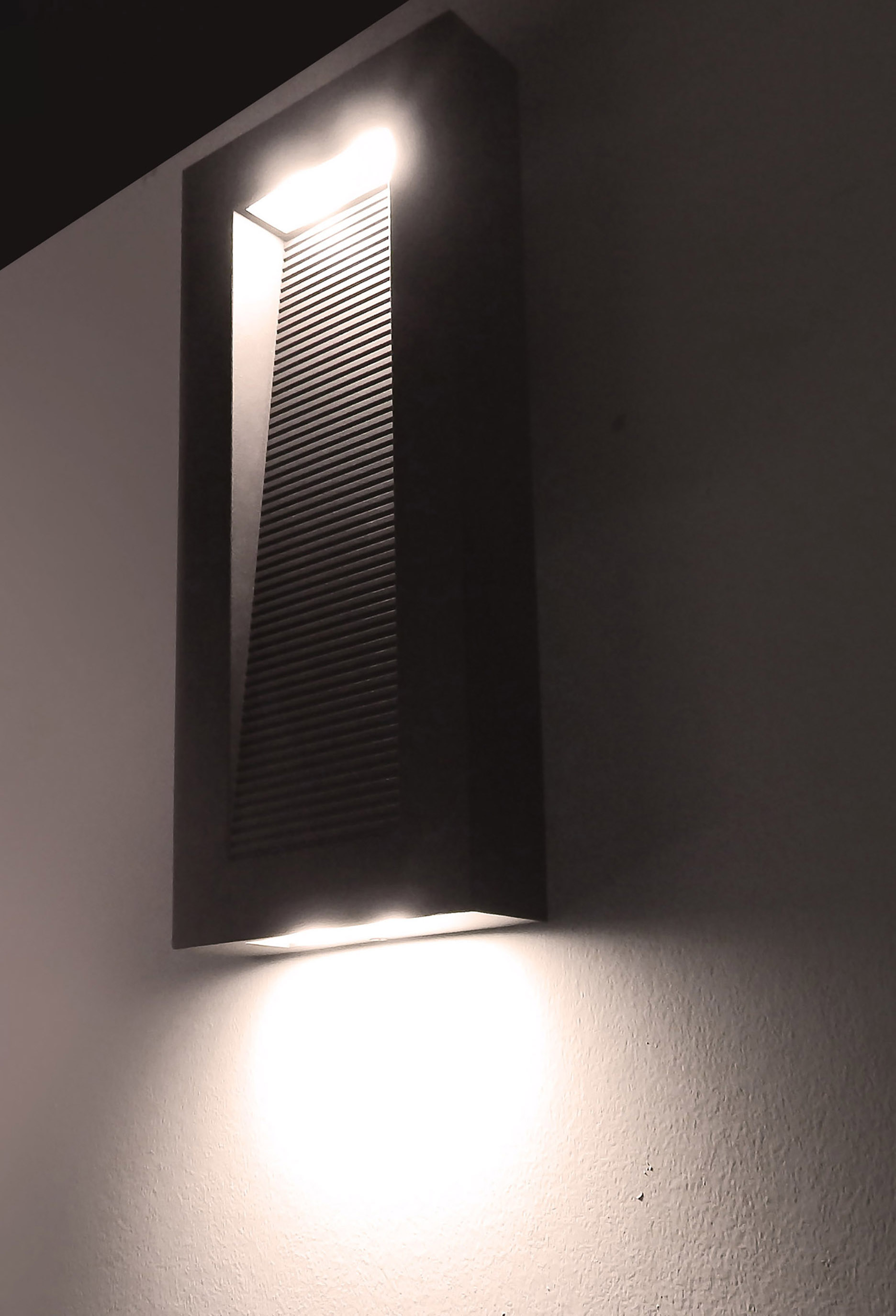

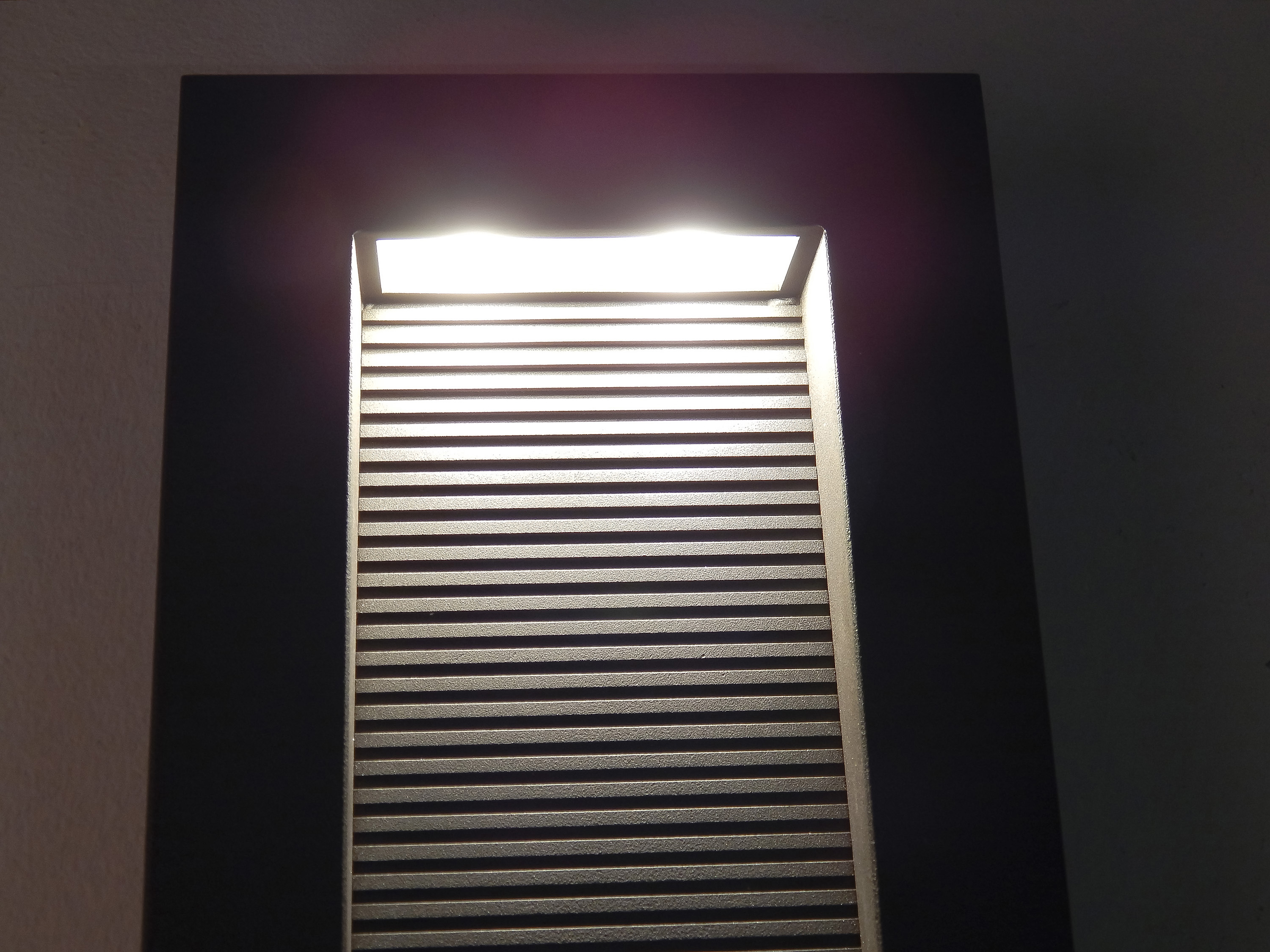

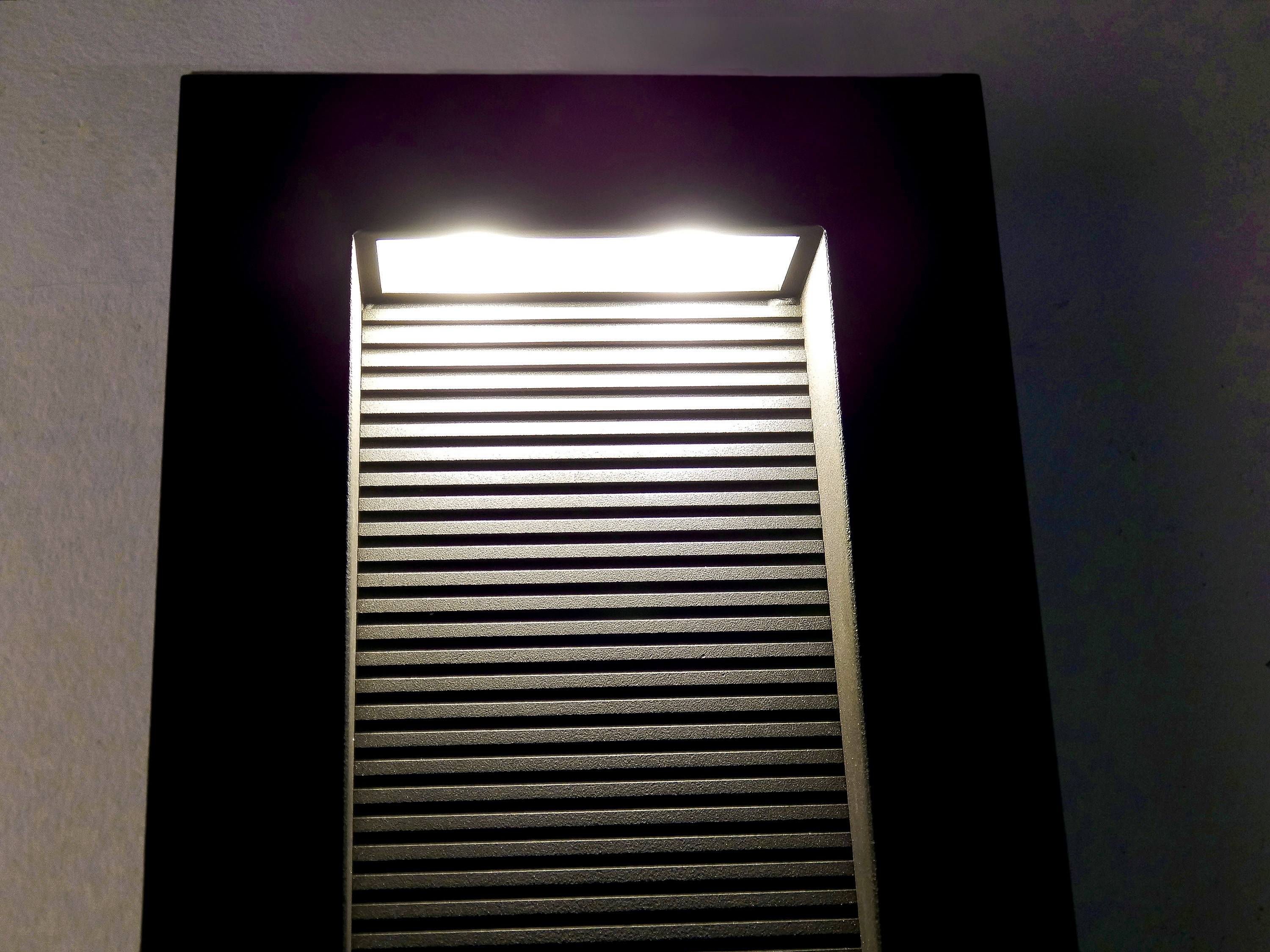

This great architectural outdoor design provides illumination from two places. A slash of light washes down the grated diffuser and out away from the wall while additional light is directed out the bottom straight down that washes the wall and illuminates the walkway below. Available In three sizes and finished in Architectural Bronze.


OPTIONS


Avenue LED
SM564350ABZ
Outdoor Wall Lantern
Avenue LED
Lamping
Number of Bulbs: 2

Light Type: LED

Bulb Type: PCB Integrated
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 8

Fixture Max Wattage: 16

Install Up/Down: Down

Delivered Lumens: 390
A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K
This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated

CRI: 90+

Dimmable: Triac CL

Input Voltage: 120

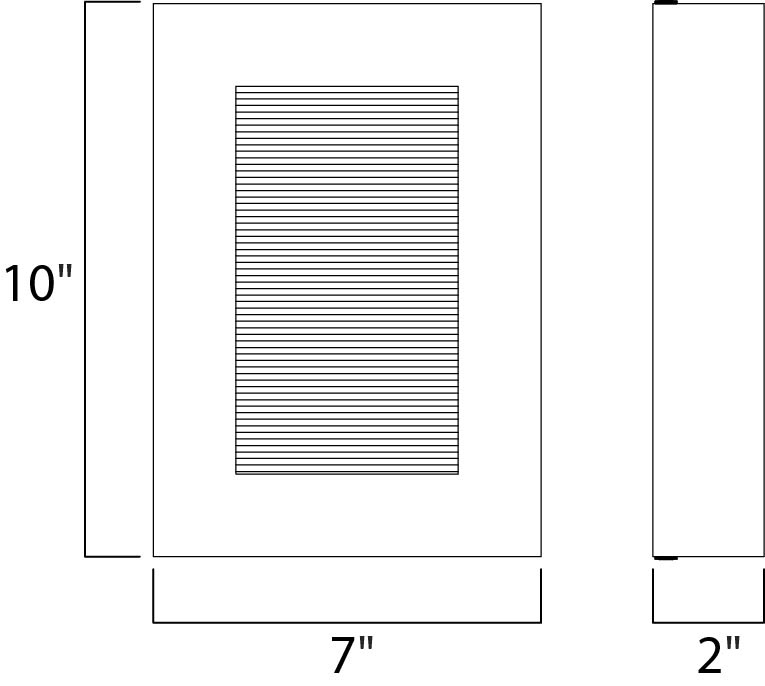

Measurements
Width: 7"

Height: 10"

Extension: 2"

HCO: 5"

BP Width: 7"

BP Height: 10"

Hanging Weight: 3.96 lb.

UPS Shippable: Yes
Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.

Certifications/Other
UL Standard: Wet

ADA Compliant: Yes
Click for Additional Information on ADA
Dark Sky: Yes

Energy Star: No
Click for Additional Information on ENERGY STAR
Meet California Title 24 Requirements: For Outdoor
Click for Additional Information on Title 24



SM564350
Avenue LED
Avenue LED
Avenue LED Outdoor Wall Lantern
Avenue LED Outdoor Wall Lantern
Avenue LED Outdoor Wall Lantern
Avenue LED


Downloads
Assembly Insturctions - English DOWNLOAD
Specification Sheet DOWNLOAD
IES Photometric DOWNLOAD
Product Image
Infograph Sheet Download Web
Download Rep
Convert Brochure
Diverse Brochure
Parts and Accessories
Schematic Diagram
