Home > Collections > Lightray LED > Lightray LED Outdoor Wall Sconce
Lightray LED
Outdoor Wall Sconce
Lightray LED
Model: SM866152ABZ
Sizing: W6.75" x H7"
Finish: Architectural Bronze
Shade:
Price: $138.00
Indirect exterior lighting not only provides illumination where you want but it also highlights the building structure for a beautiful architectural effect. Our collection of up and down lighting fixtures are available in both Architectural Bronze, Black, and Brushed Aluminum.


OPTIONS


Lightray LED
Lightray LED
SM866152ABZ
Outdoor Wall Sconce
Lightray LED
Lamping
Number of Bulbs: 2
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 6
Fixture Max Wattage: 12
Install Up/Down: Up/Down
Rated Lumens: 840 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 2700 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90+
Dimmable: No
Input Voltage: 120

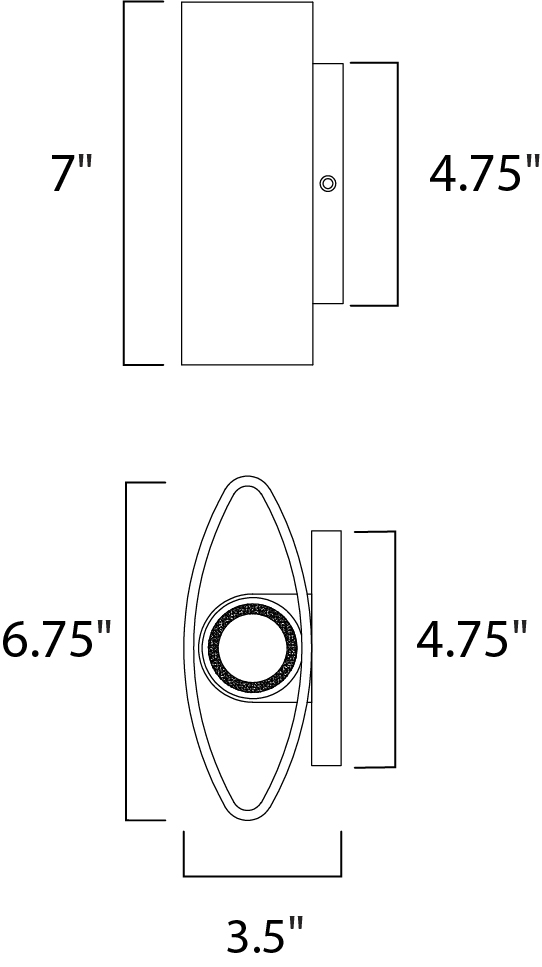

Measurements
Width: 6.75"
Height: 7"
Extension: 3.5"
HCO: 3.5"
BP Width: 4.75"
BP Height: 4.75"
Hanging Weight: 3.12 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.

Certifications/Other
UL Standard: Wet
ADA Compliant: Yes Click for Additional Information on ADA
Dark Sky: N
Energy Star: No Click for Additional Information on ENERGY STAR
Meet California Title 24 Requirements: For Outdoor Click for Additional Information on Title 24



SM866152
Lightray LED
Lightray LED
Lightray LED Outdoor Wall Sconce
Lightray LED Outdoor Wall Sconce
Lightray LED Outdoor Wall Sconce
Lightray LED Outdoor Wall Sconce
Lightray LED Outdoor Wall Sconce
Lightray LED


Downloads
Assembly Insturctions - English DOWNLOAD
Specification Sheet DOWNLOAD
IES Photometric DOWNLOAD
Product Image
Infograph Sheet Download Web
Download Rep
Convert Brochure
Diverse Brochure
Parts and Accessories
Schematic Diagram
